Guided start-up
Pump family, motor data, control mode, sensor and setpoint are configured through a dedicated start-up guide.
Grundfos pump rangesPump-specific external frequency converter

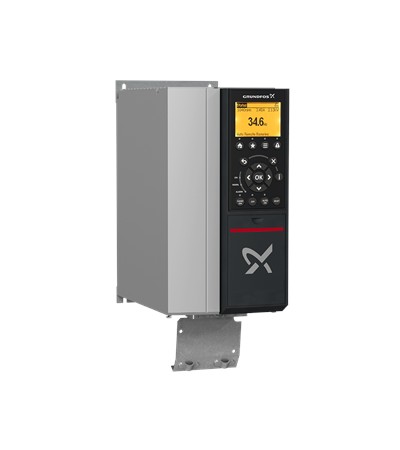

GRUNDFOS CUE
Variable-speed control for standard Grundfos pumps, with guided commissioning, pump functions and a complete range of power and enclosure variants.
- 1 x 200-240 V
- 3 x 380-500 V
- 0.55-250 kW standard
From a setpoint to stable pump operation
CUE combines a frequency converter with pump-specific setup and control functions. Add the appropriate sensor and output filter for the motor, cable and duty.
- SetpointPressure, level, flow, temperature or curve
- CUECalculates the required motor frequency
- Pump motorRuns only at the speed the system needs
- FeedbackSensor value closes the control loop
A drive that understands the application
Pump control modes
Constant pressure, proportional pressure, level, flow, temperature and constant-curve operation.
Integrated protection
Motor and process monitoring includes overload, underload, dry running and operating-limit supervision where configured.
System communication
GENIbus plus optional communication interfaces support supervision and integration into external control systems.
Flexible I/O
Analogue and digital inputs, analogue output and programmable relays connect sensors, setpoints and external commands.
Motor output filters
dU/dt or sine-wave filters are selected according to motor type, supply voltage and motor-cable length.
CUE
Supply and power ranges
- Single phase
- 1 x 200-240 V · 1.1-7.5 kW
- Three phase low voltage
- 3 x 200-240 V · 0.75-45 kW
- Three phase standard
- 3 x 380-500 V · 0.55-250 kW
- Three phase 525-600 V
- 0.75-90 kW
- Three phase 525-690 V
- 11-250 kW
- Enclosures
- IP20/21 and IP54/55, depending on size
CUE is not a solar-input drive. It is supplied from the stated AC mains range. For direct solar pumping, use an architecture specifically designed for PV input, such as Grundfos RSI where applicable.
One platform across borehole, boosting and process pumps
SP and SPE borehole systems
Speed control for water supply and irrigation. SPE requires a compatible CUE architecture for its permanent-magnet motor.
View SP / SPE
CR vertical multistage pumps
Variable-speed pressure, transfer and industrial water duties using a standard motor and external drive.
View CR
Other compatible pump families
NB/NBG, NK/NKG, TP, BM and other families listed in the current Grundfos documentation.
Grundfos rangesCurrent 3 x 380-500 V CUE article codes
Compare standard and STO variants across the available power and enclosure classes.
| Power | Standard IP20/21 | Standard IP54/55 | STO IP20/21 | STO IP54/55 |
|---|---|---|---|---|
| 0.55 kW | 99616707 | 99616756 | 99616731 | 99616781 |
| 0.75 kW | 99616708 | 99616757 | 99616733 | 99616782 |
| 1.1 kW | 99616709 | 99616758 | 99616734 | 99616783 |
| 1.5 kW | 99616710 | 99616759 | 99616735 | 99616784 |
| 2.2 kW | 99616711 | 99616760 | 99616736 | 99616785 |
| 3 kW | 99616712 | 99616761 | 99616737 | 99616786 |
| 4 kW | 99616713 | 99616762 | 99616738 | 99616787 |
| 5.5 kW | 99616714 | 99616763 | 99616739 | 99616788 |
| 7.5 kW | 99616715 | 99616764 | 99616740 | 99616789 |
| 11 kW | 99616716 | 99616765 | 99616741 | 99616790 |
| 15 kW | 99616717 | 99616766 | 99616742 | 99616791 |
| 18.5 kW | 99616718 | 99616767 | 99616743 | 99616792 |
| 22 kW | 99616719 | 99616769 | 99616744 | 99616793 |
| 30 kW | 99616720 | 99616770 | 99616745 | 99616794 |
| 37 kW | 99616721 | 99616771 | 99616746 | 99616795 |
| 45 kW | 99616722 | 99616772 | 99616747 | 99616796 |
| 55 kW | 99616723 | 99616773 | 99616748 | 99616797 |
| 75 kW | 99616724 | 99616774 | 99616749 | 99616798 |
| 90 kW | 99616725 | 99616775 | 99616750 | 99616799 |
| 110 kW | 99616726 | 99616776 | 99616751 | 99616800 |
| 132 kW | 99616727 | 99616777 | 99616752 | 99616801 |
| 160 kW | 99616728 | 99616778 | 99616753 | 99616802 |
| 200 kW | 99616729 | 99616779 | 99616754 | 99616803 |
| 250 kW | 99616730 | 99616780 | 99616755 | 99616804 |
| 355 kW | 93021201 | 93021211 | 93021206 | 93021216 |
| 400 kW | 93021202 | 93021212 | 93021207 | 93021217 |
| 450 kW | 93021203 | 93021213 | 93021208 | 93021218 |
| 500 kW | 93021204 | 93021214 | 93021209 | 93021219 |
| 560 kW | 93021205 | 93021215 | 93021210 | 93021220 |
Single-phase 1 x 200-240 V
| Power | Enclosure | Model | Article code |
|---|---|---|---|
| 1.1 kW | IP20 | CUE 1x200-240 V | 99616601 |
| 1.5 kW | IP21 | CUE 1x200-240 V | 99616602 |
| 2.2 kW | IP21 | CUE 1x200-240 V | 99616613 |
| 3.0 kW | IP21 | CUE 1x200-240 V | 99616614 |
| 3.7 kW | IP21 | CUE 1x200-240 V | 99616615 |
| 1.1 kW | IP55 | CUE 1x200-240 V | 99616618 |
| 1.5 kW | IP55 | CUE 1x200-240 V | 99616619 |
| 2.2 kW | IP55 | CUE 1x200-240 V | 99616620 |
| 3.0 kW | IP55 | CUE 1x200-240 V | 99616621 |
| 3.7 kW | IP55 | CUE 1x200-240 V | 99616622 |
| 5.5 kW | IP55 | CUE 1x200-240 V | 99616623 |
| 7.5 kW | IP55 | CUE 1x200-240 V | 99616624 |
Selection, installation and commissioning sources
Worldwide B2B export
Request a quotationNeed the right CUE, filter and pump combination?
Send the pump model, motor nameplate, supply voltage, motor-cable length, required control mode and sensor. We will verify the architecture before quotation.
Technical sources: Grundfos CUE data booklet · Grundfos frequency-converter overview.
