Grundfos SP E submersible pumps - IPM variable speed
The Grundfos SP E range gathers submersible pumps fitted with an internal permanent-magnet (IPM) motor and variable speed. The MS6000P motor, driven by a frequency converter (CUE) or by a solar drive (RSI), delivers 8 to 10 % higher efficiency than an equivalent asynchronous motor.

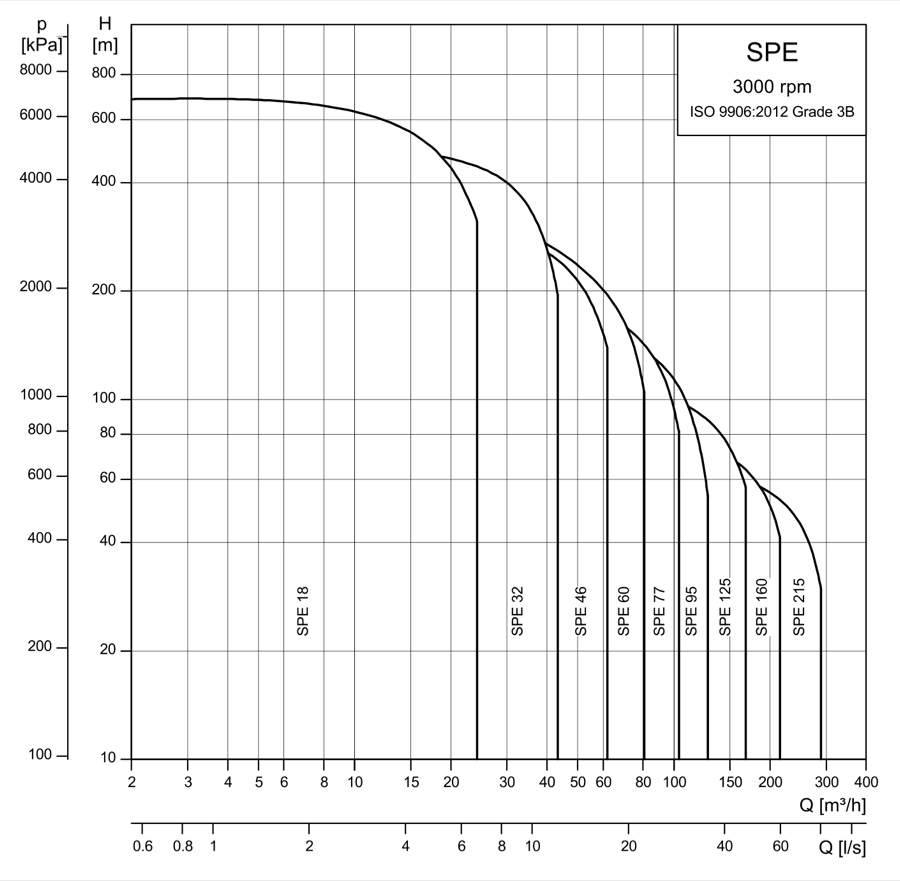

As an official Grundfos distributor, SINES Export is your B2B wholesaler and exporter for the SP E range worldwide. The range covers 9 sizes: SP E 18 to SP E 215, from 10 to 280 m³/h and up to 680 m of total head. Full stainless-steel construction for high resistance to corrosive and abrasive water.
Applications: drinking-water supply, agricultural and horticultural irrigation, groundwater lowering, pressure boosting and constant-pressure systems. Each model is available with several stage counts to match the duty point precisely.
Solar / off-grid pumping: coupled with a Grundfos RSI solar drive, the SP E pumps adapt their speed in real time to the available sunlight - no battery, no grid required. The ideal solution for irrigation, rural electrification and water supply in remote and isolated areas.
Max. TDH: 680 m - Max. flow rate: 22 m³/h
Max. TDH: 540 m - Max. flow rate: 40 m³/h
Max. TDH: 340 m - Max. flow rate: 55 m³/h
Max. TDH: 350 m - Max. flow rate: 80 m³/h
Max. TDH: 230 m - Max. flow rate: 90 m³/h
Max. TDH: 200 m - Max. flow rate: 120 m³/h
Max. TDH: 120 m - Max. flow rate: 160 m³/h
Max. TDH: 100 m - Max. flow rate: 200 m³/h
Max. TDH: 80 m - Max. flow rate: 280 m³/h
