SINES - Grundfos SPE 18 - submersible pump


GRUNDFOS SPE 18


  • Categorie : Grundfos SPE submersible pumps

Max. TDH: 680m - Max. flow rate: 22m3/h - IPM motor 6"

The SPE 18 is a Grundfos 6" submersible pump with an internal permanent-magnet (IPM) motor and variable speed. Pump efficiency 78% (MEI ≥ 0.70), full stainless-steel construction. Driven by a CUE variable frequency drive (mains) or by the RSI solar inverter. Connection Rp 2½ (R 3).


SPE 18-6

4.0 kW
47.8 kg

 SPE 18-8

5.5 kW
50.5 kg

 SPE 18-12

7.5 kW
56.0 kg
SPE 18-17

11 kW
76.2 kg

 SPE 18-20

13 kW
80.4 kg

 SPE 18-24

15 kW
87.0 kg
SPE 18-29

18.5 kW
93.9 kg

 SPE 18-35

22 kW
117.1 kg

 SPE 18-41

26 kW
156.3 kg
SPE 18-48

30 kW
168.0 kg

 SPE 18-58

37 kW
201.8 kg


Solar pumping systems for reliable Water Supply in Africa

The Grundfos SPE range comprises submersible pumps with an internal permanent-magnet (IPM) motor and variable speed. The SPE 18 covers flow rates up to 22 m3/h and a TDH up to 680 m, with a pump efficiency of 78%.

The MS6000P permanent-magnet motor delivers 8 to 10% higher efficiency than an equivalent asynchronous motor, for reduced energy consumption and a longer service life. The construction is entirely stainless steel (EN 1.4301 as standard, EN 1.4401 or EN 1.4539 as an option for corrosive environments).

The IPM motor is synchronous: it requires a variable frequency drive. The SPE 18 operates with the Grundfos CUE drive on a three-phase mains supply, or with a solar inverter for autonomous photovoltaic pumping.

Applications: drinking-water supply, agricultural and horticultural irrigation, groundwater lowering, boosting and constant pressure. Connection Rp 2½ (R 3), diameter 6".

SINES Export is a distributor, wholesaler and exporter specialising in SPE submersible pumps for the B2B market worldwide. Our teams support installers, resellers and distributors for export to Africa, the Maghreb, the Middle East and beyond.

Solar pumping SPE + RSI : paired with the Grundfos RSI solar inverter, the SPE 18 adjusts its speed in real time to the available sunlight, with no battery and no grid. Learn more about the RSI →

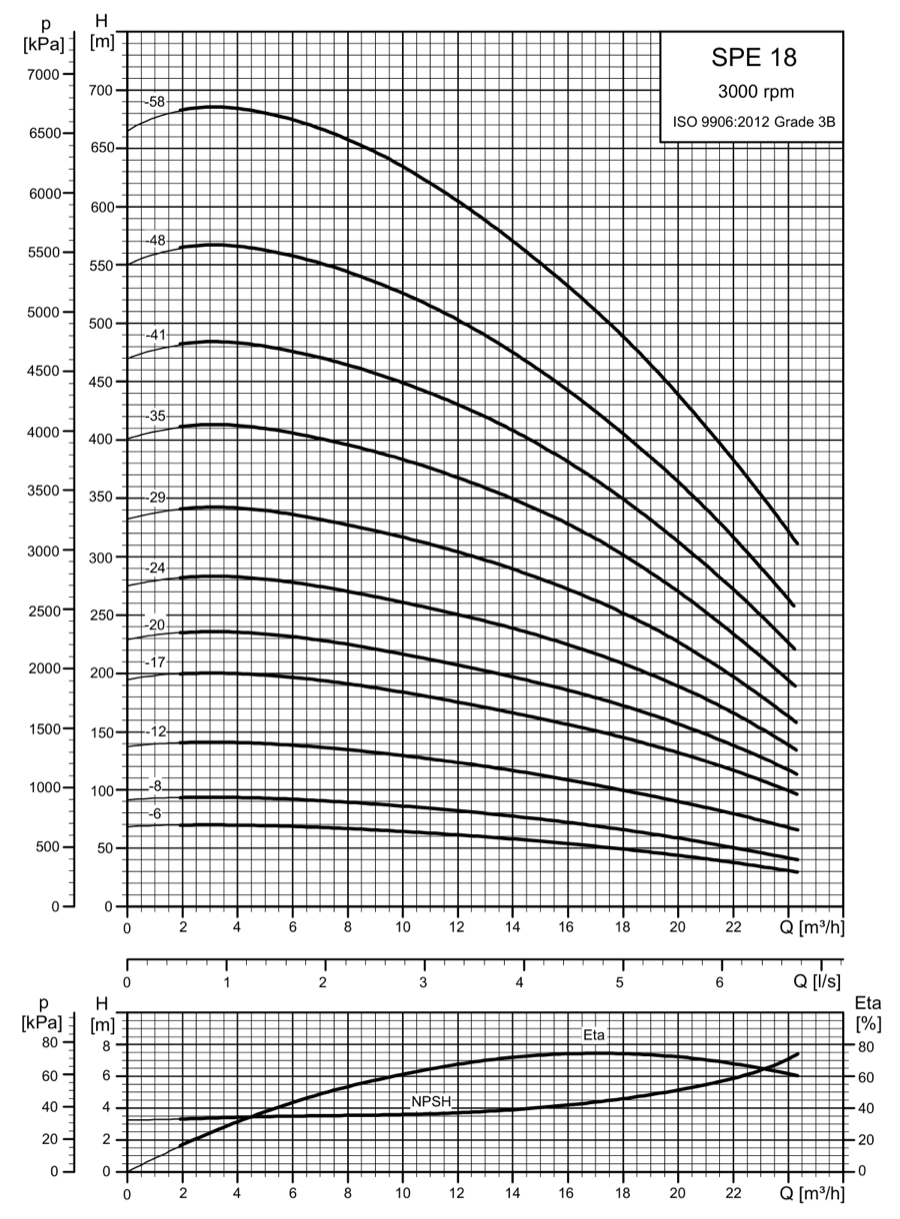

SINES - Grundfos SPE 18 - performance curves 3000 rpm

SPE 18 performance curves — 3000 rpm, ISO 9906:2012 Grade 3B (source: Grundfos data booklet). Max. TDH: 680 m — max. flow rate: 22 m3/h.



Open the Grundfos Product Center →

SINES - Grundfos SPE - range performance envelope (3000 rpm)

Performance envelope of the Grundfos SPE submersible pump range — 3000 rpm, ISO 9906:2012 Grade 3B - Source: http://www.grundfos.com/




References & article codes

Grundfos SPE 18 range — three-phase submersible pumps 3 x 380 V, 50 Hz, with MS6000P permanent-magnet submersible motor — to be combined with a Grundfos CUE variable frequency drive. Price and availability on request.

Article code Designation P2 [kW] In [A] Motor type
92940983SPE 18-649.6MS6000P
92940984SPE 18-85.512.6MS6000P
92903143SPE 18-127.516.6MS6000P
92940985SPE 18-171125MS6000P
92940986SPE 18-201329.2MS6000P
92940987SPE 18-241533.4MS6000P
92940988SPE 18-2918.540.6MS6000P
92940989SPE 18-352246.2MS6000P
SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: http://www.grundfos.com/
