The Grundfos SPE range gathers submersible pumps fitted with an internal permanent-magnet (IPM) motor and variable speed. The SPE 215 covers a flow rate up to 280 m³/h and a head up to 80 m, with a pump efficiency of 83%.
The MS6000P permanent-magnet motor delivers 8 to 10% extra efficiency compared to an equivalent asynchronous motor, for reduced energy consumption and a longer service life. Construction is fully stainless steel (EN 1.4301 standard, EN 1.4401 or EN 1.4539 as an option for corrosive environments).
The IPM motor is synchronous: it requires a variable-frequency drive. The SPE 215 operates with the Grundfos CUE drive on a three-phase mains supply, or with a solar inverter for autonomous photovoltaic pumping.
Applications: drinking-water supply, agricultural and horticultural irrigation, groundwater lowering, boosting and constant-pressure systems. Rp 6 connection, 10" diameter.
SINES Export is the wholesaler, distributor and exporter specialised in SPE submersible pumps for worldwide markets. Our teams support installers, resellers and distributors for export to Africa, the Maghreb and the Middle East.
SPE + RSI solar pumping: paired with the Grundfos RSI solar inverter, the SPE 215 adapts its speed in real time to the available sunlight, with no battery and no grid. Our solar pump inverters GRUNDFOS RSI, ABB ACS355 and SCHNEIDER ATV312 pair easily with the SPE range, creating a solar powered system with maximum flexibility.

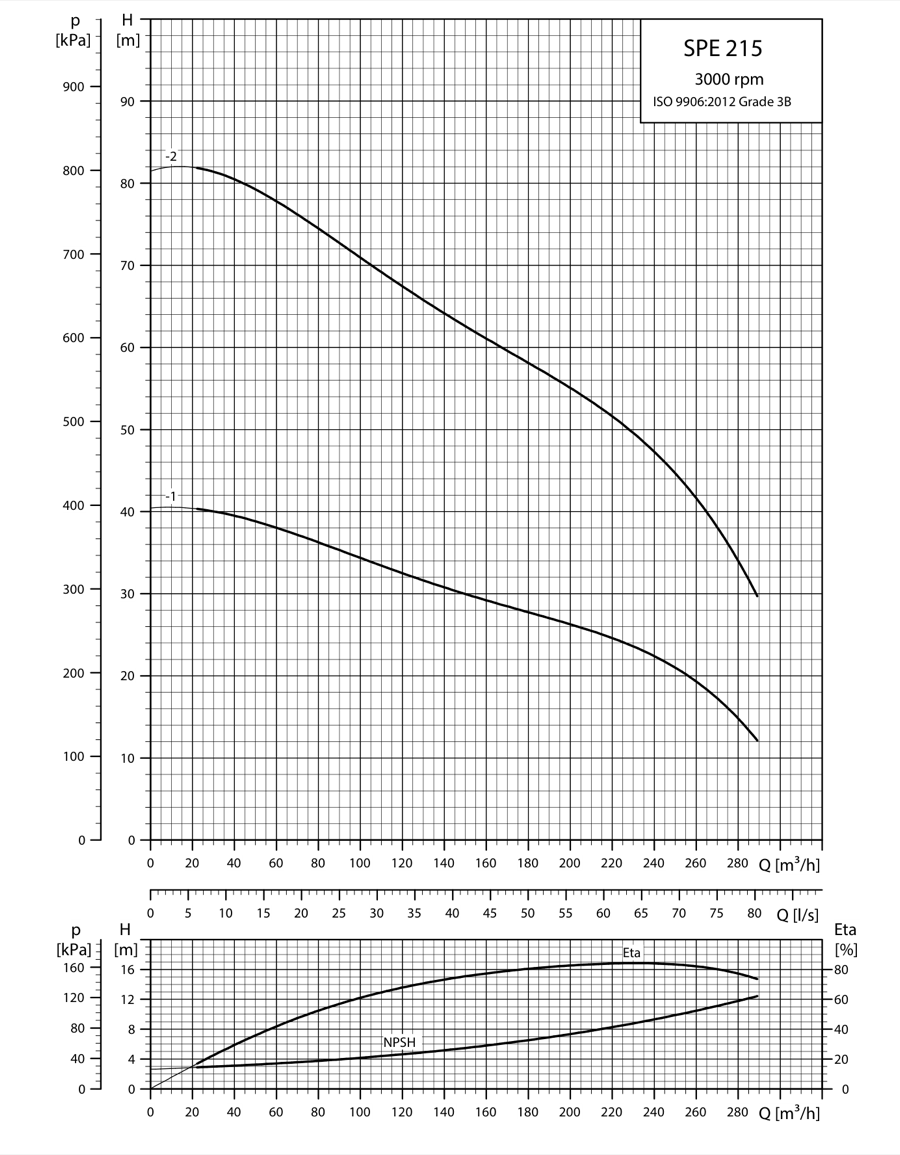

Performance curves of the SPE 215 — 3000 rpm, ISO 9906:2012 Grade 3B (source: Grundfos data booklet). Max. TDH: 80 m — max. flow rate: 280 m³/h.
Open the Grundfos Product Center →
Performance range - GRUNDFOS SPE Submersible pumps — 3000 rpm, ISO 9906:2012 Grade 3B - Source: https://www.grundfos.com/
