SINES Export - Grundfos SPE 60 - submersible pump


GRUNDFOS SPE 60


  • Category: Grundfos SPE submersible pumps

Max. TDH: 350 m - Max. flow rate: 80 m³/h - IPM motor 6"

The SPE 60 is a Grundfos 6" submersible pump with an internal permanent-magnet (IPM) motor and variable speed. Pump efficiency 77% (MEI ≥ 0.40), full stainless-steel construction. Driven by a CUE frequency converter (mains) or a solar pump inverter (RSI). Discharge connection Rp 3 / Rp 4 (R 4).


SPE 60-3

7.5 kW
45.4 kg

 SPE 60-5

11 kW
63.2 kg

 SPE 60-8

18.5 kW
70.4 kg
SPE 60-11

22 kW
92.6 kg

 SPE 60-15

26 kW
102.2 kg

 SPE 60-19

37 kW
126.8 kg
SPE 60-23

45 kW
136.4 kg


Worldwide export wholesaler of solar & storage

The Grundfos SPE range gathers submersible pumps with an internal permanent-magnet (IPM) motor and variable speed. The SPE 60 covers a flow rate up to 80 m³/h and a head (TDH) up to 350 m, with a pump efficiency of 77%.

The MS6000P permanent-magnet motor delivers 8 to 10% higher efficiency than an equivalent asynchronous motor, for reduced energy consumption and a longer service life. The construction is entirely in stainless steel (EN 1.4301 standard, EN 1.4401 or EN 1.4539 optional for corrosive environments).

The IPM motor is synchronous: it requires a frequency converter. The SPE 60 operates with the Grundfos CUE frequency converter on a three-phase mains supply, or with a solar pump inverter for stand-alone photovoltaic pumping.

Applications: drinking-water supply, agricultural and horticultural irrigation, groundwater lowering, boosting and constant-pressure systems. Connection Rp 3 / Rp 4 (R 4), diameter 6".

SINES Export is a distributor, wholesaler and exporter specialising in Grundfos SPE submersible pumps. Our teams support installers, resellers and distributors worldwide (Africa, Maghreb, Middle East).

Solar pumping SPE + RSI: paired with the Grundfos RSI solar pump inverter, the SPE 60 adapts its speed in real time to the available solar irradiance, with no battery and no grid. Ideal for solar / off-grid / rural electrification projects.

You can switch the solar inverter to mains power or generator if required, because our drives are compatible to both AC and DC power input without the need to change any parameter settings.

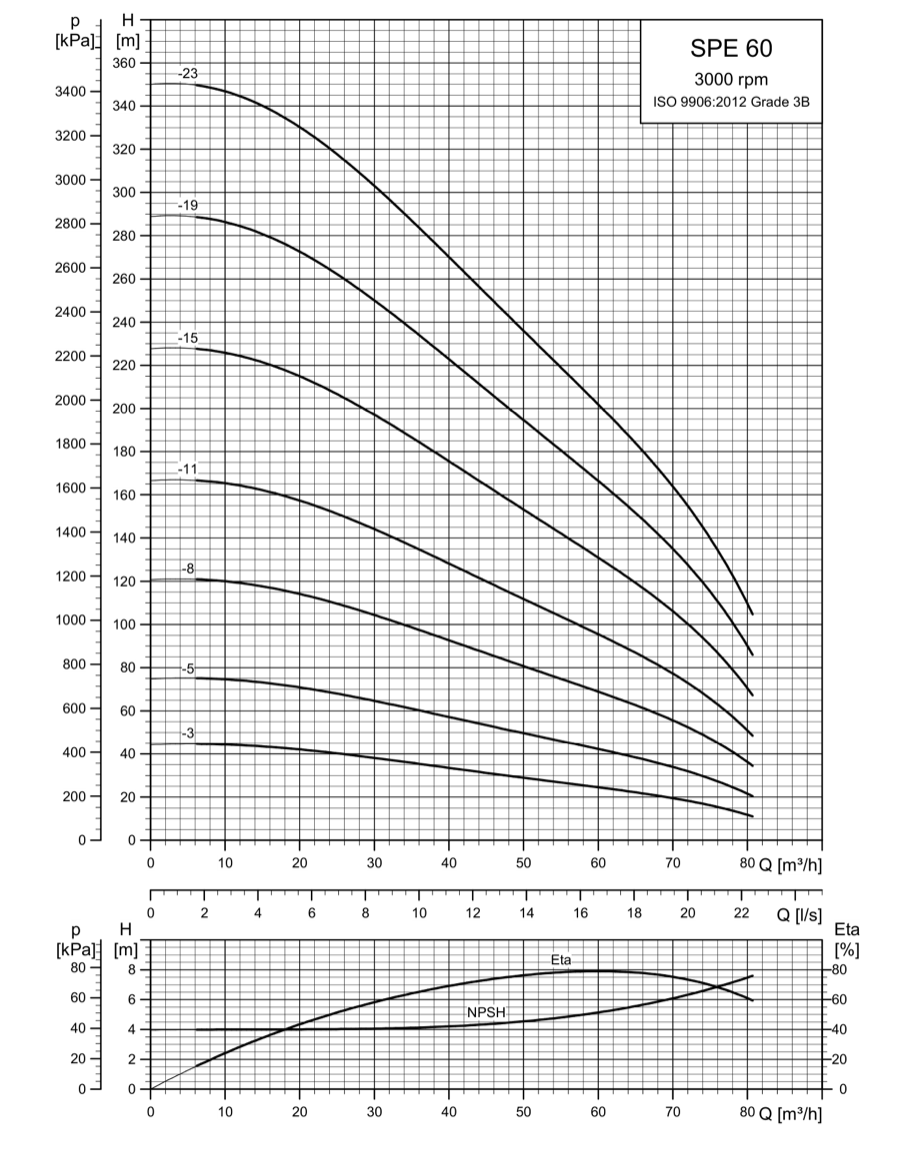

SINES - Grundfos SPE 60 - performance curves 3000 rpm

Performance curves of the SPE 60, 3000 rpm, ISO 9906:2012 Grade 3B (source: Grundfos data booklet). Max. TDH: 350 m, max. flow rate: 80 m³/h.

Open the Grundfos Product Center →

SINES - Grundfos SPE - range performance ranges (3000 rpm)

Performance ranges of the Grundfos SPE submersible pump range, 3000 rpm, ISO 9906:2012 Grade 3B - Source: https://www.grundfos.com/




References & article codes

Grundfos SPE 60 range, three-phase submersible pumps 3 x 380 V, 50 Hz, with an MS6000P permanent-magnet submersible motor, to be paired with a Grundfos CUE frequency converter. Price and availability on request.

Article code Designation P2 [kW] In [A] Motor type
99890611SPE 60-3, Rp 37.516.6MS6000P
99890617SPE 60-3, Rp 47.516.6MS6000P
99890627SPE 60-5, Rp 31125MS6000P
99890628SPE 60-5, Rp 41125MS6000P
99890612SPE 60-8, Rp 318.540.6MS6000P
99890618SPE 60-8, Rp 418.540.6MS6000P
99890613SPE 60-11, Rp 32246.2MS6000P
99890619SPE 60-11, Rp 42246.2MS6000P
99890614SPE 60-15, Rp 33061.8MS6000P
99890620SPE 60-15, Rp 43061.8MS6000P
99890615SPE 60-19, Rp 33785.6MS6000P
99890621SPE 60-19, Rp 43785.6MS6000P
99890616SPE 60-23, Rp 345103MS6000P
99890622SPE 60-23, Rp 445103MS6000P
SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: http://www.grundfos.com/
