GRUNDFOS SPE 125

Categorie : Grundfos SPE submersible pumps

Max. TDH: 120m - Max. flow rate: 160m3/h - IPM 10" motor

The SPE 125 is a Grundfos 10" submersible pump with an internal permanent-magnet (IPM) motor and variable speed. Pump efficiency 79%, full stainless-steel construction. Driven by a CUE variable-frequency drive (mains) or by the RSI solar inverter for off-grid pumping. Rp 6 connection.

SPE 125-1 13 kW 79.2 kg	SPE 125-2 22 kW 100.2 kg	SPE 125-3 37 kW 121.2 kg
SPE 125-4 45 kW 127.2 kg
Solar pumping systems for reliable Water Supply in Africa

The Grundfos SPE range gathers submersible pumps fitted with an internal permanent-magnet (IPM) motor and variable speed. The SPE 125 covers a flow rate up to 160 m³/h and a head up to 120 m, with a pump efficiency of 79%.

The MS6000P permanent-magnet motor delivers 8 to 10% extra efficiency compared to an equivalent asynchronous motor, for reduced energy consumption and a longer service life. Construction is fully stainless steel (EN 1.4301 standard, EN 1.4401 or EN 1.4539 as an option for corrosive environments).

The IPM motor is synchronous: it requires a variable-frequency drive. The SPE 125 operates with the Grundfos CUE drive on a three-phase mains supply, or with a solar inverter for autonomous photovoltaic pumping.

Applications: drinking-water supply, agricultural and horticultural irrigation, groundwater lowering, boosting and constant-pressure systems. Rp 6 connection, 10" diameter.

SINES Export is the wholesaler, distributor and exporter specialised in SPE submersible pumps for worldwide markets. Our teams support installers, resellers and distributors for export to Africa, the Maghreb and the Middle East.

SPE + RSI solar pumping: paired with the Grundfos RSI solar inverter, the SPE 125 adapts its speed in real time to the available sunlight, with no battery and no grid. Our solar pump inverters GRUNDFOS RSI, ABB ACS355 and SCHNEIDER ATV312 pair easily with the SPE range, creating a solar powered system with maximum flexibility.

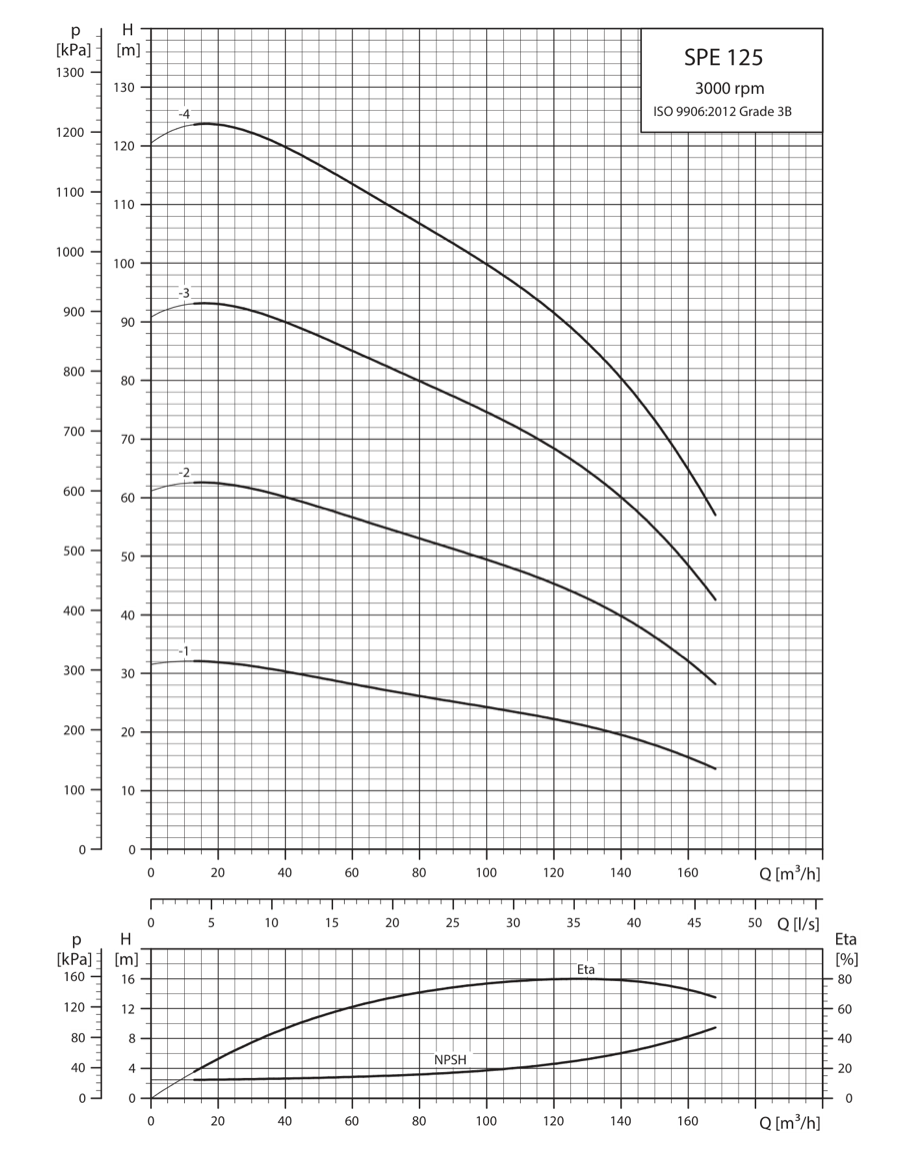

SINES - Grundfos SPE 125 - performance curves 3000 rpm

Performance curves of the SPE 125 — 3000 rpm, ISO 9906:2012 Grade 3B (source: Grundfos data booklet). Max. TDH: 120 m — max. flow rate: 160 m³/h.

Open the Grundfos Product Center →

SINES - Grundfos SPE - submersible pump range

Performance range - GRUNDFOS SPE Submersible pumps — 3000 rpm, ISO 9906:2012 Grade 3B - Source: https://www.grundfos.com/

References & article codes

Grundfos SPE 125 range — three-phase submersible pumps 3 x 380 V, 50 Hz, with permanent-magnet submersible motor MS6000P — to be paired with a Grundfos CUE variable-frequency drive. Price and availability on request.

Article code	Designation	P2 [kW]	In [A]	Motor type
99890648	SPE 125-1	13	29.2	MS6000P
99890649	SPE 125-2	22	46.2	MS6000P
99890650	SPE 125-3	37	85.6	MS6000P
99890651	SPE 125-4	45	103	MS6000P

SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: https://www.grundfos.com/
