SINES - Grundfos SPE 46 - submersible pump


GRUNDFOS SPE 46


  • Categorie : Grundfos SPE submersible pumps

Max. TDH: 340m - Max. flow rate: 55m3/h - IPM motor 6"

The SPE 46 is a Grundfos 6" submersible pump with an internal permanent-magnet (IPM) motor and variable speed. Pump efficiency 76% (MEI ≥ 0.40), full stainless-steel construction. Driven by a CUE variable frequency drive (mains) or by the RSI solar inverter. Connection Rp 3 / Rp 4 (R 4).


SPE 46-2

4.0 kW
43.0 kg

 SPE 46-4

7.5 kW
47.8 kg

 SPE 46-6

11 kW
65.6 kg
SPE 46-9

15 kW
72.8 kg

 SPE 46-11

18.5 kW
77.6 kg

 SPE 46-15

22 kW
102.2 kg
SPE 46-18

30 kW
109.4 kg

 SPE 46-22

37 kW
134.0 kg

 SPE 46-24

45 kW
138.8 kg
Solar pumping systems for reliable Water Supply in Africa

The Grundfos SPE range comprises submersible pumps with an internal permanent-magnet (IPM) motor and variable speed. The SPE 46 covers flow rates up to 55 m3/h and a TDH up to 340 m, with a pump efficiency of 76%.

The MS6000P permanent-magnet motor delivers 8 to 10% higher efficiency than an equivalent asynchronous motor, for reduced energy consumption and a longer service life. The construction is entirely stainless steel (EN 1.4301 as standard, EN 1.4401 or EN 1.4539 as an option for corrosive environments).

The IPM motor is synchronous: it requires a variable frequency drive. The SPE 46 operates with the Grundfos CUE drive on a three-phase mains supply, or with a solar inverter for autonomous photovoltaic pumping.

Applications: drinking-water supply, agricultural and horticultural irrigation, groundwater lowering, boosting and constant pressure. Connection Rp 3 / Rp 4 (R 4), diameter 6".

SINES Export is a distributor, wholesaler and exporter specialising in SPE submersible pumps for the B2B market worldwide. Our teams support installers, resellers and distributors for export to Africa, the Maghreb, the Middle East and beyond.

Solar pumping SPE + RSI : paired with the Grundfos RSI solar inverter, the SPE 46 adjusts its speed in real time to the available sunlight, with no battery and no grid. Learn more about the RSI →

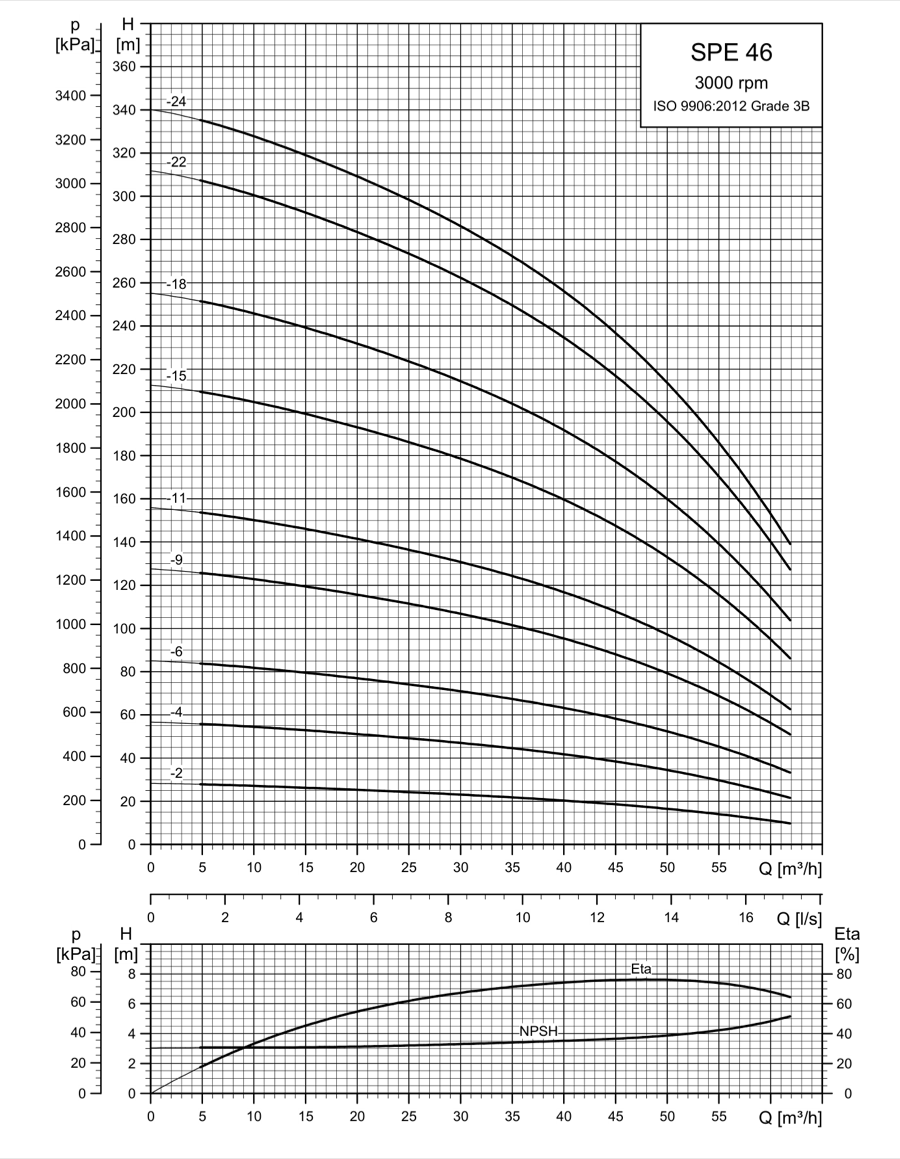

SINES - Grundfos SPE 46 - performance curves 3000 rpm

SPE 46 performance curves — 3000 rpm, ISO 9906:2012 Grade 3B (source: Grundfos data booklet). Max. TDH: 340 m — max. flow rate: 55 m3/h.



Open the Grundfos Product Center →

SINES - Grundfos SPE - range performance envelope (3000 rpm)

Performance envelope of the Grundfos SPE submersible pump range — 3000 rpm, ISO 9906:2012 Grade 3B - Source: http://www.grundfos.com/




References & article codes

Grundfos SPE 46 range — three-phase submersible pumps 3 x 380 V, 50 Hz, with MS6000P permanent-magnet submersible motor — to be combined with a Grundfos CUE variable frequency drive. Price and availability on request.

Article code Designation P2 [kW] In [A] Motor type
99890602SPE 46-2 — Rp 449.6MS6000P
99890594SPE 46-4 — Rp 37.516.6MS6000P
99890603SPE 46-4 — Rp 47.516.6MS6000P
99890595SPE 46-6 — Rp 31125MS6000P
99890604SPE 46-6 — Rp 41125MS6000P
99890596SPE 46-9 — Rp 31533.4MS6000P
99890605SPE 46-9 — Rp 41533.4MS6000P
99890597SPE 46-11 — Rp 318.540.6MS6000P
99890606SPE 46-11 — Rp 418.540.6MS6000P
99890598SPE 46-15 — Rp 32654MS6000P
99890607SPE 46-15 — Rp 42654MS6000P
99890599SPE 46-18 — Rp 33061.8MS6000P
99890608SPE 46-18 — Rp 43061.8MS6000P
99890600SPE 46-22 — Rp 33785.6MS6000P
99890609SPE 46-22 — Rp 43785.6MS6000P
99890601SPE 46-24 — Rp 345103MS6000P
99890610SPE 46-24 — Rp 445103MS6000P
SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: http://www.grundfos.com/
