SINES - Grundfos SP - submersible pump


GRUNDFOS SP-60


  • Category: Submersible pumps

Max. TDH: 297 m - Max. flow rate: 80 m³/h

The Grundfos SP 60 is a 6-inch multistage submersible pump for boreholes, water supply and irrigation. This standard version is made from corrosion-resistant AISI 304 stainless steel and is supplied for three-phase 50 Hz operation. Discharge connection: Rp 4.

The maximum TDH values below are read at Q=0 from the official Grundfos 50 Hz overview curves and rounded to the nearest metre. Validate the required duty point against the full performance curve before final pump selection.


SP 60-1 A

Max. TDH at Q=0: 11 m
Max. flow rate: 80 m³/h

 SP 60-1

Max. TDH at Q=0: 13 m
Max. flow rate: 80 m³/h

 SP 60-2 B

Max. TDH at Q=0: 21 m
Max. flow rate: 80 m³/h
SP 60-2

Max. TDH at Q=0: 27 m
Max. flow rate: 80 m³/h

 SP 60-3

Max. TDH at Q=0: 41 m
Max. flow rate: 80 m³/h

 SP 60-4

Max. TDH at Q=0: 55 m
Max. flow rate: 80 m³/h
SP 60-5

Max. TDH at Q=0: 69 m
Max. flow rate: 80 m³/h

 SP 60-6

Max. TDH at Q=0: 83 m
Max. flow rate: 80 m³/h

 SP 60-7

Max. TDH at Q=0: 98 m
Max. flow rate: 80 m³/h
SP 60-8 B

Max. TDH at Q=0: 106 m
Max. flow rate: 80 m³/h

 SP 60-8

Max. TDH at Q=0: 112 m
Max. flow rate: 80 m³/h

 SP 60-9 B

Max. TDH at Q=0: 120 m
Max. flow rate: 80 m³/h
SP 60-9

Max. TDH at Q=0: 127 m
Max. flow rate: 80 m³/h

 SP 60-10

Max. TDH at Q=0: 141 m
Max. flow rate: 80 m³/h

 SP 60-11

Max. TDH at Q=0: 156 m
Max. flow rate: 80 m³/h
SP 60-12

Max. TDH at Q=0: 169 m
Max. flow rate: 80 m³/h

 SP 60-13

Max. TDH at Q=0: 185 m
Max. flow rate: 80 m³/h

 SP 60-14

Max. TDH at Q=0: 198 m
Max. flow rate: 80 m³/h
SP 60-15

Max. TDH at Q=0: 211 m
Max. flow rate: 80 m³/h

 SP 60-16

Max. TDH at Q=0: 227 m
Max. flow rate: 80 m³/h

 SP 60-17

Max. TDH at Q=0: 240 m
Max. flow rate: 80 m³/h
SP 60-18

Max. TDH at Q=0: 257 m
Max. flow rate: 80 m³/h

 SP 60-19

Max. TDH at Q=0: 270 m
Max. flow rate: 80 m³/h

 SP 60-20

Max. TDH at Q=0: 284 m
Max. flow rate: 80 m³/h
SP 60-21

Max. TDH at Q=0: 297 m
Max. flow rate: 80 m³/h


Worldwide export wholesaler of solar & storage

The SP range is your guarantee for high-quality water supply and is capable of handling flows up to 470 m³/h and head up to 810 m. With the new, updated 4″ range Grundfos can equip any application with a complete SP system to optimise performance and energy efficiency. Should you require more components to accommodate your specific needs the flexible system easily makes room for these.

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

The Grundfos SP range offers high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.

SP systems are used worldwide wherever efficient water handling is called for. The main application areas are irrigation of farmland and groundwater extraction for tap water, but there are many other, more specialised uses. Wherever you need water to move, SP systems will do it with complete reliability.

With over 13,000 employees and an annual production exceeding 10 million pump units, Grundfos is one of the world’s leading pump manufacturers.

Our solar pump inverters GRUNDFOS RSI and ABB ACS355 pairs easily with SP submersible pumps, creating a solar powered system which allows maximum components flexibility.

You can switch the solar inverter to mains power or generator if required, because our drives are compatible to both AC and DC power input without the need to change any parameter settings. Simply connect the two power sources via an external switchover box, and you take advantage of solar energy during the day and mains power or generator during the night.


SINES - Grundfos SP - submersible pump

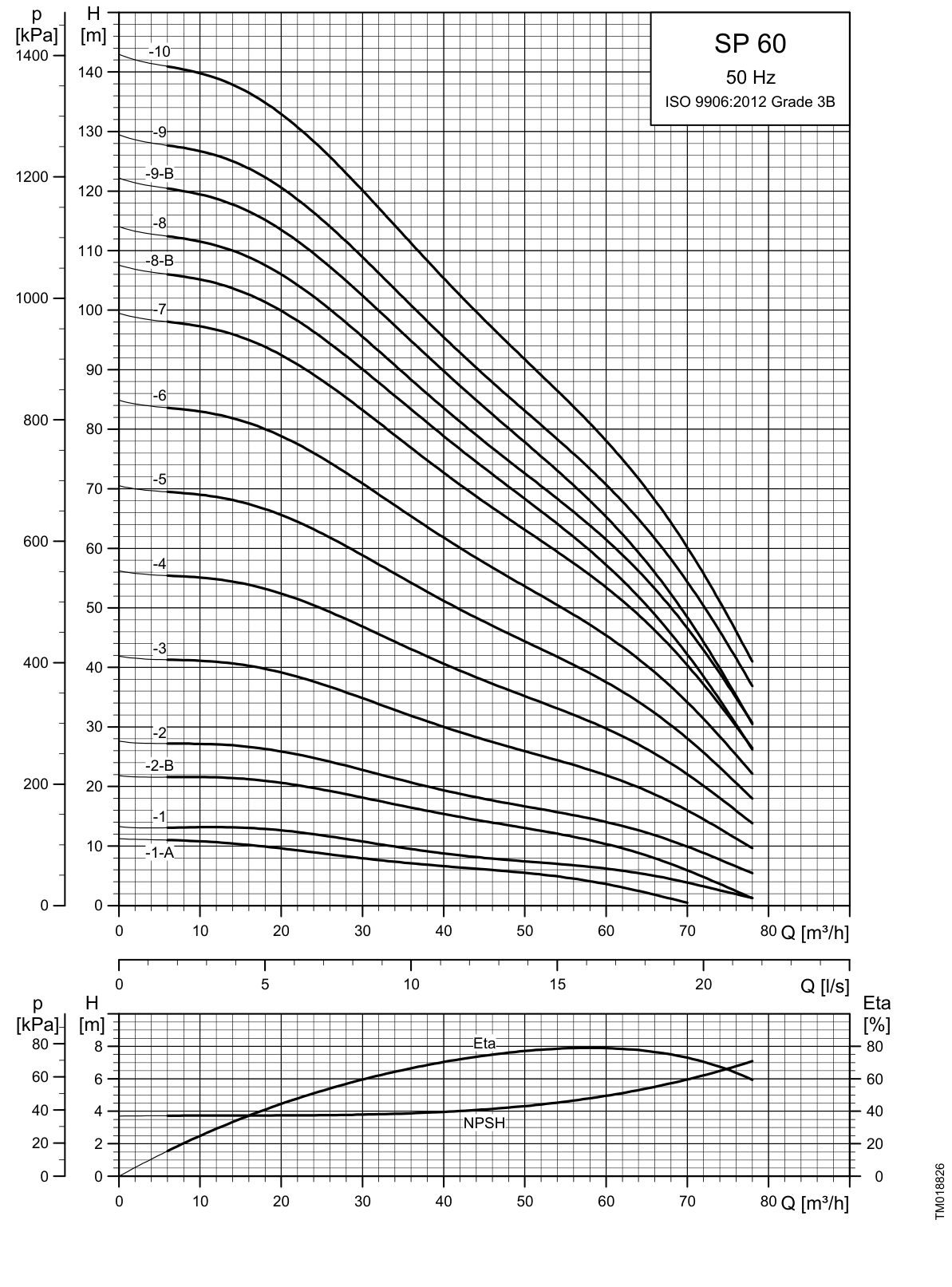

SINES - Grundfos SP 60 - official performance curves 50 Hz, first overview

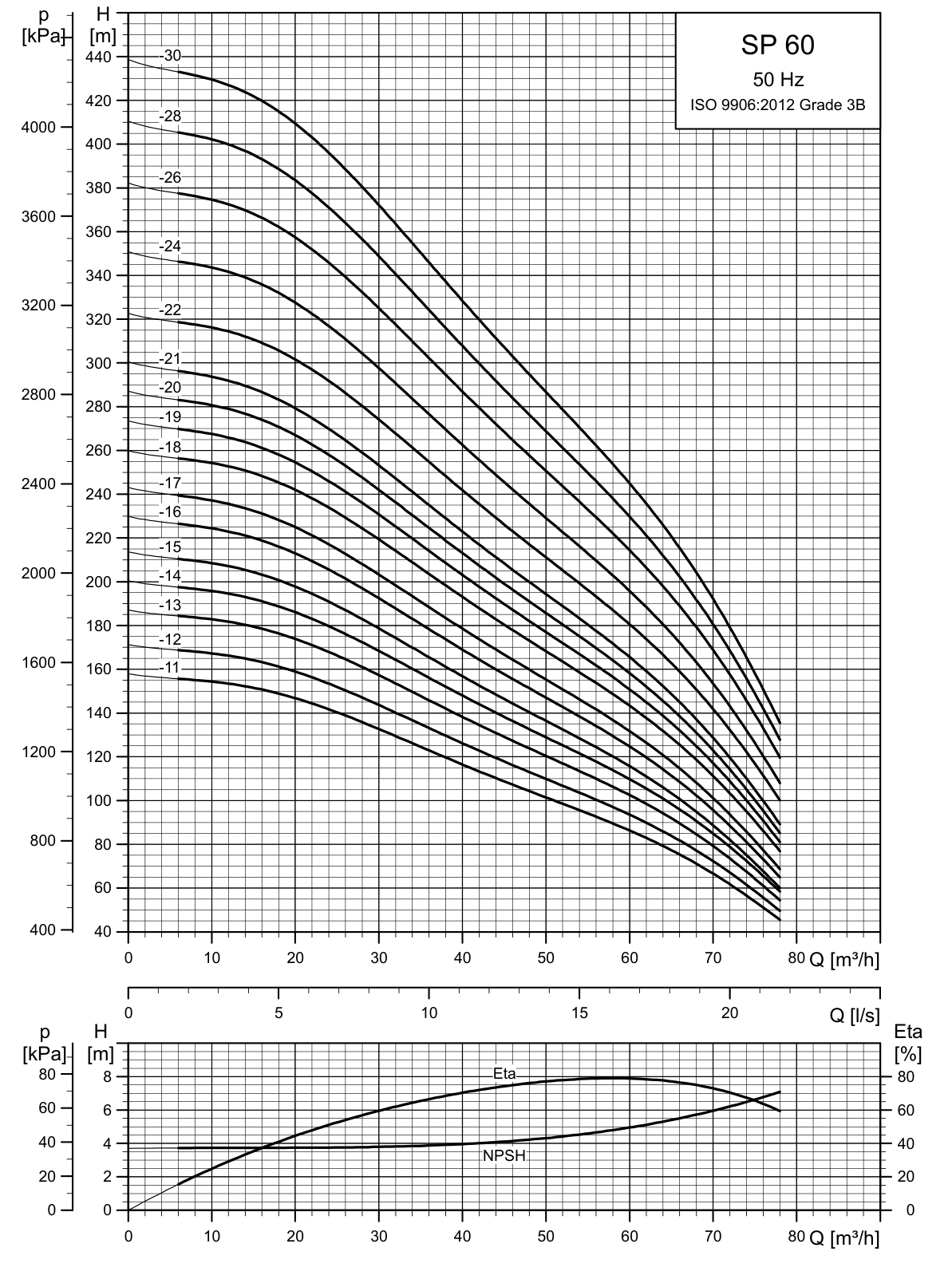

SINES - Grundfos SP 60 - official performance curves 50 Hz, second overview

Official Grundfos SP 60 overview curves, 50 Hz, ISO 9906:2012 Grade 3B. Maximum TDH among the listed AISI 304 article codes: 297 m at Q=0; maximum chart flow: 80 m³/h.



SINES - submersible pump - Grundfos SP

Performance range - GRUNDFOS SP Submersible pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos SP 60 standard AISI 304 range, three-phase submersible pumps, 50 Hz, supplied as a complete set: pump + submersible motor + motor cable. Availability and quotation on request.

Article code Designation P2 [kW] In [A] Motor type
14A019A1SP 60-1 A1.54.4MS402
14A01901SP 60-12.25.7MS402
14A019C2SP 60-2 B38.1MS4000
14A01902SP 60-249.8MS4000
14A01903SP 60-35.513.4MS4000
14AA1904SP 60-47.517.2MS6000
14A01905SP 60-59.221.2MS6000
14A01906SP 60-61124.8MS6000
14A01907SP 60-71329MS6000
14A019C8SP 60-8 B1329MS6000
14A01908SP 60-81533.5MS6000
14A019C9SP 60-9 B1533.5MS6000
14A01909SP 60-918.541.5MS6000
14A01910SP 60-1018.541.5MS6000
14A01911SP 60-112246.5MS6000
14A01912SP 60-122246.5MS6000
14A01913SP 60-132655MS6000
14A01914SP 60-142655MS6000
14A01915SP 60-152655MS6000
14A01916SP 60-163063MS6000
14A01917SP 60-173063MS6000
14A04318SP 60-183785MMS6
14A04319SP 60-193785MMS6
14A04320SP 60-203785MMS6
14AA4321SP 60-213785MMS6
SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: http://www.grundfos.com/
