SINES - ABB ACQ80 - solar pump inverter


ABB SOLAR DRIVE
ACQ80, 0.75 to 200 kW


Maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day.


ACQ80 - 0.75 kW - 380-480 V

ACQ80-04-0KW75-4

 ACQ80 - 1.1 kW - 380-480 V

ACQ80-04-01KW1-4
ACQ80 - 1.5 kW - 380-480 V

ACQ80-04-01KW5-4

 ACQ80 - 2.2 kW - 380-480 V

ACQ80-04-02KW2-4
ACQ80 - 3.0 kW - 380-480 V

ACQ80-04-03KW0-4

 ACQ80 - 4.0 kW - 380-480 V

ACQ80-04-04KW0-4
ACQ80 - 5.5 kW - 380-480 V

ACQ80-04-05KW5-4

 ACQ80 - 7.5 kW - 380-480 V

ACQ80-04-07KW5-4
ACQ80 - 11 kW - 380-480 V

ACQ80-04-011KW-4

 ACQ80 - 11 kW - 380-480 V

ACQ80-04-011KW-4
ACQ80 - 11 kW - 380-480 V

ACQ80-04-011KW-4

 ACQ80 - 15 kW - 380-480 V

ACQ80-04-015KW-4
ACQ80 - 18.5 kW - 380-480 V

ACQ80-04-18KW5-4

 ACQ80 - 22 kW - 380-480 V

ACQ80-04-022KW-4
ACQ80 - 30 kW - 380-480 V

ACQ80-01-030KW-4

 ACQ80 - 37 kW - 380-480 V

ACQ80-01-037KW-4
ACQ80 - 45 kW - 380-480 V

ACQ80-01-045KW-4

 ACQ80 - 55 kW - 380-480 V

ACQ80-01-055KW-4
ACQ80 - 75 kW - 380-480 V

ACQ80-01-075KW-4

 ACQ80 - 90 kW - 380-480 V

ACQ80-01-090KW-4
ACQ80 - 110 kW - 380-480 V

ACQ80-01-110KW-4

 ACQ80 - 132 kW - 380-480 V

ACQ80-01-132KW-4
ACQ80 - 160 kW - 380-480 V

ACQ80-01-160KW-4

 ACQ80 - 200 kW - 380-480 V

ACQ80-01-200KW-4
Basic control panel

ACS-BP-S

 Bluetooth control panel

ACS-AP-W
Worldwide export wholesaler of solar & storage

ABB solar pump drive is an innovative solution that uses solar power as a clean energy source for pumping water.

The maximum power point tracking functionality ensures that you get the most power output possible from your solar panel and maximizes the performance of your pump throughout the day.

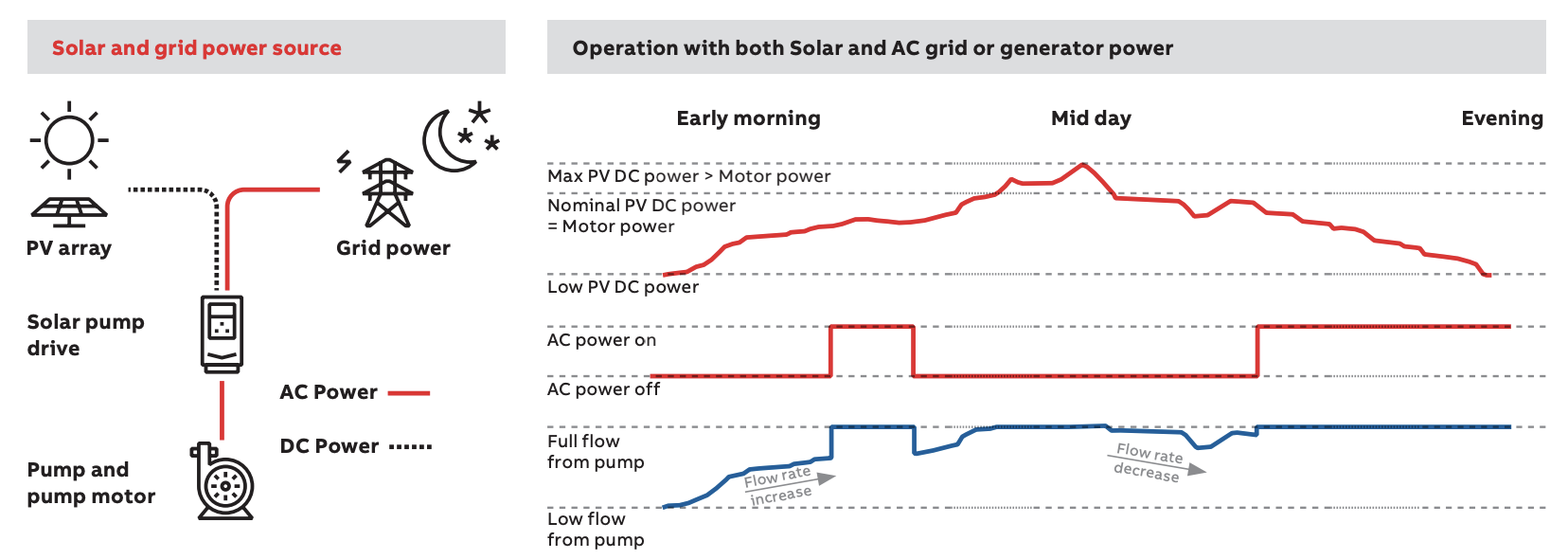

To get maximum water flow throughout the day and reduce grid power consumption, both grid and PV can be connected to the drive. For places where electricity is unpredictable, users need not depend on grid electricity for their water pumping requirements. Water pumping can be done via a PV power source as an off-grid solution.

Multiple operating modes ensure water saving and optimal control of the pumping, based on the need and application: the solar radiation intensity, the desired time on any day of a week, manually with external push buttons, remote cellular-based control or based on the tank level.

Dry run protection prevents the pump from running dry. If there is no water in the pump, released heat can damage the pump over time, limiting its lifetime.

The drive has the ability to control standard asynchronous pump motors, as well as more efficient permanent magnet and permanent magnet assisted synchronous reluctance pump motors.

ACQ80 drives are intended to be used for speed control of 3-phase AC pump motors and powered from either AC grid or DC photo-voltaic array. With only DC input, the drive starts running a connected pump whenever there is enough solar radiation available to generate electricity required to run the pump smoothly with controlled acceleration and declaration even when there are sudden changes in DC voltage due to cloud passing. This helps to avoid motor and pump damage.

Built-in MPPT logic monitors available DC power and helps avoid multiple restarts of the pump motor during early morning and late evening time when PV array is the only source of power to the drive.

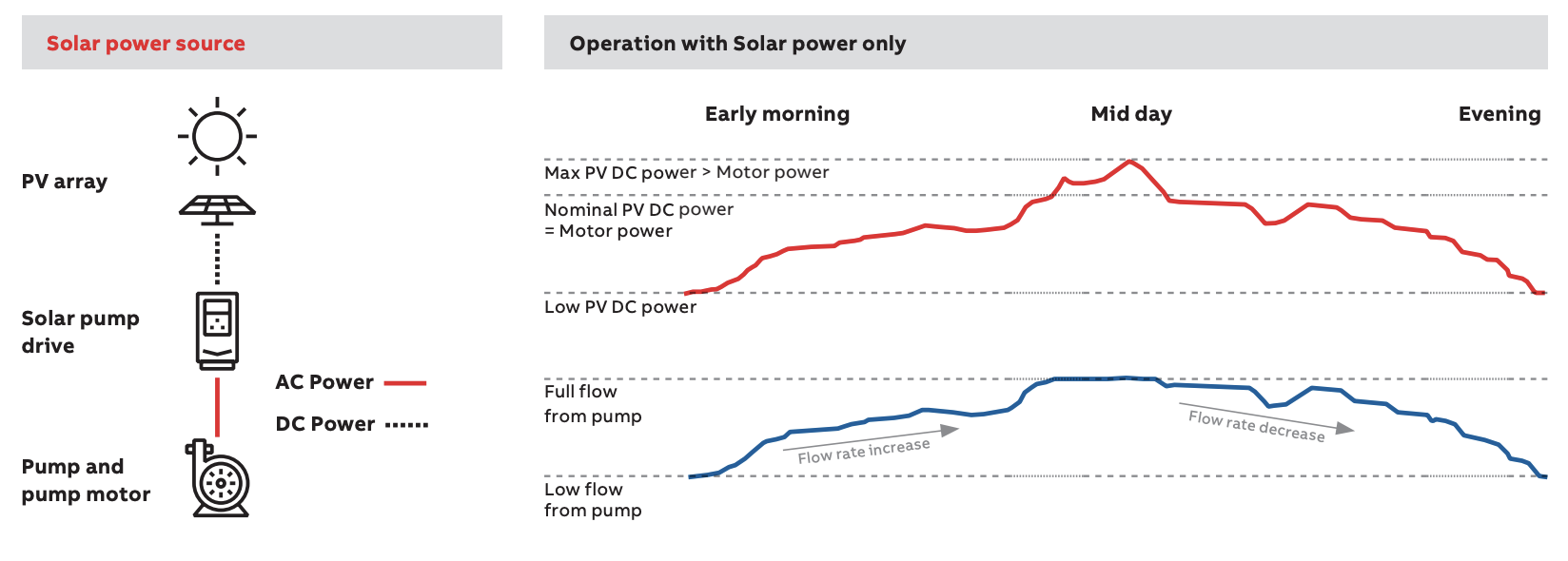

During an ON command to the drive, the flow rate depends on the power availability as explained in the below graph.

SINES - ABB ACQ80 solar drive

SINES - ABB hybdrid solar pump drive
