The new SOLARATOR generation, up to 60 kW

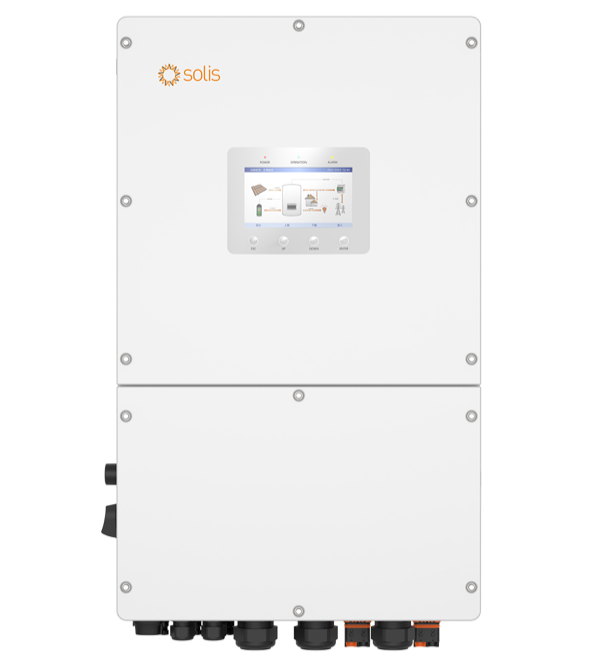

The Solis S6-EH3P (30-60)K-H(21A) is the latest evolution of Solis high-voltage three-phase hybrid inverters: four power ratings — 30, 40, 50 and 60 kW — for commercial and industrial self-consumption with high-voltage storage.
It accepts up to 100 kWp of photovoltaic array at 1000 V, with 3 or 4 MPPTs (150–850 V, 42 A per MPPT) and, above all, a current of 21 A per string: compatibility is guaranteed with the latest-generation high-power photovoltaic modules. Its 2 independent battery ports deliver 80 to 84 A each — up to 168 A of combined charging — on 150–800 V lithium batteries and modules from 100 to 314 Ah, for fast charging and easy capacity expansion.
C&I self-consumption, VPP and demanding grids
Designed for demand management, it integrates export-limitation (zero feed-in), dynamic reactive-power compensation — which improves the site's power factor and reduces penalties — and AI-based tariff optimisation with virtual power plant (VPP) compatibility: the battery charges and discharges at the best moment to minimise the bill, or even generate revenue.
In back-up mode, changeover takes place in under 10 ms (under 20 ms in parallel up to 6 units), with an overload of 160 % for 2 s and 150 % for 10 s to start demanding loads. Generator hybridisation and control suited to weak grids secure poorly served sites. Up to 10 inverters in parallel bring the system to 600 kW (a Solis STS cabinet is recommended beyond 6). Connectivity is complete as standard: Wi-Fi + LAN + Bluetooth, dual CAN-BMS, RS485 meter, DRM, logic inputs/outputs — SolisCloud monitoring and a 7-inch industrial display.
- ✔ High-voltage three-phase hybrid: 30 / 40 / 50 / 60 kW — VFR:2019 certified (France)
- ✔ PV up to 100 kWp · 21 A strings for high-power modules
- ✔ 2 battery ports · up to 84 A × 2 (168 A) · 100–314 Ah modules
- ✔ Export limitation, reactive-power compensation, AI and VPP compatibility
- ✔ Back-up < 10 ms · 160 % / 2 s and 150 % / 10 s · generator hybridisation
- ✔ Parallel up to 10 units / 600 kW · Wi-Fi + LAN + Bluetooth as standard
- ✔ IP66 · intelligent redundant forced cooling · −25 to +60 °C
SINES Export, Solis distributor and exporter
SINES Export supplies Solis hybrid inverters to installers, integrators, resellers and design offices: technical study and sizing, technical support and worldwide delivery. See the full range on our Solis distributor page, the 2-port generator version S6-EH3P (29.9-50)K-H, the FlexHome and IntelliHome batteries, as well as the C&I BESS EverCore. See also our selection of solar inverters.
S6-EH3P (30-60)K-H(21A) specifications
| Parameter |
Value |
| Models | 30K · 40K · 50K · 60K |
| Rated AC output power | 30 / 40 / 50 / 60 kW |
| Max recommended PV array | 60 / 80 / 100 / 100 kWp |
| Max PV voltage · MPPT range | 1000 V · 150 – 850 V |
| Number of MPPTs / strings | 3 / 6 (30K) · 4 / 8 (40-60K) |
| PV current | 42 A per MPPT · 21 A per string |
| Battery | Li-ion · 150 – 800 V · 100 – 314 Ah modules |
| Battery ports | 2 independent · 80 A × 2 (30-50K) · 84 A × 2 (60K) |
| Max combined battery charging current | 168 A |
| Grid output | 3/N/PE · 220 V/380 V · 230 V/400 V · 50/60 Hz |
| Power factor · THDi | > 0.99 · < 3 % |
| AC grid input | 304 – 460 V · up to 100/105 kW |
| Generator input | 30 / 40 / 50 / 60 kW |
| Back-up | changeover < 10 ms · 160 % / 2 s and 150 % / 10 s overload · THDv < 2 % |
| Max power per phase | 33 % of rated power (grid and back-up) |
| Max / European efficiency | 97.7 % / 97.3 % |
| Battery charging efficiency from PV / AC | 98.5 % / 97.8 % |
| Protections | anti-islanding · insulation monitoring · residual current · type II DC/AC surge protection · AFCI 2.0 (option) |
| Display · monitoring | 7″ LCD screen · Bluetooth + APP · SolisCloud |
| Communication (standard) | Wi-Fi + LAN + Bluetooth · CAN-BMS ×2 · CAN-Parallel ×2 · RS485-Meter · RS485 · DRM · DI/DO ×3 · optional 4G |
| Parallel operation | up to 10 units · 600 kW (Solis STS cabinet beyond 6) |
| Dimensions (W × H × D) · weight | 530 × 880 × 290 mm · 76 kg |
| Protection rating · environment | IP66 · −25 to +60 °C · 4000 m |
| Cooling · topology | intelligent redundant forced · transformerless · < 35 W at night |
| Grid standards | VDE 0126/XP C15/VFR:2019 · EN 50549-1/-10 · VDE-AR-N 4105 · G99 · CEI 0-16/0-21 · C10/11 |
| Safety / EMC | IEC/EN 62109-1/-2 · IEC/EN 61000-6-2/-4 · EN 55011 |
Source: France datasheet Solis S6-EH3P (30-60)K-H(21A) (Ginlong Technologies). Specifications subject to change; contact SINES Export for the latest revision.
