Wall-mounted IP66 LiFePO4 battery for self-consumption
SolisStorage IntelliHome is a range of low-voltage LiFePO4 batteries in a weatherproof wall cabinet, available in three capacities: 5, 10 and 16 kWh.
Designed for residential and small-commercial self-consumption, the IntelliHome is fixed to the wall in a few minutes thanks to its mounting rail (floor mounting is also possible) and connects via CAN or RS485 to the Solis low-voltage hybrid inverters. Its IP66 rating allows installation outdoors, on a facade or in an unheated technical room.
A key advantage for demanding sites: the built-in heating function enables charging from −20 to 55 °C (derating above 45 °C), with quiet natural cooling and operation up to 4000 m of altitude: mountains, remote sites or high-altitude regions.

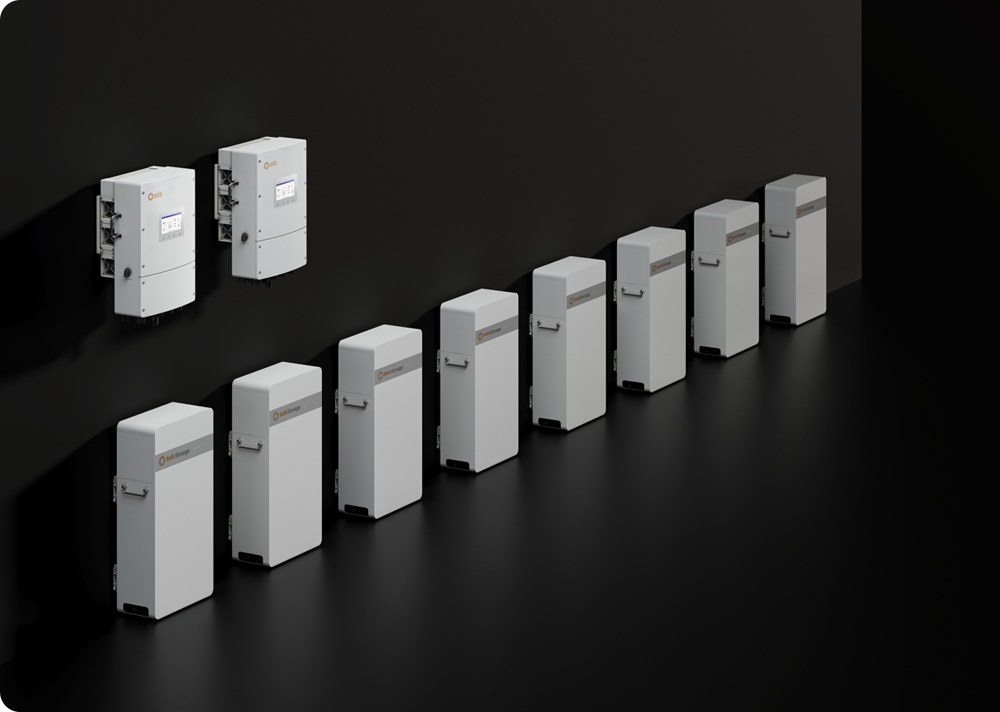

Each group accepts up to 8 units in parallel: a single reference thus covers from 5 kWh up to 128 kWh combined (8 × 16 kWh), from the single-family home to the small business.
- Cobalt-free LFP chemistry, 100 Ah or 314 Ah cells, DOD 100 %
- Service life >6000 cycles / 10-year design
- IP66: indoor or outdoor installation, wall or floor
- Charging from −20 °C thanks to the built-in heating
- Expansion up to 8 units: 40, 80 or 128 kWh per group
- Certified IEC 62619, IEC 63056, VDE 2510-50, UN 38.3
SINES Export distributes the SolisStorage range to professionals, installers, integrators, resellers and engineering offices, with stock, study and sizing, technical support and worldwide export and logistics. See also Solis distributor and the stackable battery FlexHome.
Technical specifications IntelliHome 5 / 10 / 16 kWh
Values from the manufacturer datasheet IntelliHome-(5-16)kWh-OD:
| Model |
IntelliHome 5 kWh |
IntelliHome 10 kWh |
IntelliHome 16 kWh |
| Chemistry |
LiFePO4 (LFP) |
| Voltage range |
44.8 – 57.6 V |
| Cell |
100 Ah |
100 Ah |
314 Ah |
| Max charge current |
50 A |
100 A |
157 A |
| Max discharge current |
100 A |
200 A |
157 A |
| Recommended rate |
0.5C |
| Depth of discharge |
100 % |
| Service life |
>6000 cycles / 10 years |
| Parallel expansion |
8 units · 40 kWh |
8 units · 80 kWh |
8 units · 128 kWh |
| Charging temperature |
−20 to 55 °C with built-in heating (derating >45 °C) |
| Cooling |
Natural, fanless |
| Protection rating |
IP66 |
| Communication |
CAN / RS485 |
| Max altitude |
4000 m |
| Mounting |
Wall (default) or floor |
| Dimensions W×H×D |
470 × 650 × 150 mm |
470 × 1070 × 150 mm |
470 × 950 × 240 mm |
| Weight |
50 kg |
95 kg |
126 kg |
| Certifications |
IEC 62619, IEC 63056, ISO 13849, VDE 2510-50, UN 38.3, IEC 60730-1 (16 kWh: CEC listed) |
Hybrid inverter compatibility and sizing
Compatible Solis low-voltage hybrid inverters:
- S6-EH1P(3-6)K-L-EU, single-phase hybrid 3 to 6 kW
- S6-EH1P(3-10)K-L-PLUS, single-phase hybrid 3 to 10 kW
- S6-EH3P(8-18)K02-NV-YD-L, three-phase hybrid 8 to 18 kW
- SolisStorage EA and EO ranges (full list on request)
Recommended combinations for photovoltaic + storage sizing (installer guideline, to be refined according to the consumption profile):
| PV power |
Recommended storage capacity |
| 6 kWp |
10 kWh (1 × 10 kWh) |
| 10 kWp |
16 kWh (1 × 16 kWh) |
| 15 kWp |
20 kWh (2 × 10 kWh) |
| 20 kWp |
30 kWh (3 × 10 kWh) |
| 25 – 30 kWp |
40 kWh (4 × 10 kWh or 8 × 5 kWh) |
Our engineering office supports installers and integrators in sizing the hybrid inverter / IntelliHome battery pairing: load profile, backup autonomy, climatic constraints (cold, altitude, coastal). Contact us for a study or a quotation.
