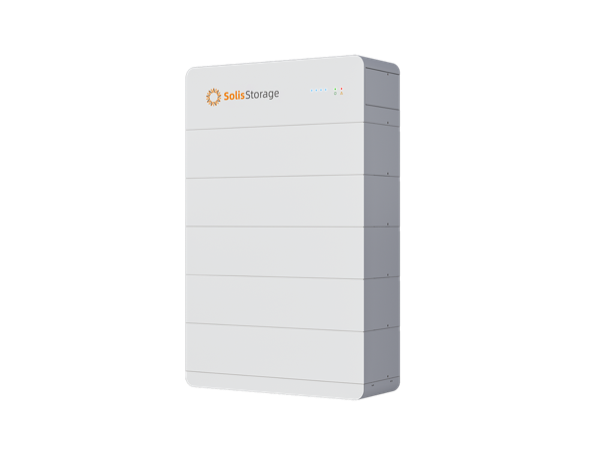

A stackable battery, a single part number from 5 to 40 kWh
SolisStorage FlexHome is the stackable lithium-iron-phosphate (LFP) battery from Ginlong Solis, designed for installers: the 5 kWh modules stack on top of each other without inter-module cabling.
Each 5 kWh module (100 Ah cells) stacks from 1 to 8 levels to build a 5 to 40 kWh stack, topped by a control box that concentrates the BMS, the protections and the communication. The electrical connections are established automatically as the modules are stacked: a site is deployed in about fifteen minutes, without cabling between modules, and the capacity remains expandable after commissioning. Up to 4 systems in parallel raise the storage to 160 kWh on the DC bus.
For distributor and installer alike, the benefit is immediate: a single module part number covers every capacity from 5 to 40 kWh. Sizing is adjusted to the customer's consumption profile without multiplying the references held in stock, and the IP66 rating allows installation indoors as well as outdoors, floor-standing (default configuration) or wall-mounted.
FlexHome-L low voltage or FlexHome-H high voltage
The FlexHome-L variant (44.8–57.6 V) pairs with the Solis low-voltage hybrid inverters S6-EH1P, S6-EH2P and S6-EH3P…-L, single-phase or three-phase. The 51.2 V architecture rules out any risk of electric arcing and simplifies maintenance operations. The FlexHome-H variant (high voltage, 15 to 40 kWh) supports the three-phase hybrids S6-EH3P(5-12)K-H and S6-EH3P(12-20)K-H when the project calls for high-voltage coupling. In both cases, CAN / RS485 communication ensures native dialogue with the Solis inverter.
On the reliability side, Solis states grade A LFP cells, redundant five-level safety, more than 6000 cycles and 10 years of service life, with a depth of discharge of 100 %. The built-in heating function maintains charging down to −20 °C, an asset for outdoor installations and high-altitude sites.
- Cobalt-free LFP chemistry, grade A 100 Ah cells
- Stackable without inter-module cabling: assembly in ~15 minutes
- One reference = every capacity: 5 to 40 kWh per stack, 160 kWh in parallel
- IP66: indoor or outdoor installation, floor-standing or wall-mounted
- DOD 100 % · >6000 cycles · 10-year service life
- Charging from −20 to 55 °C thanks to the built-in heating
- Two variants: FlexHome-L (low voltage) and FlexHome-H (high voltage)
SINES Export, Solis distributor for professionals
SINES Export supplies the SolisStorage range to installers, integrators, resellers and engineering offices worldwide: stock, study and sizing, technical support and international export and logistics. See the full range on our Solis distributor page, the wall-mounted SolisStorage IntelliHome battery, the C&I BESS EverCore and, for commercial-scale power, the hybrid inverters S6-EH3P(29.9-50)K-H and S6-EH3P(30-60)K-H. See also our selection of lithium batteries.
FlexHome-L specifications (low voltage)
| Parameter |
FlexHome-L |
| Battery module |
LFP · 5 kWh · 100 Ah |
| Capacity per stack |
5 to 40 kWh (1 to 8 stacked modules) |
| Parallel expansion |
up to 4 systems · 160 kWh max |
| Voltage range |
44.8 – 57.6 V |
| Recommended charge/discharge rate |
0.5C |
| Max charge current |
50 to 320 A depending on the number of modules |
| Max discharge current |
200 A |
| Depth of discharge (DOD) |
100 % |
| Service life |
> 6000 cycles · 10 years |
| Protection rating |
IP66 |
| Charging temperature |
−20 to 55 °C (built-in heating) |
| Communication |
CAN / RS485 |
| Installation |
floor-standing (default) or wall-mounted |
| Control box |
210 A · 800 × 230 × 285 mm · 15 kg |
| System dimensions (W × H × D) |
800 × 480 × 285 mm (1 module) to 800 × 1810 × 285 mm (8 modules) |
| System weight |
70 to 420 kg |
| Certifications |
IEC 62619 · IEC 63056 · VDE 2510-50 · UN 38.3 · INMETRO 140 |
| Compatible inverters |
Solis low-voltage hybrids S6-EH1P / EH2P / EH3P…-L |

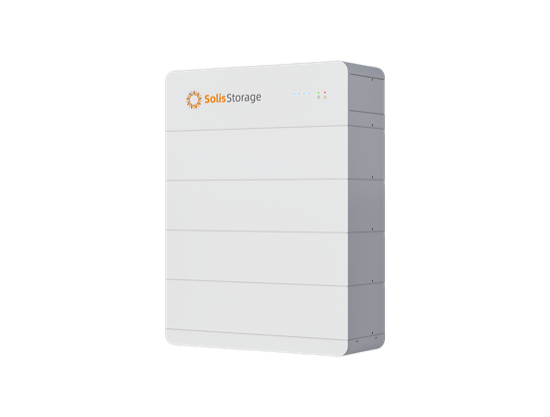

FlexHome-H (high voltage)
The high-voltage variant FlexHome-H uses the same stackable architecture with 5 kWh LFP modules (100 Ah) for stacks of 15 to 40 kWh (15 / 20 / 25 / 30 / 35 / 40 kWh), expandable up to 160 kWh in total. It keeps the IP66 rating, the −20 to 55 °C operating range, a service life of ≥ 6000 cycles and discharge possible at 1C with 100 % DOD. It is dedicated to the three-phase high-voltage hybrid inverters Solis S6-EH3P(5-12)K-H and S6-EH3P(12-20)K-H. Contact SINES Export for the detailed datasheet and the availability of this variant.
