SINES - Grundfos SP - submersible pump

GRUNDFOS SP-3A

Category: Submersible pumps

Max. lift: 375 m - Max. flow rate: 5 m³/h

Grundfos SP submersible pumps are renowned for their high efficiency and reliability throughout the range. Made entirely of corrosion-resistant stainless steel, SP pumps are ideal for a wide variety of applications.

SP 3A-6 Max. TDH: 38 m Max. flow rate: 4,40 m³/h	SP 3A-9 Max. TDH: 73 m Max. flow rate: 4,40 m³/h	SP 3A-12 Max. TDH: 38 m Max. flow rate: 4,40 m³/h
SP 3A-15 Max. TDH: 92 m Max. flow rate: 4,40 m³/h	SP 3A-18 Max. TDH: 110 m Max. flow rate: 4,40 m³/h	SP 3A-22 Max. TDH: 135 m Max. flow rate: 4,40 m³/h
SP 3A-25 Max. TDH: 153 m Max. flow rate: 4,40 m³/h	SP 3A-29 Max. TDH: 179 m Max. flow rate: 4,40 m³/h	SP 3A-33 Max. TDH: 203 m Max. flow rate: 4,40 m³/h
SP 3A-39 Max. TDH: 245 m Max. flow rate: 4,40 m³/h	SP 3A-45 Max. TDH: 282 m Max. flow rate: 4,40 m³/h	SP 3A-52 Max. TDH: 328 m Max. flow rate: 4,40 m³/h
SP 3A-60 Max. TDH: 378 m Max. flow rate: 4,40 m³/h
Worldwide export wholesaler of solar & storage

The SP range is your guarantee for high-quality water supply and is capable of handling flows up to 470 m³/h and head up to 810 m. With the new, updated 4″ range Grundfos can equip any application with a complete SP system to optimise performance and energy efficiency. Should you require more components to accommodate your specific needs the flexible system easily makes room for these.

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

The Grundfos SP range offers high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.

SP systems are used worldwide wherever efficient water handling is called for. The main application areas are irrigation of farmland and groundwater extraction for tap water, but there are many other, more specialised uses. Wherever you need water to move, SP systems will do it with complete reliability.

With over 13,000 employees and an annual production exceeding 10 million pump units, Grundfos is one of the world’s leading pump manufacturers.

Our solar pump inverters GRUNDFOS RSI and ABB ACS355 pairs easily with SP submersible pumps, creating a solar powered system which allows maximum components flexibility.

You can switch the solar inverter to mains power or generator if required, because our drives are compatible to both AC and DC power input without the need to change any parameter settings. Simply connect the two power sources via an external switchover box, and you take advantage of solar energy during the day and mains power or generator during the night.

SINES - Grundfos SP - submersible pump

SINES - Grundfos SP - submersible pump

SINES - Grundfos SP - submersible pump

SINES - submersible pump - Grundfos SP

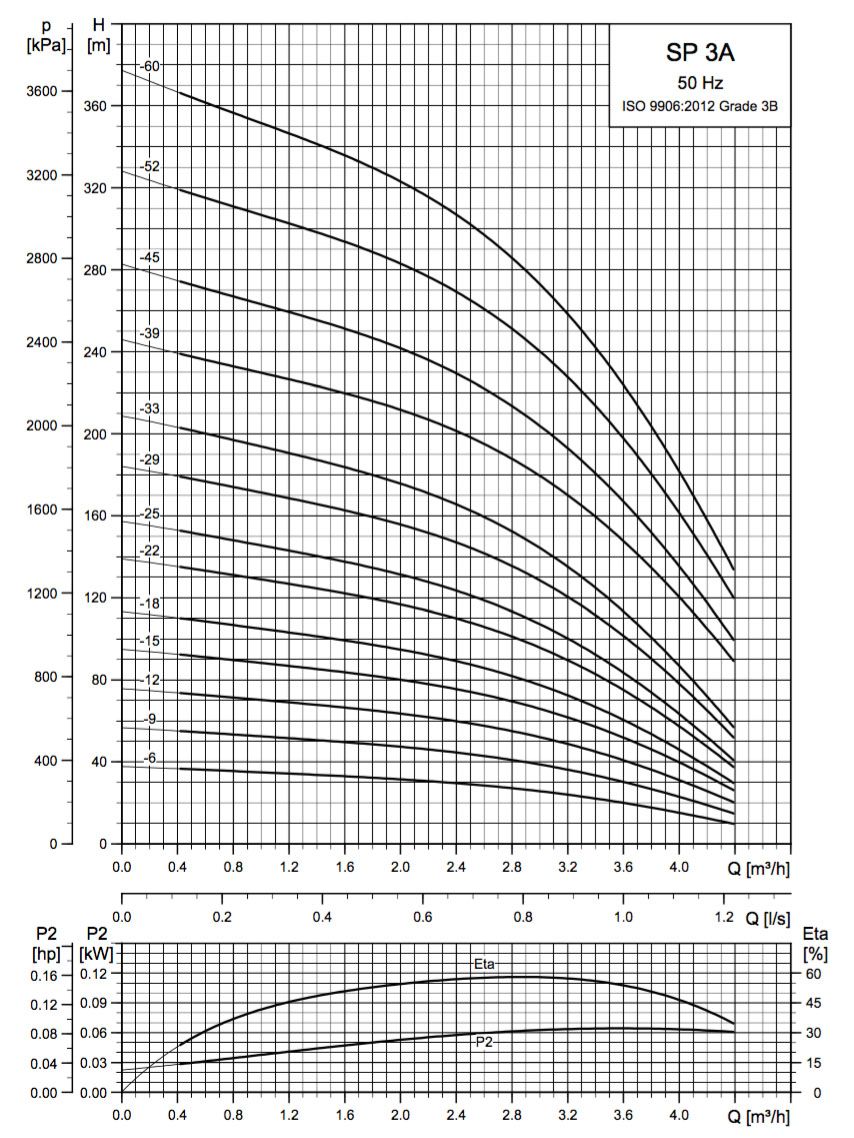

Performance range - GRUNDFOS SP Submersible pumps - Source: http://www.grundfos.com/

References & article codes

Grundfos SP 3A range, three-phase submersible pumps 380-415 V, 50 Hz, supplied as a complete set: pump + submersible motor + motor cable. Price and availability on request.

Article code	Designation	P2 [kW]	In [A]	Motor type
10001K06	SP 3A-6	0.37	1.5	MS402
10001K09	SP 3A-9	0.55	2.35	MS402
10001K12	SP 3A-12	0.75	2.4	MS402
10001K15	SP 3A-15	1.1	3.65	MS402
10001K18	SP 3A-18	1.1	3.65	MS402
10001K22	SP 3A-22	1.5	4.4	MS402
10001K25	SP 3A-25	1.5	4.4	MS402
10001K29	SP 3A-29	2.2	5.7	MS402
10001K33	SP 3A-33	2.2	5.7	MS402
10101K39	SP 3A-39	3	8.1	MS4000
10101K45	SP 3A-45	3	8.1	MS4000
10101K52	SP 3A-52	4	9.8	MS4000
10101K60	SP 3A-60	4	9.8	MS4000

SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: http://www.grundfos.com/
