SINES - Grundfos SP - submersible pump


GRUNDFOS SP-32


  • Category: Submersible pumps

Max. lift: 585 m - Max. flow rate: 45 m³/h

The Grundfos SP 32 submersible pump replaces the former SP 30 in the SP range. Made entirely of corrosion-resistant stainless steel, it retains the proven hydraulics of the series (nominal flow rate ~32 m³/h) with even further optimised efficiency. Ideal for borehole, water supply and irrigation applications.


SP 32-1

Max. TDH: 11 m
Max. flow rate: 45 m³/h

 SP 32-2

Max. TDH: 22 m
Max. flow rate: 45 m³/h

 SP 32-3

Max. TDH: 32 m
Max. flow rate: 45 m³/h
SP 32-4

Max. TDH: 43 m
Max. flow rate: 45 m³/h

 SP 32-5

Max. TDH: 54 m
Max. flow rate: 45 m³/h

 SP 32-6

Max. TDH: 65 m
Max. flow rate: 45 m³/h
SP 32-7

Max. TDH: 76 m
Max. flow rate: 45 m³/h

 SP 32-8

Max. TDH: 87 m
Max. flow rate: 45 m³/h

 SP 32-9

Max. TDH: 97 m
Max. flow rate: 45 m³/h
SP 32-10

Max. TDH: 108 m
Max. flow rate: 45 m³/h

 SP 32-11

Max. TDH: 119 m
Max. flow rate: 45 m³/h

 SP 32-12

Max. TDH: 130 m
Max. flow rate: 45 m³/h
SP 32-13

Max. TDH: 141 m
Max. flow rate: 45 m³/h

 SP 32-14

Max. TDH: 152 m
Max. flow rate: 45 m³/h

 SP 32-15

Max. TDH: 162 m
Max. flow rate: 45 m³/h
SP 32-16

Max. TDH: 173 m
Max. flow rate: 45 m³/h

 SP 32-17

Max. TDH: 184 m
Max. flow rate: 45 m³/h

 SP 32-18

Max. TDH: 195 m
Max. flow rate: 45 m³/h
SP 32-19

Max. TDH: 206 m
Max. flow rate: 45 m³/h

 SP 32-20

Max. TDH: 217 m
Max. flow rate: 45 m³/h

 SP 32-21

Max. TDH: 227 m
Max. flow rate: 45 m³/h
SP 32-22

Max. TDH: 238 m
Max. flow rate: 45 m³/h

 SP 32-23

Max. TDH: 249 m
Max. flow rate: 45 m³/h

 SP 32-24

Max. TDH: 260 m
Max. flow rate: 45 m³/h
SP 32-25

Max. TDH: 271 m
Max. flow rate: 45 m³/h

 SP 32-26

Max. TDH: 282 m
Max. flow rate: 45 m³/h

 SP 32-27

Max. TDH: 292 m
Max. flow rate: 45 m³/h
SP 32-29

Max. TDH: 314 m
Max. flow rate: 45 m³/h

 SP 32-31

Max. TDH: 336 m
Max. flow rate: 45 m³/h

 SP 32-33

Max. TDH: 357 m
Max. flow rate: 45 m³/h
SP 32-35

Max. TDH: 379 m
Max. flow rate: 45 m³/h

 SP 32-39

Max. TDH: 422 m
Max. flow rate: 45 m³/h

 SP 32-43

Max. TDH: 466 m
Max. flow rate: 45 m³/h
SP 32-46

Max. TDH: 498 m
Max. flow rate: 45 m³/h

 SP 32-49

Max. TDH: 531 m
Max. flow rate: 45 m³/h

 SP 32-52

Max. TDH: 563 m
Max. flow rate: 45 m³/h
SP 32-54

Max. TDH: 585 m
Max. flow rate: 45 m³/h


Worldwide export wholesaler of solar & storage

The SP range is your guarantee for high-quality water supply and is capable of handling flows up to 470 m³/h and head up to 810 m. With the new, updated 4″ range Grundfos can equip any application with a complete SP system to optimise performance and energy efficiency. Should you require more components to accommodate your specific needs the flexible system easily makes room for these.

Grundfos SP pumps represent state-of-the-art hydraulic design. Built to deliver optimum efficiency during periods of high demand, the SP pumps provide low long-term costs and high operating reliability regardless of the application.

The Grundfos SP range offers high resistance to sand and other abrasives, motor burnout protection, and easy maintenance. A complete monitoring and control system is available for constant optimisation of the pumping system.

SP systems are used worldwide wherever efficient water handling is called for. The main application areas are irrigation of farmland and groundwater extraction for tap water, but there are many other, more specialised uses. Wherever you need water to move, SP systems will do it with complete reliability.

With over 13,000 employees and an annual production exceeding 10 million pump units, Grundfos is one of the world’s leading pump manufacturers.

Our solar pump inverters GRUNDFOS RSI and ABB ACS355 pairs easily with SP submersible pumps, creating a solar powered system which allows maximum components flexibility.

You can switch the solar inverter to mains power or generator if required, because our drives are compatible to both AC and DC power input without the need to change any parameter settings. Simply connect the two power sources via an external switchover box, and you take advantage of solar energy during the day and mains power or generator during the night.


SINES - Grundfos SP - submersible pump

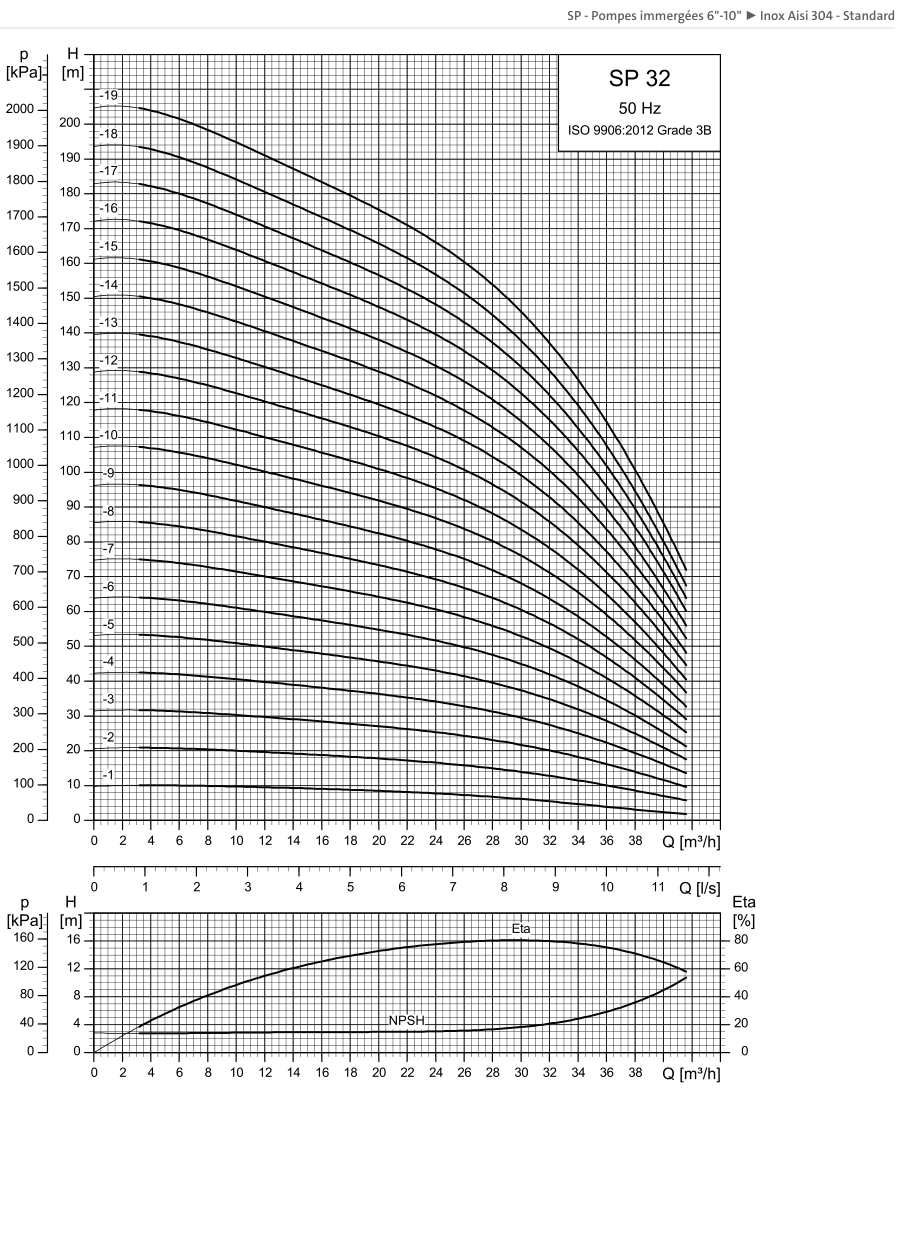

SINES - Grundfos SP 32 - performance curves 50 Hz (1 to 19 stages)

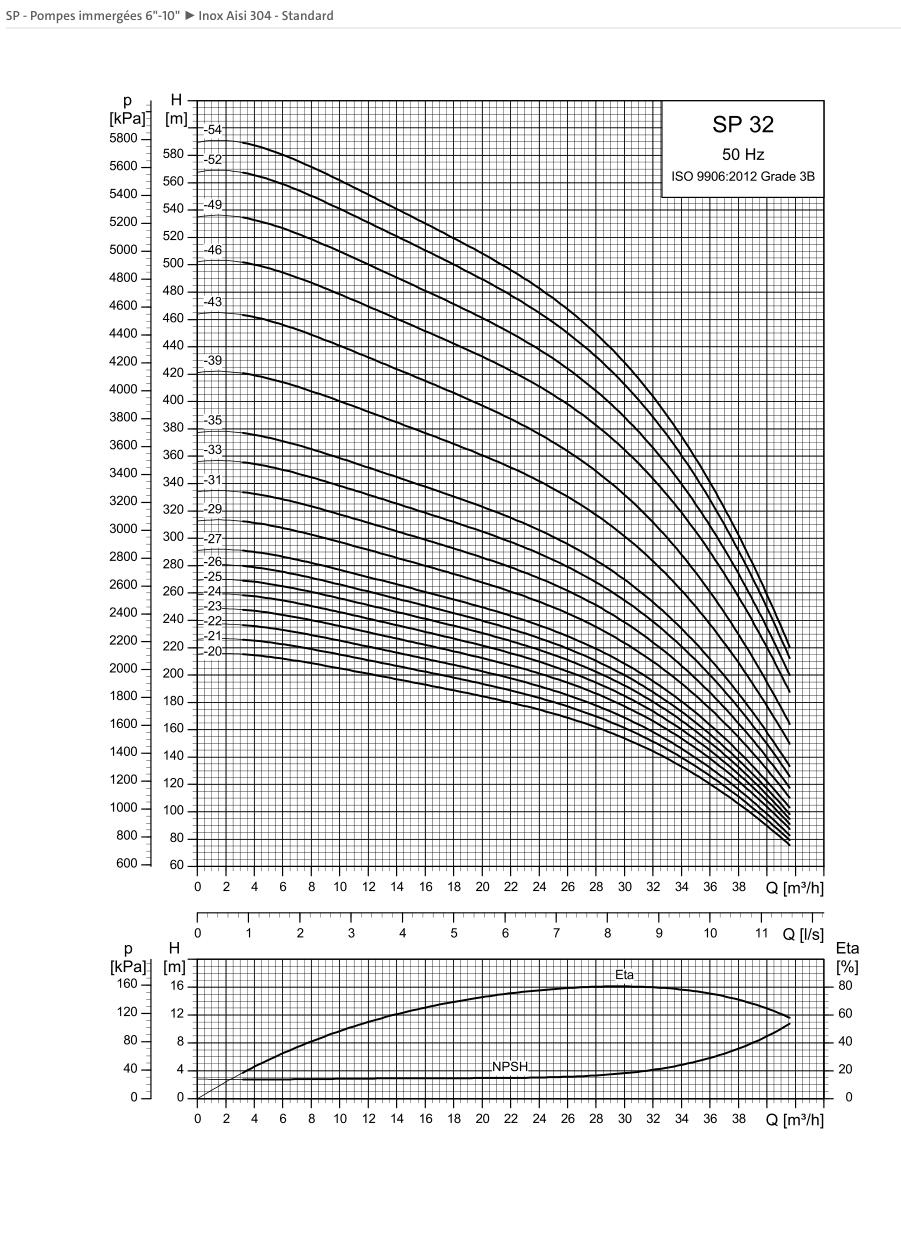

SINES - Grundfos SP 32 - performance curves 50 Hz (20 to 54 stages)

Grundfos SP 32 performance curves, 50 Hz, 2900 rpm, ISO 9906:2012 Grade 3B. Max. TDH: 585 m, max. flow rate: 45 m³/h.



SINES - submersible pump - Grundfos SP

Performance range - GRUNDFOS SP Submersible pumps - Source: http://www.grundfos.com/




References & article codes

The SP 32 replaces the former SP 30. Grundfos SP 32 range, three-phase submersible pumps 380-415 V, 50 Hz, supplied as a complete set: pump + submersible motor + motor cable. Price and availability on request.

Article code Designation P2 [kW] In [A] Motor type
93101079SP 32-11.13.65MS402
92910835SP 32-22.25.7MS402
92910836SP 32-338.1MS4000
92910819SP 32-449.8MS4000
93101243SP 32-55.513.6MS6000
93101244SP 32-65.513.6MS6000
92910848SP 32-77.517.2MS6000
92910834SP 32-87.517.2MS6000
93101245SP 32-97.517.2MS6000
92910849SP 32-109.221.2MS6000
93101246SP 32-119.221.2MS6000
92910842SP 32-121124.8MS6000
92910839SP 32-131124.8MS6000
93101247SP 32-141329MS6000
93101248SP 32-151329MS6000
93101249SP 32-161533.5MS6000
93101250SP 32-171533.5MS6000
93101251SP 32-181533.5MS6000
93101252SP 32-1918.541.5MS6000
93101253SP 32-2018.541.5MS6000
93101254SP 32-2118.541.5MS6000
93101255SP 32-2218.541.5MS6000
93101256SP 32-232246.5MS6000
93101257SP 32-242246.5MS6000
93101258SP 32-252246.5MS6000
93101259SP 32-272655MS6000
93101260SP 32-292655MS6000
93101261SP 32-312655MS6000
93101262SP 32-333063MS6000
93101263SP 32-353063MS6000
SINES - Grundfos RSI - solar pump inverter

Installation example showing solar panels, solar pump inverter, submersible pump and water tank - Source: http://www.grundfos.com/
