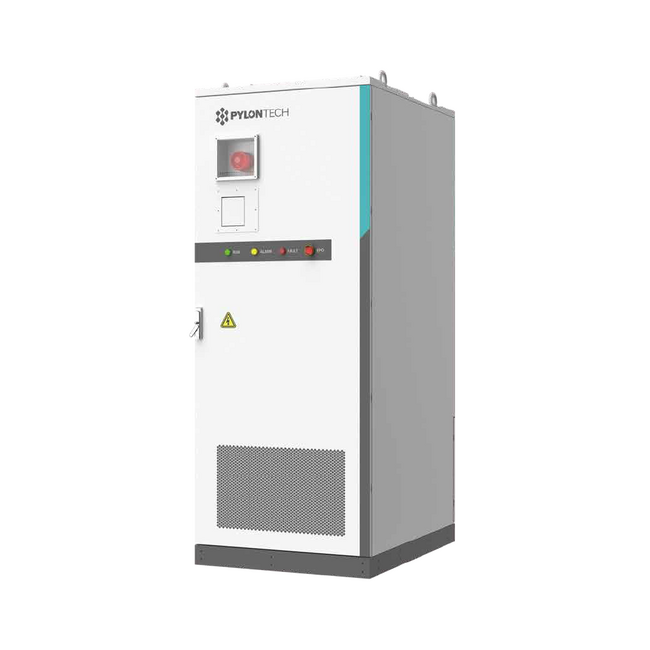

The Pylontech OPTIM US L260-OMNI is a fully integrated energy storage system (BESS) with on-board PCS (inverter), designed for commercial, industrial and large-scale export applications. Each outdoor cabinet brings together the LFP battery, the PCS and liquid cooling in a compact, ready-to-connect 400 Vac format.
A single cabinet delivers 260 kWh and 125 kW. Connecting up to 6 cabinets in parallel reaches 1560 kWh and 750 kW, with no heavy civil works, for arbitrage, grid services, demand response, peak shaving and backup projects.
Why choose the L260 Omni?
- Integrated PCS: on-board 125 kW inverter, 400 Vac / 50 Hz output, simplified on-grid connection.
- Safe LFP chemistry: depth of discharge (DoD) of 98 % and a service life of more than 8500 cycles.
- Liquid cooling: performance and service life preserved over a range of −25 to 50 °C.
- High efficiency: round-trip efficiency >95 % at 0.5 C and a PCS CEC efficiency of 98 %.
- Designed for outdoor use: IP55 protection rating, aerosol fire suppression, C3 anti-corrosion (C5 optional).
- Modularity: from 1 to 6 cabinets in parallel, from 260 to 1560 kWh.
Technical specifications
| Reference | M7-1000V-125kW/260kWh |
|---|
| Battery type | Li-ion LFP (lithium iron phosphate) |
|---|
| Nominal capacity | 260 kWh per cabinet |
|---|
| Nominal AC power (PCS) | 125 kW |
|---|
| Depth of discharge (DoD) | 98 % (single string) |
|---|
| Service life | > 8500 cycles |
|---|
| Round-trip efficiency | > 95 % at 0.5 C |
|---|
| DC voltage range | 702 to 936 Vdc (single string) |
|---|
| Max. / continuous current | 200 / 157 A |
|---|
| AC output (PCS) | 400 Vac · 50 Hz · 181 A max |
|---|
| Overload capacity | 110 % |
|---|
| CEC efficiency (PCS) | 98 % |
|---|
| Cooling | Liquid (2.56 kW consumption) |
|---|
| Communication | Ethernet (Modbus TCP) |
|---|
| Protection rating | IP55 · C3 anti-corrosion (C5 optional) |
|---|
| Operating temperature | −25 to 50 °C · altitude ≤ 3000 m |
|---|
| Dimensions (W×D×H, excl. inverter) | 950 × 1300 × 2480 mm |
|---|
| Weight | 2.9 tonnes |
|---|
| Parallel connection | Up to 6 cabinets |
|---|
Configurations & capacities
The L260 Omni is modular: from 1 to 6 cabinets are connected in parallel to size the energy and power to the project.
| Number of cabinets |
Energy (kWh) |
Power (kW) |
| 1 | 260 | 125 |
| 2 | 520 | 250 |
| 3 | 780 | 375 |
| 4 | 1040 | 500 |
| 5 | 1300 | 625 |
| 6 | 1560 | 750 |
Safety & certifications
Safety-oriented design: intrinsically stable LFP chemistry, aerosol fire suppression, liquid-cooling thermal management and an IP55 rating for outdoor installation.
- Battery: IEC 62619, UL 1973, UL 9540A.
- PCS / system: IEC 62040-1, IEC 62477-1, VDE 2510-50.
- Grid & EMC: CE (EMC/LVD), EN 50549-1:2019, EN 50549-2:2019, IEC 61000-6-2.
