LFP chemistry
Lithium iron phosphate chemistry combines thermal stability, cobalt-free cells and a robust design for stationary storage.
Pylontech battery rangeLow-voltage modular storage

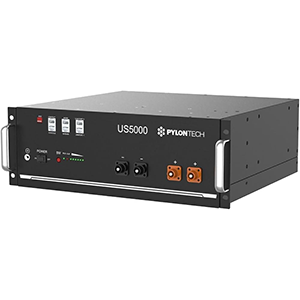

PYLONTECH US5000
A compact 48 V rack battery for self-consumption, backup and off-grid systems, with an integrated BMS and direct inverter communication.
- 4.8 kWh nominal
- 4.56 kWh usable
- 48 V / 100 Ah
- 80 A rated
One intelligent module, a scalable storage system
Each US5000 combines LFP cells, protection and communication. Modules are connected in parallel to increase energy while the master battery exchanges operating limits with the compatible inverter.
- Store4.8 kWh nominal energy per module
- ProtectIntegrated BMS supervises cells, current and temperature
- CommunicateCAN and RS485 interfaces for system integration
- ExpandParallel modules increase available storage capacity
The essentials for professional 48 V systems
95% usable energy
4.56 kWh of usable energy from a 4.8 kWh nominal module helps make full use of the installed capacity.
Rack format
A 442 mm wide module installs in a suitable rack, cabinet or dedicated Pylontech brackets.
Integrated BMS
Cell voltage, current, temperature, charge and discharge limits are supervised inside every battery module.
Inverter communication
CAN and RS485 ports allow the battery and an approved inverter to exchange status and operating limits.
Modular maintenance
Parallel architecture makes capacity extension and module-level service straightforward when the design rules are followed.
US5000

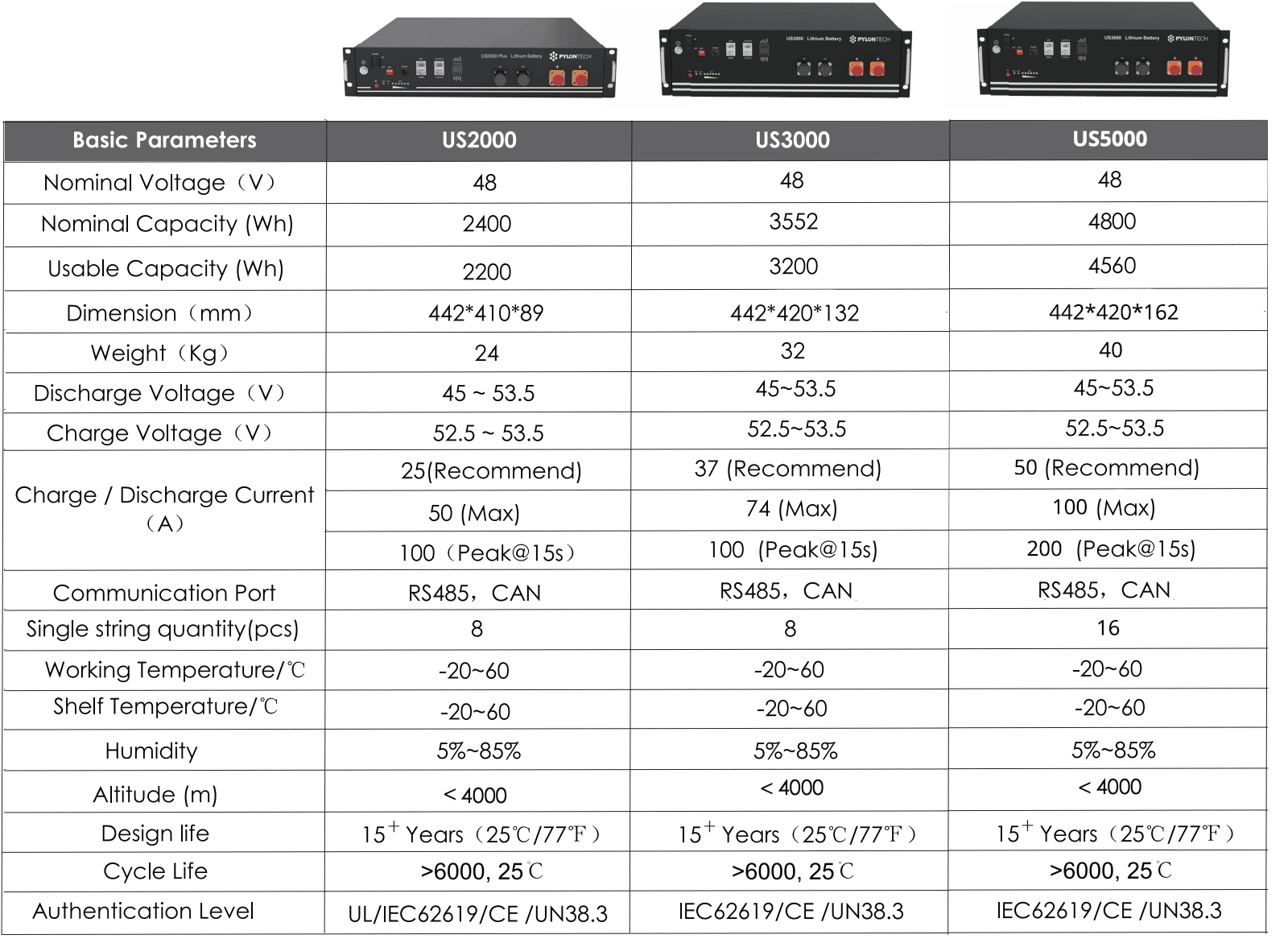

Electrical data
- Nominal energy
- 4.8 kWh
- Usable energy
- 4.56 kWh
- Nominal voltage
- 48 V
- Nominal capacity
- 100 Ah
- Charge voltage
- 52.5-53.5 V
- Discharge voltage
- 43.5-53.5 V
- Rated charge / discharge current
- 80 A
- Maximum charge / discharge current
- 120 A for 15 min
- Communication
- RS485 / CAN
Format and installation
A dense 19-inch-class rack module designed for indoor low-voltage battery systems.
- Cell chemistry
- LFP / LiFePO4
- Dimensions (W x D x H)
- 442 x 420 x 161 mm
- Net weight
- 39.7 kg
- Operating temperature
- -10 to +50 °C
- Protection class
- IP20
- Installation
- Rack, cabinet or dedicated brackets
Always size protection, cables and inverter settings for the complete battery bank.
Commission the US5000 only with an inverter profile and communication cable approved for the battery. Installation, DC protection, earthing and firmware configuration must be completed by a qualified professional in accordance with the current manuals.
Built for flexible residential and light-commercial storage
Solar storage
Self-consumption
Store surplus solar energy during the day and make it available when consumption exceeds PV production.
Backup system
Backup power
Maintain selected loads during a grid outage when paired with a compatible inverter/charger and correctly designed transfer system.
Off-grid design
Off-grid systems
Build a modular 48 V bank for remote homes, telecoms and professional sites without a reliable utility supply.
Energy capacity by number of modules
Indicative energy totals for identical US5000 modules connected as one correctly engineered parallel group.
| Modules | Nominal energy | Usable energy |
|---|---|---|
| 1 | 4.8 kWh | 4.56 kWh |
| 2 | 9.6 kWh | 9.12 kWh |
| 3 | 14.4 kWh | 13.68 kWh |
| 4 | 19.2 kWh | 18.24 kWh |
| 6 | 28.8 kWh | 27.36 kWh |
| 8 | 38.4 kWh | 36.48 kWh |
| 10 | 48 kWh | 45.6 kWh |
| 12 | 57.6 kWh | 54.72 kWh |
| 16 | 76.8 kWh | 72.96 kWh |

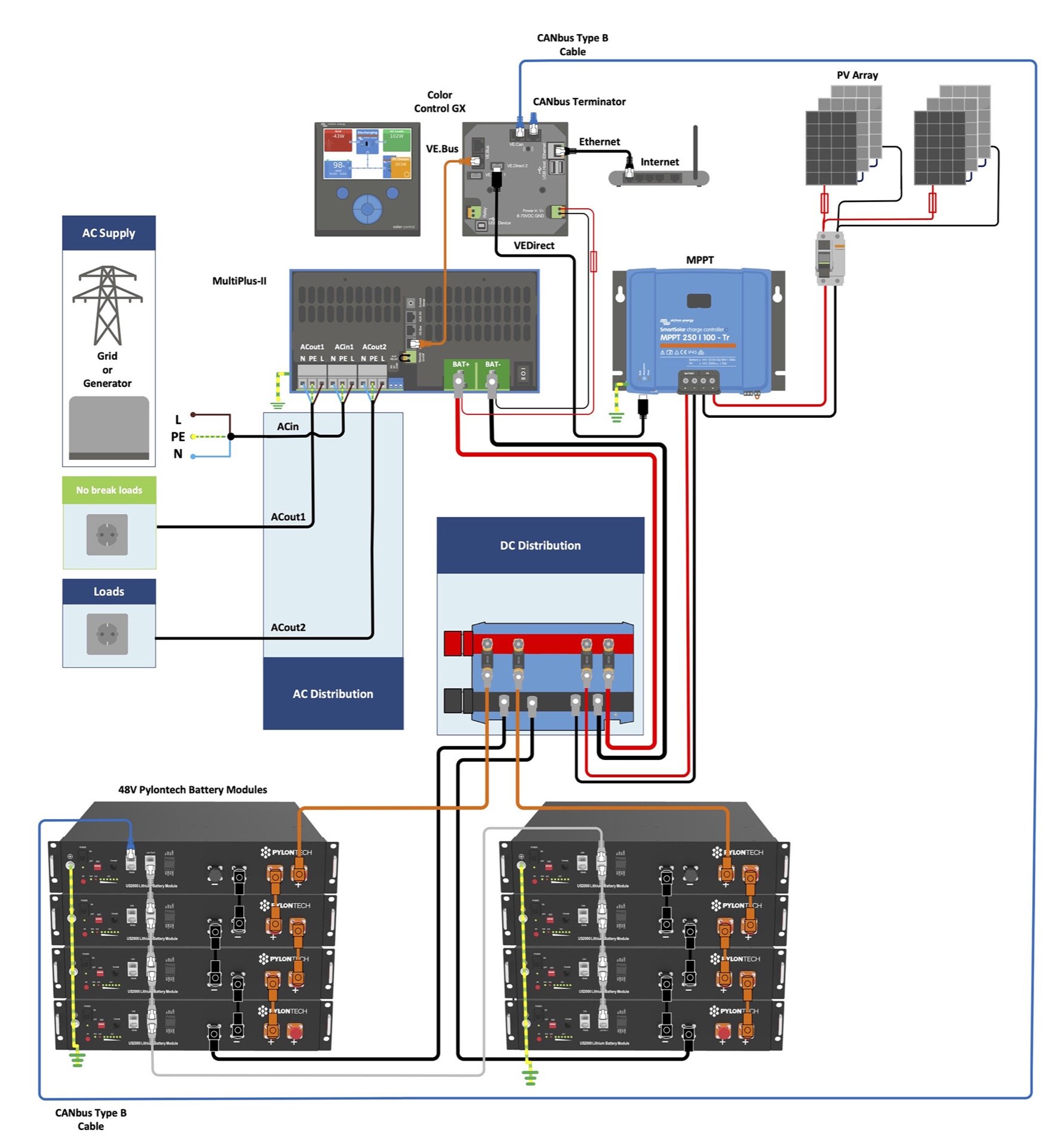

System integration
Inverter compatibility is a system-level decision
The inverter must support the US5000 battery protocol, the correct CAN cable and the required firmware. Victron publishes a dedicated, actively maintained integration guide for Pylontech US5000(B). For other manufacturers, use their current compatibility list and commissioning instructions.
Open the Victron integration guideOfficial product information and integration guides
Pylontech product data
Current manufacturer product family page with US5000 electrical, mechanical and operating data.
Open product page
Pylontech download centre
US5000 manuals, certificates and regional warranty documents published by Pylontech.
Open downloadsVictron integration guide
Current compatibility, CAN connection, firmware and system-sizing guidance for Victron installations.
Open guideWorldwide B2B export
Request a quotationPlanning a US5000 battery bank?
Send us the inverter model, required usable energy, peak load, installation country and desired autonomy. We will check the architecture and prepare an export quotation.
Technical sources: Pylontech residential rack battery product data · Pylontech US5000 downloads · Victron + Pylontech integration guide. Technical data checked against current Pylontech information on 30 August 2026.
