Architecture
NEXT3 integrates three-phase conversion, battery charging, transfer and two independent solar MPPT inputs. Wall and 19-inch rack versions share the same electrical platform.
Complete Studer rangeProduct family · Studer Innotec

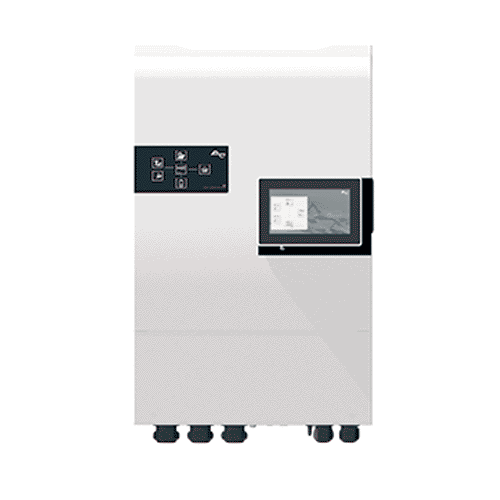

Studer NEXT3
Three-phase all-in-one inverter/charger with two high-voltage MPPT inputs and 15 kVA continuous output.
- 15 kVA continuous
- 2 × 8 kW MPPT
- 48 Vdc · 3-phase
Studer NEXT3 — Architecture
System integration

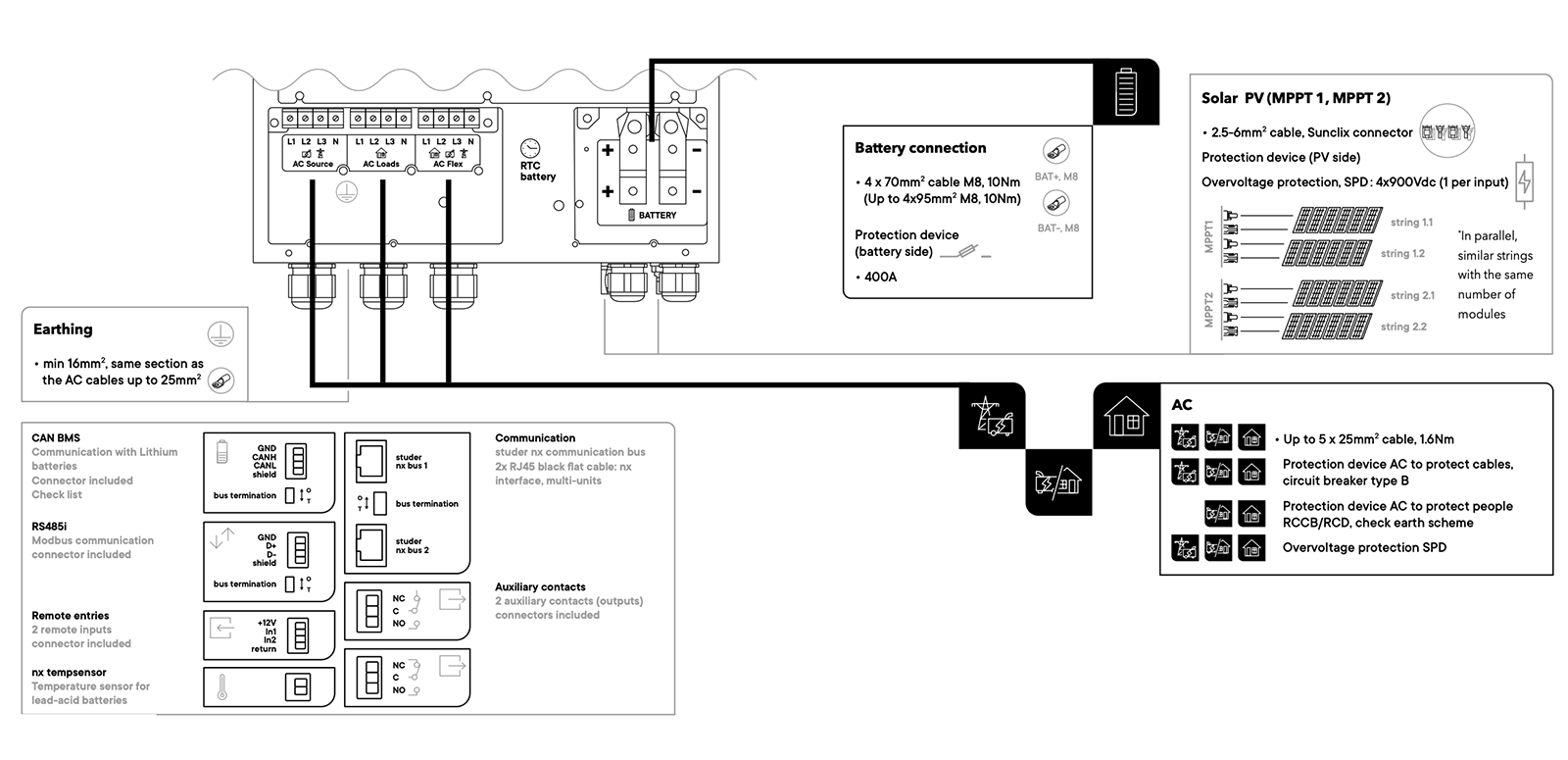

CAN BMS, RS485i, LAN, USB and the nx communication bus connect batteries, meters, monitoring and parallel units.
Applications
For large three-phase hybrid, backup and off-grid systems; up to three units can form 45 kVA installations.
Models and technical data
Compare the current models, ratings and product codes in the range.
| Model | Product code | Mounting | Continuous | 30 min | 5 sec solar / inverter / 1-phase | Solar output | Weight |
|---|---|---|---|---|---|---|---|
| nx3 16000-48 | 108426 | Wall | 15 000 VA | 16 000 VA | 30 000 / 24 000 / 10 000 VA | 2 × 8 000 W | 58 kg |
| nx3 16000-48-rack | 117204 | 19-inch rack | 15 000 VA | 16 000 VA | 30 000 / 24 000 / 10 000 VA | 2 × 8 000 W | 58 kg |
