SINES - SMA - Sunny Island 6.0H / 8.0H battery inverter


SMA Sunny Island
6.0H / 8.0H


  • Category: Inverter/chargers
  • Brand: SMA

The most reliable all-purpose solution, easier than ever

The Sunny Island operates reliably even in the most extreme conditions, without compromising on cost-effectiveness. It delivers an exceptionally high overload capacity, a secure energy supply in the most critical situations and an optimum IP54 protection class for operation in harsh environments.

SI
6.0H-13

6000 VA, 48 V

 SI
8.0H-13

8000 VA, 48 V

 SI Battery Temp.-Sensor

Option for Master unit
MC-Box 6.3-11

Up to 6 × SI 8.0H

 MC-Box 12.3-20

Up to 12 × SI 8.0H

 MC-Box 36.3-11

Up to 36 × SI 8.0H
Also available: SMA Sunny Island 4.4M-13
B2B export pricing: worldwide shipping, full SMA range

SMA Sunny Island: the all-purpose battery inverter for off-grid and backup

Whether it is deployed in regions far from the grid or in homes connected to the public utility, the Sunny Island battery inverter is suited to every situation. Users benefit from the experience of more than 120,000 Sunny Island units installed all over the world. Thanks to its integrated web interface and the standard WLAN and Ethernet interfaces, the Sunny Island 4.4M / 6.0H / 8.0H is easy to configure and monitor from a smartphone or tablet. As a key component of the SMA Flexible Storage System, the Sunny Island temporarily stores self-generated power, enabling solar electricity to be used around the clock. Its high protection class, wide temperature range and overload capacity continuously ensure the level of safety required by off-grid installations. Intelligent load and energy management keeps the system running even in critical situations.

Possible system configurations with the Sunny Island 4.4M / 6.0H / 8.0H

  • Single-phase system with one SI 4.4M, SI 6.0H or SI 8.0H for systems from 1 kW to 8 kW.
  • Single cluster, single-phase with 3 SI 6.0H or SI 8.0H connected in parallel on the same phase, for systems up to 24 kW.
  • Single cluster, three-phase, made up of 3 SI 6.0H or SI 8.0H each connected to one phase, to build systems up to 24 kW.
  • Multicluster, three-phase, made up of three SI 6.0H or SI 8.0H inverters per cluster, to build systems up to 300 kW.

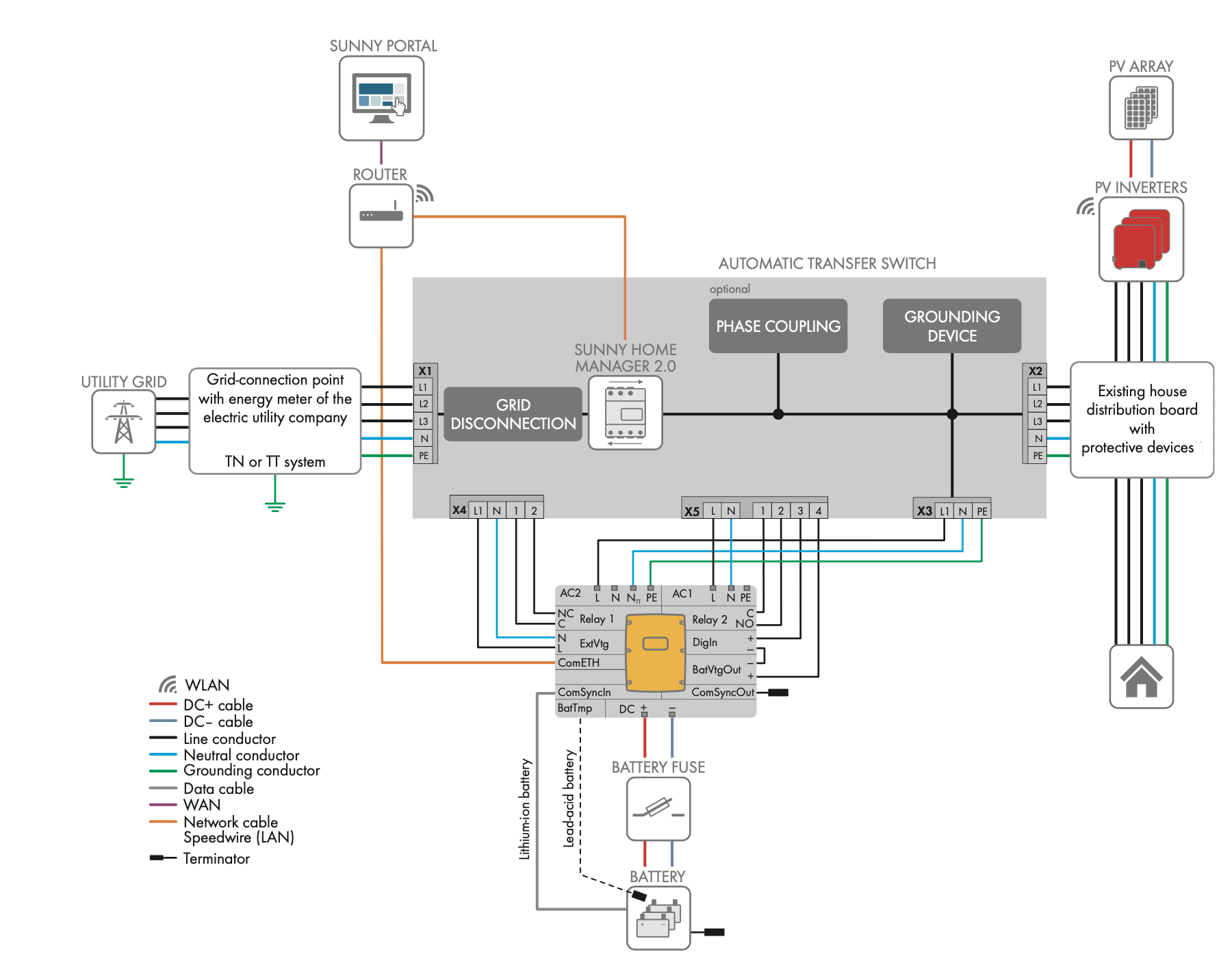

SINES - SMA - Sunny Island system overview

Highlights

  • A truly all-purpose battery inverter, backed by a 10-year warranty.
  • Modular upgrade and extension capability for single-phase and three-phase systems from 1 to 30 kilowatts.
  • Compatible with all lead-acid batteries and more than 20 different lithium-ion batteries.
  • Scalable with SMA Multicluster technology for systems from 20 to 300 kilowatts.

The high protection class, the wide temperature range and the very high overload capacity continuously ensure a reliable energy supply for off-grid installations. Intelligent load and energy management keeps the system running even in critical situations and starts every load, even in the event of high inrush currents or unfavourable ambient conditions.

SINES - SMA - Sunny Island and MC-Box wiring diagram

Power diagram of a cluster of 6 Sunny Island units with one SMA MC-Box 6.3  source: https://www.sma.de/

References & article codes

Order numberDescriptionNet weightOrigin
SI6.0H-13Sunny Island 6.0H battery inverter, 6000 VA, 48 V63 kgGermany
SI8.0H-13Sunny Island 8.0H battery inverter, 8000 VA, 48 V63 kgGermany
SI4.4M-13Sunny Island 4.4M battery inverter, 4600 VA, 48 V44 kgGermany
BAT-TEMP-SENSORSI Battery Temperature Sensor (option for Master unit), Germany
MC-BOX-6.3-11Multicluster Box 6.3, up to 6 × Sunny Island (to 36 kW)55 kgGermany
MC-BOX-12.3-20Multicluster Box 12.3, up to 12 × Sunny Island (to 72 kW)140 kgGermany
MC-BOX-36.3-11Multicluster Box 36.3, up to 36 × Sunny Island (to 300 kW)300 kgGermany
