SINES - SMA - Multicluster Box for Sunny Island


SMA Multicluster Box
6.3 / 12.3 / 36.3


  • Category: Inverter/chargers
  • Brand: SMA

For easy set-up of stand-alone and hybrid systems

With the SMA Multicluster-Boxes for Sunny Island battery inverters, both off-grid systems and battery-backup systems can be configured easily and cost-efficiently, from 20 kW up to 300 kW, with all units fully wired at the factory.

MC-Box 6.3-11

2 clusters of 3 SI

 MC-Box 12.3-20

4 clusters of 3 SI

 MC-Box 36.3-11

12 clusters of 3 SI
Off-grid and hybrid systems from 20 kW to 300 kW
B2B export pricing: worldwide shipping, full SMA range

Easy setup of powerful off-grid systems

In regions without grid access, powerful off-grid and hybrid systems can be installed based on proven technology: 2 to 12 three-phase clusters, each consisting of 3 Sunny Island inverters, deliver up to 360 kW of output capacity.

To simplify installation, all Multicluster-Boxes are completely wired at the factory and have a dedicated connection interface for generator sets, load distribution and renewable energy systems. This makes them ideal for businesses and for supplying electricity to rural regions, with or without grid access.

Highlights

  • Three power classes, from 20 kW to 300 kW
  • Integrated AC distribution for Sunny Island, generator and PV
  • Integrated load-shedding contactor
  • Automatic bypass for the PV generator
  • Active anti-islanding and reverse-current monitoring
  • High protection classes, 5-year SMA warranty

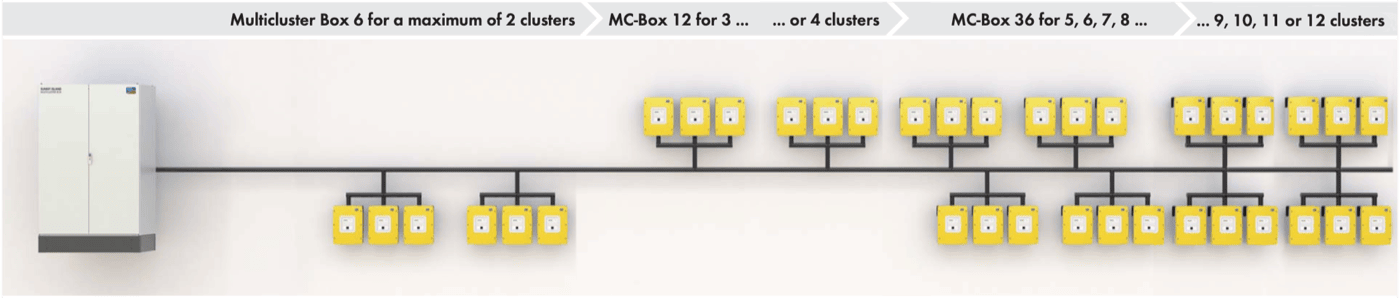

SINES - SMA - Off-grid system built from clusters of three Sunny Island inverters and an SMA Multicluster Box

Off-grid system built from clusters of three Sunny Island inverters and an SMA Multicluster Box

SINES - SMA - Power diagram of a cluster of 6 Sunny Island units with one SMA MC-Box 6.3

Power diagram of a cluster of 6 Sunny Island units with one SMA MC-Box 6.3

References & article codes

Order numberDescriptionNet weightOrigin
MC-Box-6.3-11Multicluster Box 6.3, up to 2 clusters (6 Sunny Island), 55 kW55 kgGermany
MC-Box-12.3-20Multicluster Box 12.3, up to 4 clusters (12 Sunny Island), 138 kW200 kgGermany
MC-Box-36.3-11Multicluster Box 36.3, up to 12 clusters (36 Sunny Island), 300 kW400 kgGermany
