GRUNDFOS CRE 32

Surface pumps: Grundfos CRE

Head at Q=0 up to: 262 m · Official curve up to: 44 m³/h · Three-phase · 50 Hz selection

The Grundfos CRE 32 is an electronic variable-speed vertical multistage centrifugal pump with an integrated IE5 motor drive. Pump head and base are cast iron; the other wetted hydraulic components are AISI 304 stainless steel. Standard HQQE mechanical seal.

CRE 32-1-1 Head at Q=0: 23 m P2: 2.2 kW	CRE 32-1 Head at Q=0: 30 m P2: 3 kW	CRE 32-2-1 Head at Q=0: 52 m P2: 5.5 kW
CRE 32-2 Head at Q=0: 59 m P2: 7.5 kW	CRE 32-4-2 Head at Q=0: 104 m P2: 11 kW	CRE 32-5-2 Head at Q=0: 133 m P2: 15 kW
CRE 32-6 Head at Q=0: 175 m P2: 18.5 kW	CRE 32-7 Head at Q=0: 204 m P2: 22 kW	CRE 32-8 Head at Q=0: 233 m P2: 26 kW
CRE 32-9 Head at Q=0: 262 m P2: 26 kW
Worldwide B2B pump supply and export

This selection covers CRE only: standard AISI 304 hydraulics, HQQE seal and three-phase supply for 50 Hz systems. CRIE, CRNE, single-phase, HQQV and prices are excluded.

The official catalogue supply is 3 × 380–500 V, 3 × 380–480 V or 3 × 400–480 V depending on motor power. The exact range is shown for every article code and covers the applicable part of European 380–415 V networks.

Numeric head values are read at Q=0 from the official 2026 Grundfos vector curves at maximum curve speed and rounded to the nearest metre. They support comparison and preselection.

Use Grundfos Product Center or the product datasheet for contractual duty-point sizing. No prices are published on this page.

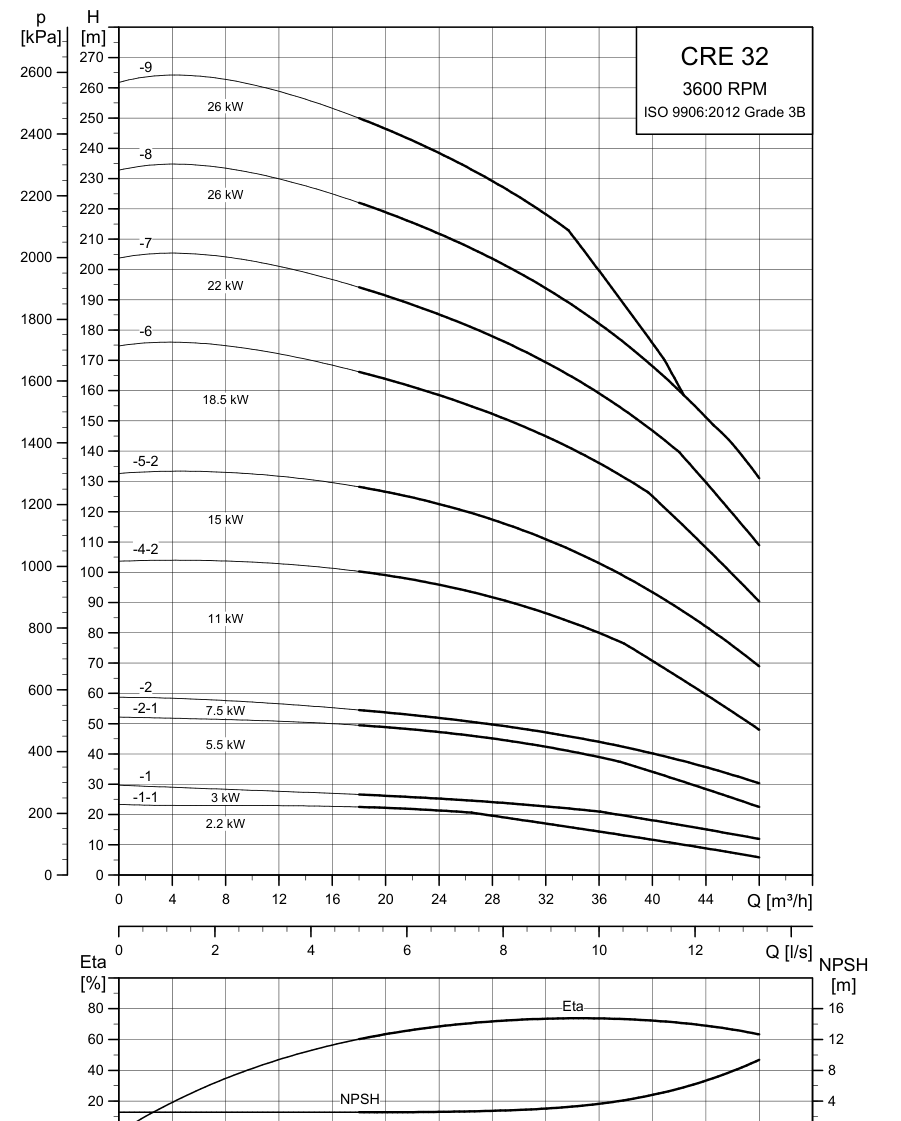

Grundfos CRE 32 official 2026 hydraulic curves

Official Grundfos CRE 32 hydraulic curves from the 2026 catalogue, ISO 9906:2012 Grade 3B. Numeric table values correspond to the Q=0 curve intercept, rounded to the nearest metre.

Open Grundfos Product Center →

References & article codes

Standard Grundfos CRE 32 catalogue references: AISI 304 hydraulics, HQQE seal, three-phase 50 Hz. Versions with and without the official pressure sensor are distinguished. No prices are published.

Article code	Designation	Head at Q=0 [m]	P2 [kW]	Supply	Pressure sensor	Connection
98390932	CRE 32-1-1	23	2.2	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
98390933	CRE 32-1-1	23	2.2	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN65 (F)
99071938	CRE 32-1	30	3	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
99071957	CRE 32-1	30	3	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN65 (F)
99071942	CRE 32-2-1	52	5.5	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
99071958	CRE 32-2-1	52	5.5	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN65 (F)
99071953	CRE 32-2	59	7.5	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
99071959	CRE 32-2	59	7.5	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN65 (F)
99071955	CRE 32-4-2	104	11	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
99071960	CRE 32-4-2	104	11	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN65 (F)
92962185	CRE 32-5-2	133	15	3 × 380–480 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
92962201	CRE 32-5-2	133	15	3 × 380–480 V · 50 Hz	With sensor	DIN flanges DN65 (F)
92962188	CRE 32-6	175	18.5	3 × 380–480 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
92962203	CRE 32-6	175	18.5	3 × 380–480 V · 50 Hz	With sensor	DIN flanges DN65 (F)
92962200	CRE 32-7	204	22	3 × 380–480 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
92962204	CRE 32-7	204	22	3 × 380–480 V · 50 Hz	With sensor	DIN flanges DN65 (F)
93189839	CRE 32-8	233	26	3 × 400–480 V · 50 Hz	Without sensor	DIN flanges DN65 (F)
93190291	CRE 32-9	262	26	3 × 400–480 V · 50 Hz	Without sensor	DIN flanges DN65 (F)

Grundfos CRE · Variable speed · 50 Hz

Scope: CRE only, standard AISI 304 hydraulics, HQQE seal and three-phase 50 Hz supply. Each page states the exact catalogue voltage, official 2026 curves, numeric head at Q=0, pressure-sensor variants and article codes. No prices are shown.
