GRUNDFOS CRE 10

Surface pumps: Grundfos CRE

Head at Q=0 up to: 241 m · Official curve up to: 17 m³/h · Three-phase · 50 Hz selection

The Grundfos CRE 10 is an electronic variable-speed vertical multistage centrifugal pump with an integrated IE5 motor drive. Pump head and base are cast iron; the other wetted hydraulic components are AISI 304 stainless steel. Standard HQQE mechanical seal.

CRE 10-1 Head at Q=0: 18 m P2: 0.75 kW	CRE 10-2 Head at Q=0: 37 m P2: 1.5 kW	CRE 10-3 Head at Q=0: 55 m P2: 2.2 kW
CRE 10-4 Head at Q=0: 74 m P2: 3 kW	CRE 10-5 Head at Q=0: 92 m P2: 4 kW	CRE 10-7 Head at Q=0: 129 m P2: 5.5 kW
CRE 10-9 Head at Q=0: 166 m P2: 7.5 kW	CRE 10-13 Head at Q=0: 241 m P2: 11 kW
Worldwide B2B pump supply and export

This selection covers CRE only: standard AISI 304 hydraulics, HQQE seal and three-phase supply for 50 Hz systems. CRIE, CRNE, single-phase, HQQV and prices are excluded.

The official catalogue supply is 3 × 380–500 V, 3 × 380–480 V or 3 × 400–480 V depending on motor power. The exact range is shown for every article code and covers the applicable part of European 380–415 V networks.

Numeric head values are read at Q=0 from the official 2026 Grundfos vector curves at maximum curve speed and rounded to the nearest metre. They support comparison and preselection.

Use Grundfos Product Center or the product datasheet for contractual duty-point sizing. No prices are published on this page.

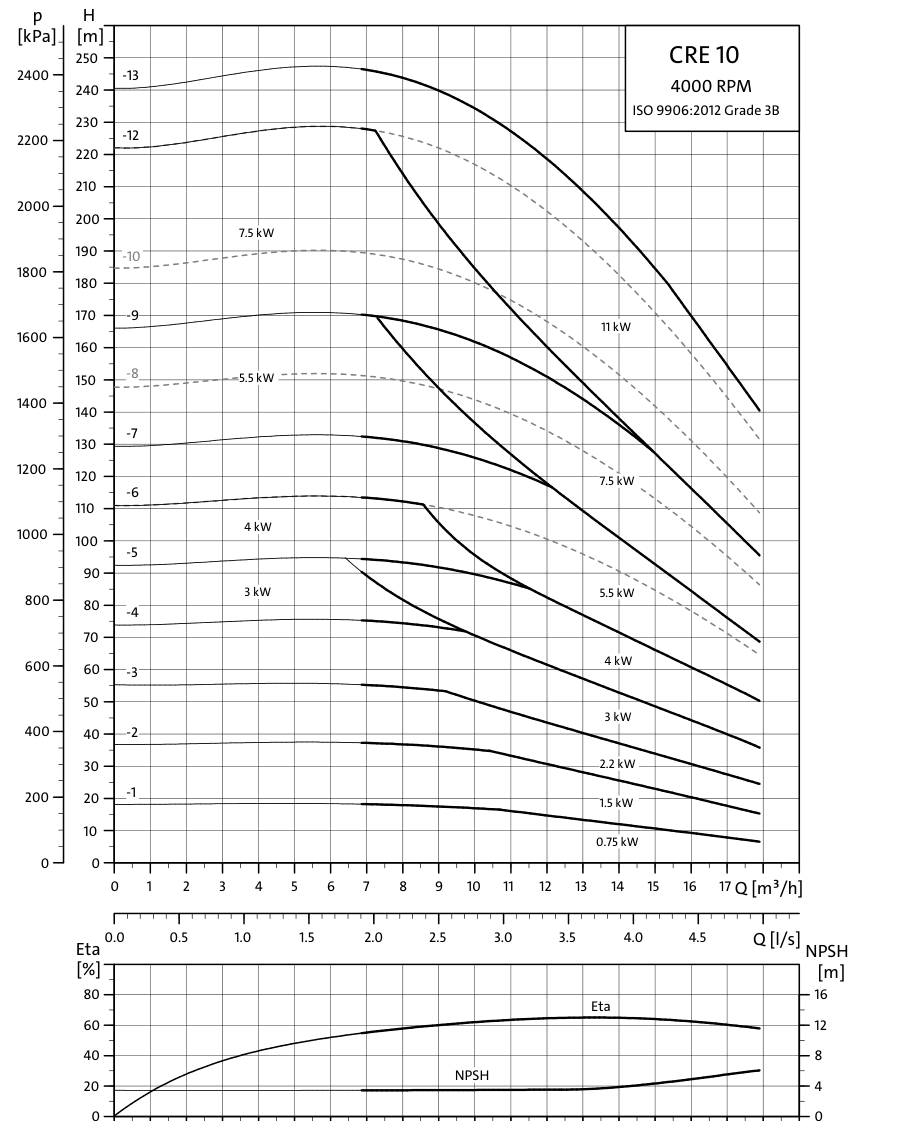

Grundfos CRE 10 official 2026 hydraulic curves

Official Grundfos CRE 10 hydraulic curves from the 2026 catalogue, ISO 9906:2012 Grade 3B. Numeric table values correspond to the Q=0 curve intercept, rounded to the nearest metre.

Open Grundfos Product Center →

References & article codes

Standard Grundfos CRE 10 catalogue references: AISI 304 hydraulics, HQQE seal, three-phase 50 Hz. Versions with and without the official pressure sensor are distinguished. No prices are published.

Article code	Designation	Head at Q=0 [m]	P2 [kW]	Supply	Pressure sensor	Connection
93148901	CRE 10-1	18	0.75	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 2 (A)
93148980	CRE 10-1	18	0.75	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149081	CRE 10-1	18	0.75	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 2 (A)
93149116	CRE 10-1	18	0.75	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93148903	CRE 10-2	37	1.5	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 2 (A)
93148981	CRE 10-2	37	1.5	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149082	CRE 10-2	37	1.5	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 2 (A)
93149117	CRE 10-2	37	1.5	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93148904	CRE 10-3	55	2.2	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 2 (A)
93148983	CRE 10-3	55	2.2	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149084	CRE 10-3	55	2.2	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 2 (A)
93149169	CRE 10-3	55	2.2	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93148906	CRE 10-4	74	3	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 2 (A)
93148984	CRE 10-4	74	3	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149085	CRE 10-4	74	3	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 2 (A)
93149230	CRE 10-4	74	3	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93148908	CRE 10-5	92	4	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 2 (A)
93148986	CRE 10-5	92	4	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149087	CRE 10-5	92	4	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 2 (A)
93149232	CRE 10-5	92	4	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93148931	CRE 10-7	129	5.5	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 2 (A)
93148988	CRE 10-7	129	5.5	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149089	CRE 10-7	129	5.5	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 2 (A)
93149234	CRE 10-7	129	5.5	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93149000	CRE 10-9	166	7.5	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93149236	CRE 10-9	166	7.5	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)
93149005	CRE 10-13	241	11	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN40 (FJ)
93156000	CRE 10-13	241	11	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN40 (FJ)

Grundfos CRE · Variable speed · 50 Hz

Scope: CRE only, standard AISI 304 hydraulics, HQQE seal and three-phase 50 Hz supply. Each page states the exact catalogue voltage, official 2026 curves, numeric head at Q=0, pressure-sensor variants and article codes. No prices are shown.
