GRUNDFOS CRE 1

Surface pumps: Grundfos CRE

Head at Q=0 up to: 240 m · Official curve up to: 3.2 m³/h · Three-phase · 50 Hz selection

The Grundfos CRE 1 is an electronic variable-speed vertical multistage centrifugal pump with an integrated IE5 motor drive. Pump head and base are cast iron; the other wetted hydraulic components are AISI 304 stainless steel. Standard HQQE mechanical seal.

CRE 1-3 Head at Q=0: 34 m P2: 0.37 kW	CRE 1-5 Head at Q=0: 57 m P2: 0.55 kW	CRE 1-6 Head at Q=0: 69 m P2: 0.75 kW
CRE 1-9 Head at Q=0: 103 m P2: 1.1 kW	CRE 1-12 Head at Q=0: 137 m P2: 1.5 kW	CRE 1-17 Head at Q=0: 194 m P2: 2.2 kW
CRE 1-21 Head at Q=0: 240 m P2: 3 kW
Worldwide B2B pump supply and export

This selection covers CRE only: standard AISI 304 hydraulics, HQQE seal and three-phase supply for 50 Hz systems. CRIE, CRNE, single-phase, HQQV and prices are excluded.

The official catalogue supply is 3 × 380–500 V, 3 × 380–480 V or 3 × 400–480 V depending on motor power. The exact range is shown for every article code and covers the applicable part of European 380–415 V networks.

Numeric head values are read at Q=0 from the official 2026 Grundfos vector curves at maximum curve speed and rounded to the nearest metre. They support comparison and preselection.

Use Grundfos Product Center or the product datasheet for contractual duty-point sizing. No prices are published on this page.

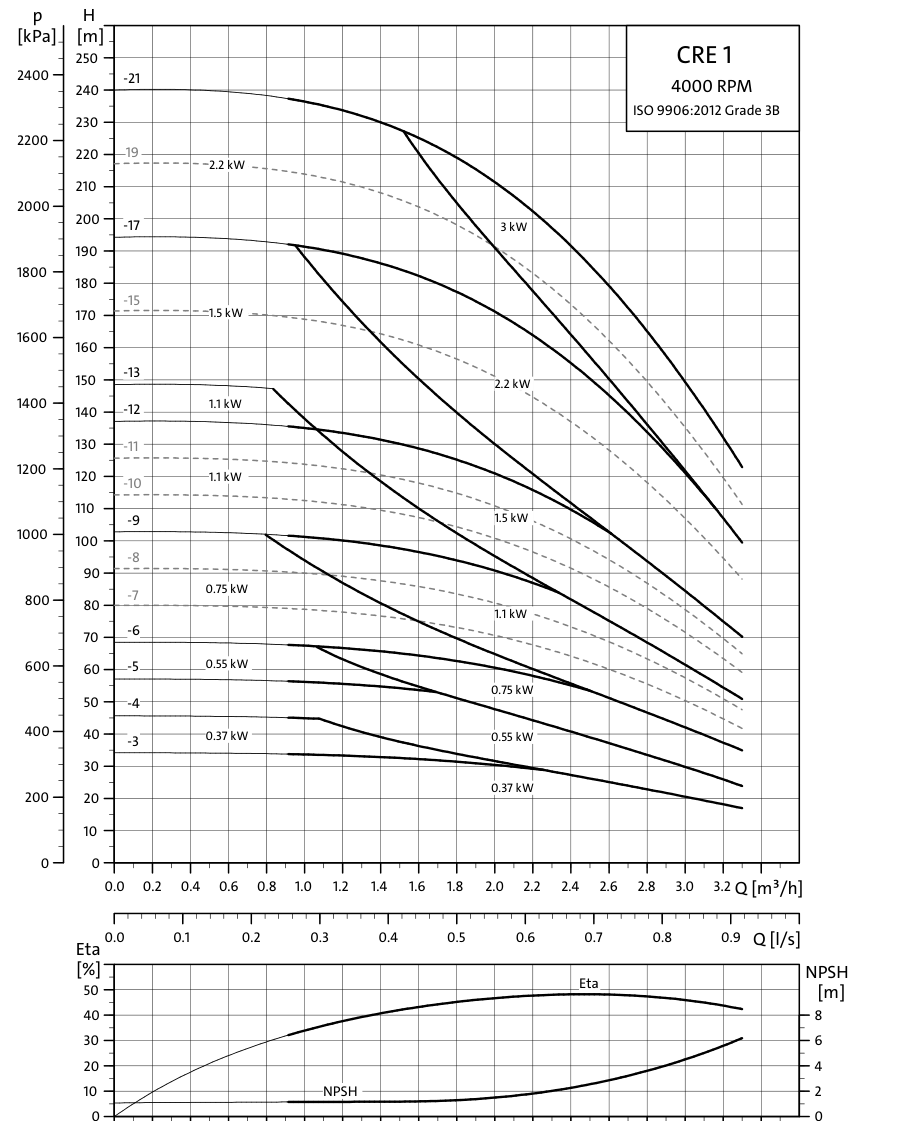

Grundfos CRE 1 official 2026 hydraulic curves

Official Grundfos CRE 1 hydraulic curves from the 2026 catalogue, ISO 9906:2012 Grade 3B. Numeric table values correspond to the Q=0 curve intercept, rounded to the nearest metre.

Open Grundfos Product Center →

References & article codes

Standard Grundfos CRE 1 catalogue references: AISI 304 hydraulics, HQQE seal, three-phase 50 Hz. Versions with and without the official pressure sensor are distinguished. No prices are published.

Article code	Designation	Head at Q=0 [m]	P2 [kW]	Supply	Pressure sensor	Connection
93146487	CRE 1-3	34	0.37	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 1 (A)
93146573	CRE 1-3	34	0.37	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146667	CRE 1-3	34	0.37	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 1 (A)
93146762	CRE 1-3	34	0.37	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)
93146489	CRE 1-5	57	0.55	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 1 (A)
93146575	CRE 1-5	57	0.55	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146669	CRE 1-5	57	0.55	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 1 (A)
93146764	CRE 1-5	57	0.55	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)
93146491	CRE 1-6	69	0.75	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 1 (A)
93146579	CRE 1-6	69	0.75	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146681	CRE 1-6	69	0.75	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 1 (A)
93146766	CRE 1-6	69	0.75	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)
93146496	CRE 1-9	103	1.1	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 1 (A)
93146581	CRE 1-9	103	1.1	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146683	CRE 1-9	103	1.1	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 1 (A)
93146768	CRE 1-9	103	1.1	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)
93146500	CRE 1-12	137	1.5	3 × 380–500 V · 50 Hz	Without sensor	Oval flanges Rp 1 (A)
93146582	CRE 1-12	137	1.5	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146684	CRE 1-12	137	1.5	3 × 380–500 V · 50 Hz	With sensor	Oval flanges Rp 1 (A)
93146769	CRE 1-12	137	1.5	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)
93146587	CRE 1-17	194	2.2	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146772	CRE 1-17	194	2.2	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)
93146590	CRE 1-21	240	3	3 × 380–500 V · 50 Hz	Without sensor	DIN flanges DN25/DN32 (FGJ)
93146774	CRE 1-21	240	3	3 × 380–500 V · 50 Hz	With sensor	DIN flanges DN25/DN32 (FGJ)

Grundfos CRE · Variable speed · 50 Hz

Scope: CRE only, standard AISI 304 hydraulics, HQQE seal and three-phase 50 Hz supply. Each page states the exact catalogue voltage, official 2026 curves, numeric head at Q=0, pressure-sensor variants and article codes. No prices are shown.
