Grundfos SQE 7 3-inch AISI 304 submersible pump


GRUNDFOS SQE 7


  • Category: Submersible pumps

Nominal head up to: 57 m - Flow up to: 9 m³/h - 3-inch - AISI 304

The Grundfos SQE 7 is a compact variable-speed 3-inch multistage submersible pump with integrated frequency converter for clean water and constant-pressure systems. It can communicate with CU 300 or CU 302. Connection: Rp 1 1/2.


SQE 7-15

Nominal head: 9 m
Flow range: 0-9 m³/h

 SQE 7-30

Nominal head: 23 m
Flow range: 0-9 m³/h

 SQE 7-40

Nominal head: 37 m
Flow range: 0-9 m³/h
SQE 7-55

Nominal head: 57 m
Flow range: 0-9 m³/h


Worldwide B2B pump supply and export

Grundfos SQE 7 pumps combine pump, permanent-magnet motor, integrated frequency converter and protections in a slim 76 mm design.

Variable-speed operation supports constant-pressure systems and communication with an external CU 300 or CU 302 control unit. Supply is 1 × 200–240 V, 50/60 Hz.

This page lists the standard AISI 304 catalogue references only. Prices, N variants, conjuntos, kits and accessories are excluded.

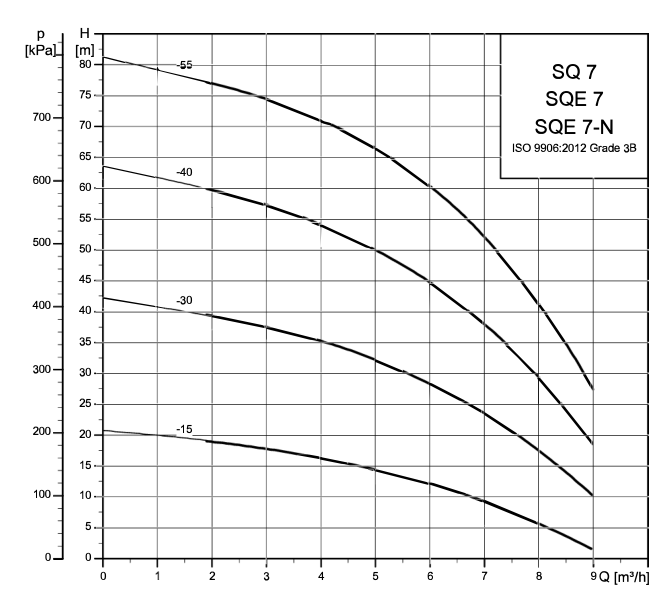

Grundfos SQ / SQE 7 official hydraulic curves

Official Grundfos SQ / SQE 7 hydraulic curves, ISO 9906:2012 Grade 3B. The table gives the exact nominal head published for each reference. Use Grundfos Product Center or the product datasheet for contractual duty-point selection.



Open Grundfos Product Center →

Grundfos SQ / SQE official overall performance range

Official overall performance range for Grundfos SQ and SQE pumps. This selection covers the standard AISI 304 families SQ/SQE 1, 2, 3, 5 and 7.




References & article codes

Standard Grundfos SQE 7 AISI 304 pump references, 1 × 200–240 V, 50/60 Hz. No prices are published. Alternative cable lengths shown below are official catalogue references.

Article codeDesignationNominal head [m]P2 [kW]In [A]Cable [m]Connection
96510169SQE 7-1590.73.71.5Rp 1 1/2
96510170SQE 7-30231.156.41.5Rp 1 1/2
96510171SQE 7-40371.559.31.5Rp 1 1/2
93001549SQE 7-55571.8510.91.5Rp 1 1/2
