SINES - FUJI FRENIC ACE - solar pump inverter


FRENIC-Ace

for Solar Pumping


Solar pump drives for 1.5kW to 280kW 3 phases pumps

With its high reliability and long lifespan, you can profit from quiet and automatic functions and easily extendable capacities of the FRENIC-Ace for Solar Pumping. FRENIC-Ace solar pumping solutions come with a simple installation, easy start up and require minimum maintenance.


FRN0006E2E-4GA-CLI-SOL

FRENIC ACE Version Solar 400V 1.5kw, 2.2kw

 FRN0007E2E-4GA-CLI-SOL

FRENIC ACE Version Solar 400V 3kw HND
FRN0012E2E-4GA-CLI-SOL

FRENIC ACE Version Solar 400V 4kw, 5.5kw HND

 FRN0022E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 7.5 kw HND
FRN0029E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 11 kw HND

 FRN0037E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 15 kw HND
FRN0044E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 18.5 kw HND

 FRN0059E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 22 kw HND
FRN0072E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 30 kw HND

 FRN0085E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 37 kw HND
FRN0105E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 45 kw HND

 FRN0139E2E-4E-CLI-SOL

FRENIC ACE Version Solar 400V 55 kw HND
FRENIC ACE Version Solar 400V 75 kw HND

FRENIC ACE Version Solar 400V 75 kw HND

 FRENIC ACE Version Solar 400V 90 kw HND

FRENIC ACE Version Solar 400V 90 kw HND
FRENIC ACE Version Solar 400V 110 kw HND

FRENIC ACE Version Solar 400V 110 kw HND

 TP-A1-E2C

Console/Display for FRENIC ACE
Solar pumping systems for reliable Water Supply in Africa

The FRENIC ACE solar drive for solar pumping operation is designed to drive a three-phase induction motor or a three-phase permanent magnet synchronous motor under variable speed control.The FRENIC ACE can be used in existing systems with submersible pumps, this providing a very wide range of applications allowing you to leverage renewable energy sources with the ability to back up the system with grid or generator power.

Embedded, pump-specific features such as dry run detection, water tank level control, detection of sudden changes of conditions (especially irradiance) and low power function are used to protect and monitor the system.

The complete system consists of three components: Photovoltaic modules, FRENIC ACE variable speed drives and a 3 phases pump.



The built-in maximum power point tracking functionality enables the pump to run at maximum power using available solar power. It is independent from the grid and produces no pollution or noise.

The FRENIC ACE solar pump drive can also operate from the grid or a diesel generator when there is not enough sunlight to run the pump.

The ability to operate on both solar (DC power) and the grid (conventional AC power) is the greatest advantage of FUJI’s solar pump drive.

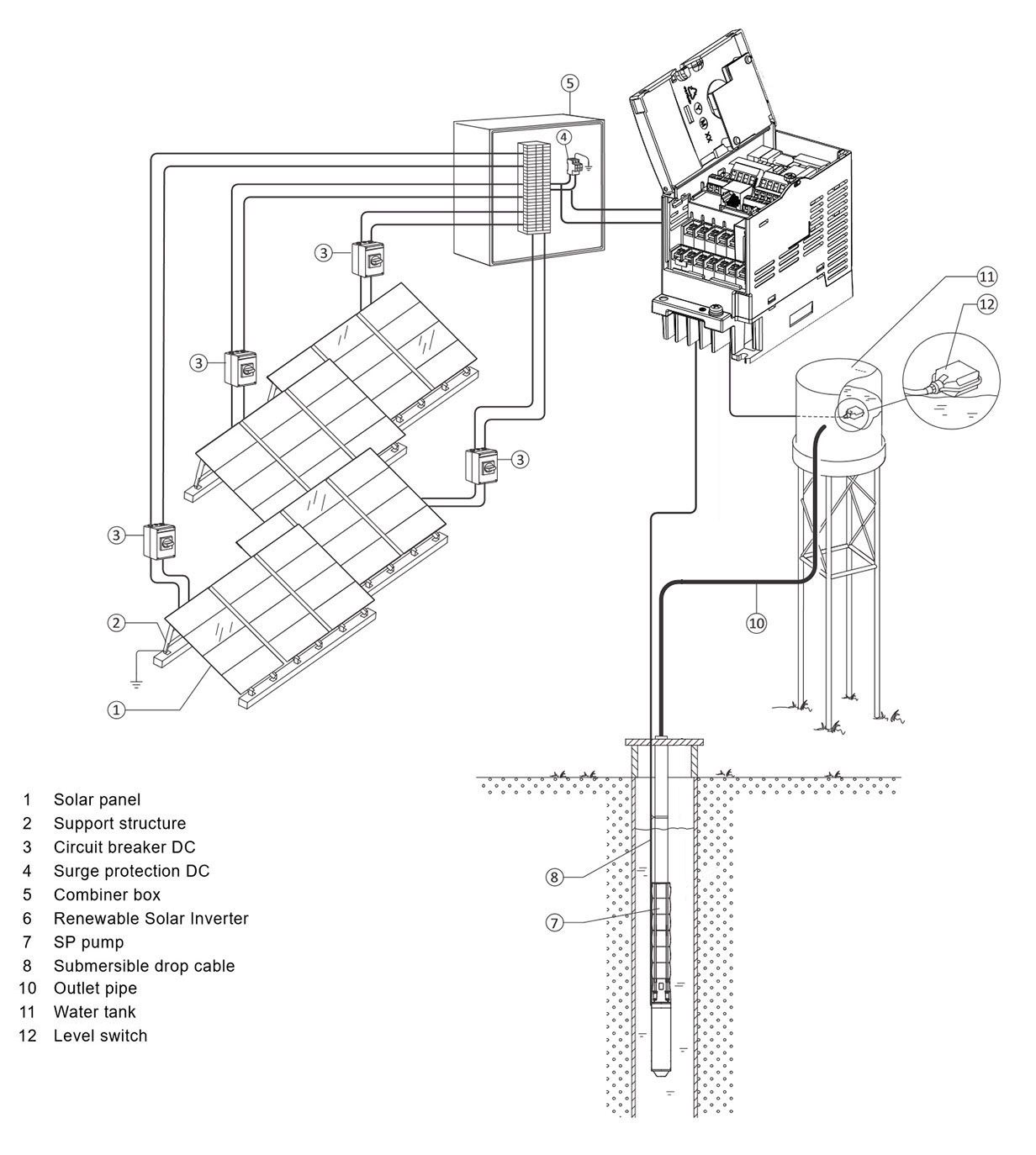

SINES - Frenic Ace wiring
