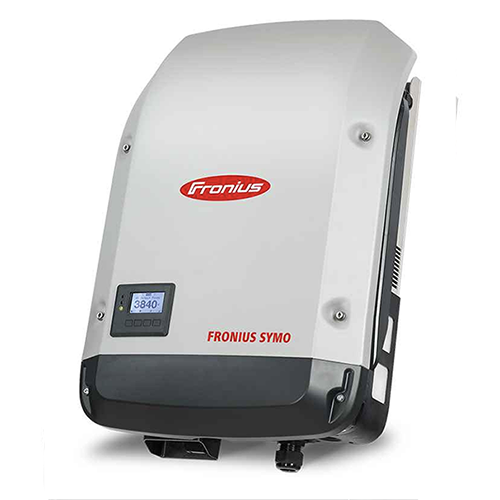

SINES - Fronius Symo - three-phase PV inverter


FRONIUS
SYMO
SYMO LIGHT


  • Category: Three-phase PV inverter

With power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the right three-phase inverter for systems of every size.


FRONIUS SYMO - THREE-PHASE PV INVERTER
SYMO 3.0-3-S

3,000 W

 SYMO 3.7-3-S

3,700 W

 SYMO 4.5-3-S

4,500 W
SYMO 3.0-3-M

3,000 W

 SYMO 3.7-3-M

3,700 W

 SYMO 4.5-3-M

4,500 W
SYMO 5.0-3-M

5,000 W

 SYMO 6.0-3-M

6,000 W

 SYMO 7.0-3-M

7,000 W
SYMO 8.2-3-M

8,200 W

 SYMO 10.0-3-M

10,000 W

 SYMO 12.5-3-M

12,500 W
SYMO 15.0-3-M

15,000 W

 SYMO 17.5-3-M

17,500 W

 SYMO 20.0-3-M

20,000 W
"-S": 1 MPP tracker • "-M": 2 MPP trackers • also available in Light version (without Datamanager)
Also available: Fronius Eco, Primo and Symo GEN24

With power categories ranging from 3.0 to 20.0 kW, the Fronius Symo is the three-phase, transformerless inverter for systems of every size. Thanks to the SuperFlex Design, the Fronius Symo is the perfect answer to roofs with multiple orientations. The integrated interface and the option of retrofitting a Smart Meter enable dynamic feed-in management and a clear visualisation of energy consumption. The internet connection via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market.

MAXIMUM FLEXIBILITY — SUPERFLEX DESIGN

Thanks to the two MPP trackers and the wide input voltage range, the Fronius Symo offers maximum flexibility in system design. Even complex systems with different roof orientations or partial shading are easily handled, so that the inverter can be optimally matched to the available roof area.

SMART GRID READY

As a Smart Grid Ready inverter, the Fronius Symo already meets the grid requirements of tomorrow today and ensures stable operation even where there is a high density of PV systems.

DYNAMIC PEAK MANAGER

The Dynamic Peak Manager continuously searches for the Global Maximum Power Point. By regularly scanning the entire characteristic curve, the highest possible yield is achieved even in the event of partial shading.

EASY INSTALLATION — SNAPINVERTER TECHNOLOGY

With the SnapINverter mounting system, the connection area is installed and wired first, and the power stage is then simply hinged into place. Together with the integrated DC disconnector, this allows fast and convenient installation and commissioning.

LIGHT VERSION

Fronius SnapINverters are equipped with the Fronius Datamanager 2.0 as standard, but are also available as a Light version without the Datamanager. The Datamanager can be retrofitted in a Light device at any time if required.

  • • Three-phase, transformerless inverter, 3.0 to 20.0 kW
  • • Two MPP trackers (single MPP tracker on the "-S" power categories)
  • • SuperFlex Design for maximum design flexibility
  • • Smart Grid Ready
  • • Dynamic Peak Manager
  • • SnapINverter mounting system with integrated DC disconnector
  • • Communication via WLAN or Ethernet, Modbus TCP SunSpec, Modbus RTU SunSpec (RS485), Fronius Solar API (JSON)
  • • Monitoring via Fronius Solar.web
  • • Maximum efficiency up to 98 %
  • • Protection class IP 65

SINES EXPORT — YOUR FRONIUS DISTRIBUTOR

SINES Export is a wholesaler and distributor of professional solar equipment. As a specialist in solar pumping and stand-alone power systems, we supply the full Fronius Symo and Symo Light range to installers, integrators and resellers, with B2B pricing and worldwide export. Contact our team for a quotation, technical advice and lead times.
