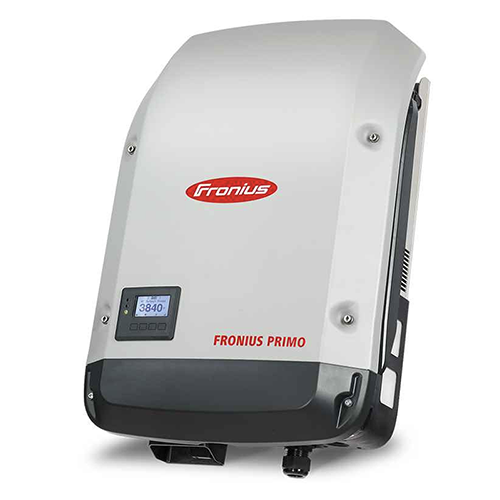

SINES - Fronius Primo - single-phase PV inverter


FRONIUS
PRIMO
PRIMO LIGHT


  • Category: Single-phase PV inverter

With power categories ranging from 3.0 to 8.2 kW, the single-phase, transformerless Fronius Primo is the ideal inverter for private households and small commercial PV systems.


FRONIUS PRIMO - SINGLE-PHASE PV INVERTER
PRIMO 3.0-1

3,000 W

 PRIMO 3.5-1

3,500 W

 PRIMO 3.6-1

3,680 W
PRIMO 4.0-1

4,000 W

 PRIMO 4.6-1

4,600 W

 PRIMO 5.0-1

5,000 W
PRIMO 6.0-1

6,000 W

 PRIMO 8.2-1

8,200 W


Single-phase • 2 MPP trackers • integrated DC disconnector • also available in Light version (without DataManager)
Also available: Fronius Eco, Symo and Symo GEN24

The communicative inverter for optimised energy management

With power categories ranging from 3.0 to 8.2 kW, the Fronius Primo is the ideal complement to the SnapINverter generation. The single-phase, transformerless device is perfectly suited to private households. Its innovative SuperFlex Design offers maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance easier. The standard integrated communication package with energy management via WLAN, together with numerous interfaces, makes the Fronius Primo a communicative inverter par excellence for owners of private PV systems.

SUPERFLEX DESIGN

The Fronius SuperFlex Design offers maximum flexibility in system design. Two MPP trackers, together with a high system voltage and wide DC input voltage range, accommodate different roof orientations and the shading of individual strings.

SNAPINVERTER MOUNTING SYSTEM

The simple, standardised SnapINverter mounting system makes installation and maintenance easier. The connection area is separated from the power stage set compartment, so the inverter can be commissioned quickly and serviced conveniently.

INTEGRATED COMMUNICATION & SMART GRID READY

Fronius offers a data communication package with fully integrated datalogging, WLAN, Ethernet, energy management, web server and a range of interfaces. With its Advanced Grid Features, the Fronius Primo is Smart Grid Ready and optimally equipped to meet the technical requirements of grids in the future.

DYNAMIC PEAK MANAGER & DC DISCONNECTOR

The Dynamic Peak Manager automatically checks the entire characteristic curve to find the Global Maximum Power Point, delivering maximum yields even in the case of partial shading. An integrated DC disconnector is included as standard. The Fronius Primo is also available in a Light version, supplied without the Fronius Datamanager.

SINES EXPORT — YOUR B2B FRONIUS DISTRIBUTOR

SINES Export is a wholesaler and distributor of professional solar equipment, supplying Fronius inverters for residential and commercial PV systems worldwide. As a B2B partner, we offer dedicated trade pricing, export logistics by sea and air, and technical support for installers, resellers and project developers. Contact us for a quotation on the Fronius Primo and Primo Light range.


In this webinar, Fronius presents the possible synergies between its products and Victron Energy products in the field of rural electrification. In addition to the standard options, the Fronius expert highlights the essential design principles and the installation and commissioning processes in a system with batteries.
