Pylontech Force H3

Category: High-voltage lithium battery
Brand: Pylontech

Pylontech Force H3 high-voltage LFP lithium storage system, modular from 10.24 to 35.84 kWh (204.8 to 716.8 VDC), designed for high-voltage hybrid inverters, BESS and self-consumption.
Available for B2B export worldwide.

High voltage · 204.8 to 716.8 VDC · LFP FORCE H3 — 10.24 to 35.84 kWh
H3 10.24 10.24 kWh	H3 15.36 15.36 kWh	H3 20.48 20.48 kWh
H3 25.60 25.60 kWh	H3 30.72 30.72 kWh	H3 35.84 35.84 kWh
B2B export pricing — worldwide shipping on the full Pylontech range
In stock - On order (3 days)

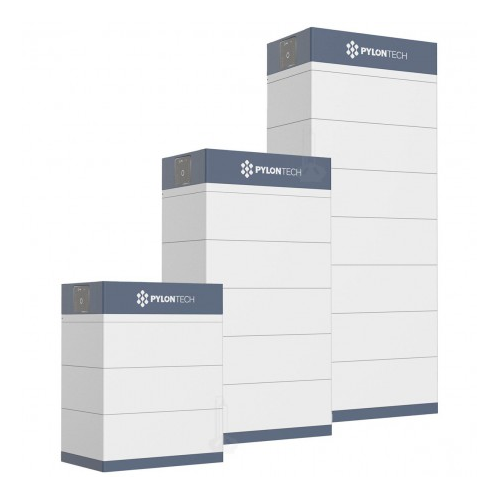

Pylontech Force H3: a high-voltage LFP lithium storage system, modular and stackable from 10.24 to 35.84 kWh (204.8 to 716.8 VDC), to be paired with a high-voltage hybrid inverter.

The Force H3 is a high-voltage battery with built-in BMS: it is not an all-in-one unit. It is stacked from FH10050 modules (5.12 kWh each) and connects to a compatible third-party high-voltage hybrid inverter. This high-voltage architecture reduces line losses, simplifies DC wiring and makes capacity expansion easy, from residential to light commercial & industrial (C&I) and BESS.

The Force H3 is the predecessor of the all-in-one Force H3X (BMS + inverter + EMS) and shares the same class of stackable high-voltage modules. Available for export worldwide.

Why choose the Force H3?

High-voltage modularity — from 2 to 7 modules per tower, i.e. 10.24 to 35.84 kWh, and up to 6 systems in parallel.
Efficient HV architecture — 204.8 to 716.8 VDC: less current, fewer losses, lighter DC wiring.
LFP safety — cobalt-free lithium iron phosphate (LiFePO₄) chemistry, built-in BMS, 95 % depth of discharge.
Longevity — more than 8000 cycles, design service life of 15 years and more (at 25 °C).
Flexible installation — IP55 rating, plug&play-style stacking, CAN bus / Modbus RTU communication.
HV inverter compatibility — to be paired with a compatible third-party high-voltage hybrid inverter for Pylontech.

Technical specifications

Specification	Force H3
Type	High-voltage battery with built-in BMS (third-party inverter)
Chemistry	LFP — lithium iron phosphate (LiFePO₄)
Battery module	FH10050
Module voltage	102.4 VDC
Module capacity	50 Ah — 5.12 kWh
Modules per tower	2 to 7
System energy	10.24 to 35.84 kWh
System voltage	204.8 to 716.8 VDC
Charge / discharge current	50 A (recommended) — 52 A (max)
Depth of discharge	95 %
Parallel connection	Up to 6 systems
Communication	CAN bus / Modbus RTU
Protection rating	IP55
Operating temperature	−10 to +50 °C
Cycles / service life	> 8000 cycles · 15 years and more (25 °C)

Configurations & capacities

Capacity is scalable: stack 2 to 7 FH10050 modules (5.12 kWh each) to adjust the system energy and voltage. The tower weight increases with the number of modules.

Modules	Nominal energy	System voltage	Approx. weight
2	10.24 kWh	204.8 VDC	92 kg
3	15.36 kWh	307.2 VDC	131 kg
4	20.48 kWh	409.6 VDC	170 kg
5	25.60 kWh	512 VDC	209 kg
6	30.72 kWh	614.4 VDC	248 kg
7	35.84 kWh	716.8 VDC	287 kg

Usable energy ≈ 95 % (depth of discharge). Up to 6 systems in parallel for high-capacity requirements.

Safety & certifications

LFP chemistry — cobalt-free lithium iron phosphate, recognised for its thermal stability and safety.
Built-in BMS — monitoring and protection of each module (voltage, current, temperature).
IP55 rating — indoor or semi-outdoor installation; operating from −10 to +50 °C.
Standards: UL 9540A, UL 1973, IEC 62619, IEC 63056, IEC 62040-1, IEC 62477-1, VDE-AR-E 2510-50, UN38.3.

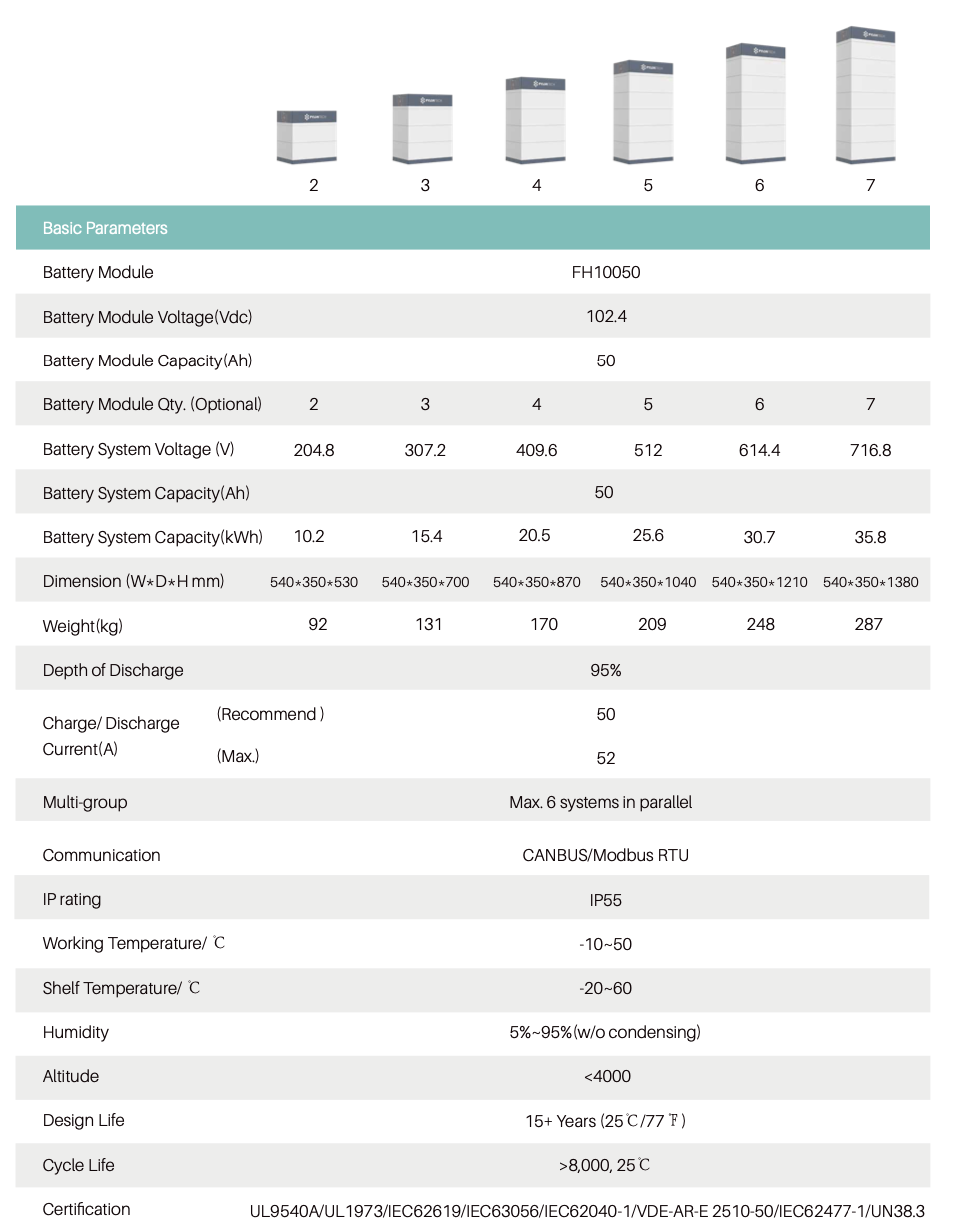

SINES - Pylontech Force H3 - technical specifications

Distributed by SINES Export to professionals worldwide. See also Pylontech distributor, Force H3X (all-in-one version), FIDUS LV and US2000 / US3000.

References & configurations

Configuration	Modules (FH10050)	Nominal energy	System voltage
Force H3 10.24	2	10.24 kWh	204.8 VDC
Force H3 15.36	3	15.36 kWh	307.2 VDC
Force H3 20.48	4	20.48 kWh	409.6 VDC
Force H3 25.60	5	25.60 kWh	512 VDC
Force H3 30.72	6	30.72 kWh	614.4 VDC
Force H3 35.84	7	35.84 kWh	716.8 VDC
