SINES - Grundfos CR multistage pump


GRUNDFOS CR 32


  • Category: Surface pumps

Max. lift: 275 m - Max. flow rate: 30 m³/h

Grundfos CR 32 pumps are vertical multistage centrifugal pumps. The in-line design enables the pump to be installed in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimensions. Grundfos CR pumps come with various pump sizes and various numbers of stages to provide the flow and the pressure required.


CR 30-1

Max. TDH: 19,7 m
Max. flow rate: 30 m³/h

 CR 30-1-1

Max. TDH: 16 m
Max. flow rate: 30 m³/h

 CR 30-2

Max. TDH: 39,5 m
Max. flow rate: 30 m³/h
CR 30-2-2

Max. TDH: 31,6 m
Max. flow rate: 30 m³/h

 CR 30-3

Max. TDH: 58,5 m
Max. flow rate: 30 m³/h

 CR 30-3-2

Max. TDH: 38 m
Max. flow rate: 30 m³/h
CR 30-4

Max. TDH: 77,8 m
Max. flow rate: 30 m³/h

 CR 30-4-2

Max. TDH: 70,3 m
Max. flow rate: 30 m³/h

 CR 30-5

Max. TDH: 97,8 m
Max. flow rate: 30 m³/h
CR 30-5-2

Max. TDH: 90,2 m
Max. flow rate: 30 m³/h

 CR 30-6

Max. TDH: 116,8 m
Max. flow rate: 30 m³/h

 CR 30-6-2

Max. TDH: 109,2 m
Max. flow rate: 30 m³/h
CR 30-7

Max. TDH: 136,6 m
Max. flow rate: 30 m³/h

 CR 30-7-2

Max. TDH: 128,9 m
Max. flow rate: 30 m³/h

 CR 30-8

Max. TDH: 155,5 m
Max. flow rate: 30 m³/h
CR 30-8-2

Max. TDH: 1248 m
Max. flow rate: 30 m³/h

 CR 30-9

Max. TDH: 175,5 m
Max. flow rate: 30 m³/h

 CR 30-10

Max. TDH: 194,6 m
Max. flow rate: 30 m³/h
CR 30-10-2

Max. TDH: 187 m
Max. flow rate: 30 m³/h

 CR 30-11

Max. TDH: 214,6 m
Max. flow rate: 30 m³/h

 CR 30-11-2

Max. TDH: 206,9 m
Max. flow rate: 30 m³/h
CR 30-12

Max. TDH: 232,5 m
Max. flow rate: 30 m³/h

 CR 30-12-2

Max. TDH: 226,1 m
Max. flow rate: 30 m³/h

 CR 30-13

Max. TDH: 254,8 m
Max. flow rate: 30 m³/h
CR 30-13-2

Max. TDH: 247,1 m
Max. flow rate: 30 m³/h

 CR 30-14

Max. TDH: 274,7 m
Max. flow rate: 30 m³/h

 CR 30-14-2

Max. TDH: 266,4 m
Max. flow rate: 30 m³/h
Solar pumping systems for reliable Water Supply in Africa

The new generation of Grundfos CR pumps features a full range of sizes and limitless scope for combinations to suit your specific needs.

The basic CR pump range is available in four different materials: cast iron, two grades of stainless steel and titanium. Thirteen flow sizes are capable of producing up to 180 m³/h at 50 bar, with a variety of shaft seals, rubber materials and supply voltages.

A CR pump consists of two main components: the motor and the pump unit. The motor is a Grundfos motor designed to EN standards. The pump unit consists of optimised hydraulics, various types of connections, a sleeve, a pump head and various other parts.

Grundfos CR pumps are vertical multistage centrifugal pumps. : A centrifugal pump has a stationary part and a rotating part. the rotating part is called the impeller. the impeller has a number of vanes which force the water to rotate and creates flow. The stationary part is called the pump housing, or pump bowl. the bowl also has a number of vanes called guide vanes. their function is to stop the water’s rotation and to convert the energy in the rotation to pressure.

The CR is renowned for its reliability. And rightly so. The CR design has all the durability that customers expect from a high-quality multistage pump – and then some. CR have unique features to ensure unsurpassed reliability: dry-running protection, a unique cartridge seal, and a fulltitanium variant.

CR, CRI and CRN pumps are fitted with a totally enclosed, fan-cooled, 2-pole Grundfos standard motor with principal dimensions to EN standards.


lecture referene sp

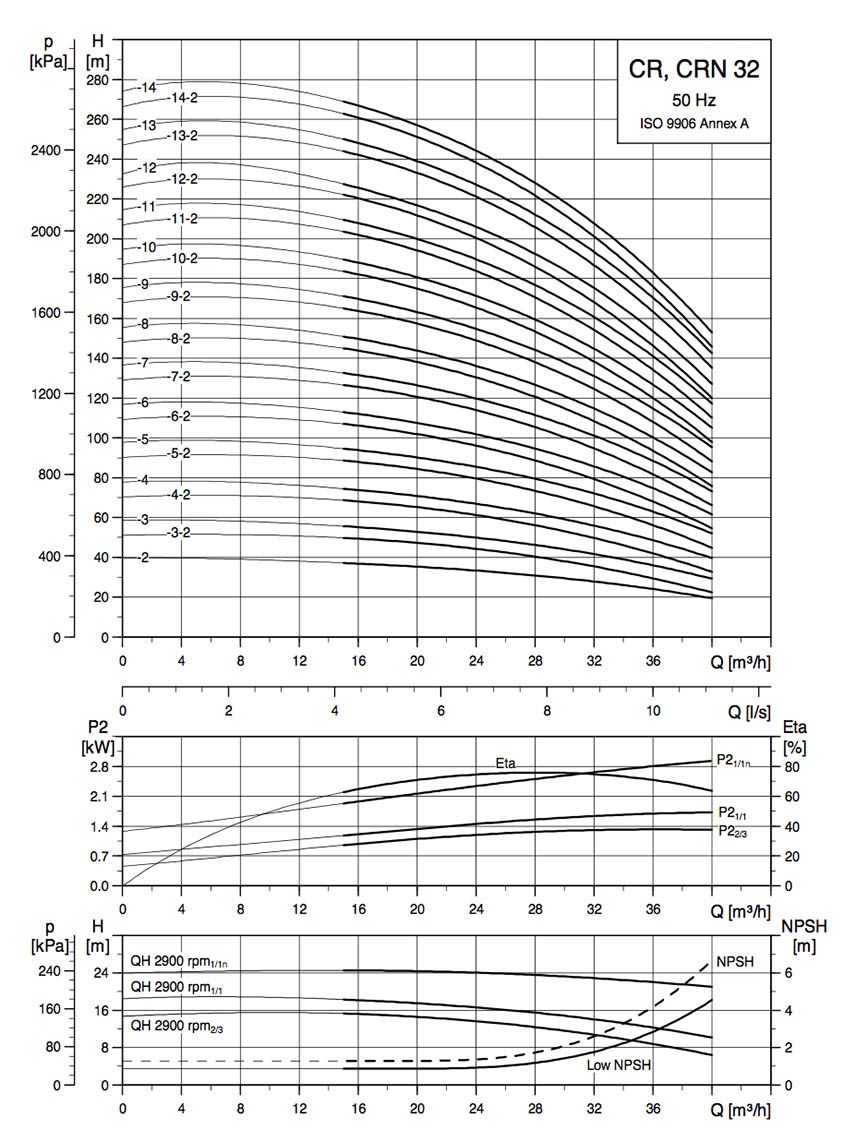

SINES - Grundfos CR performance curve

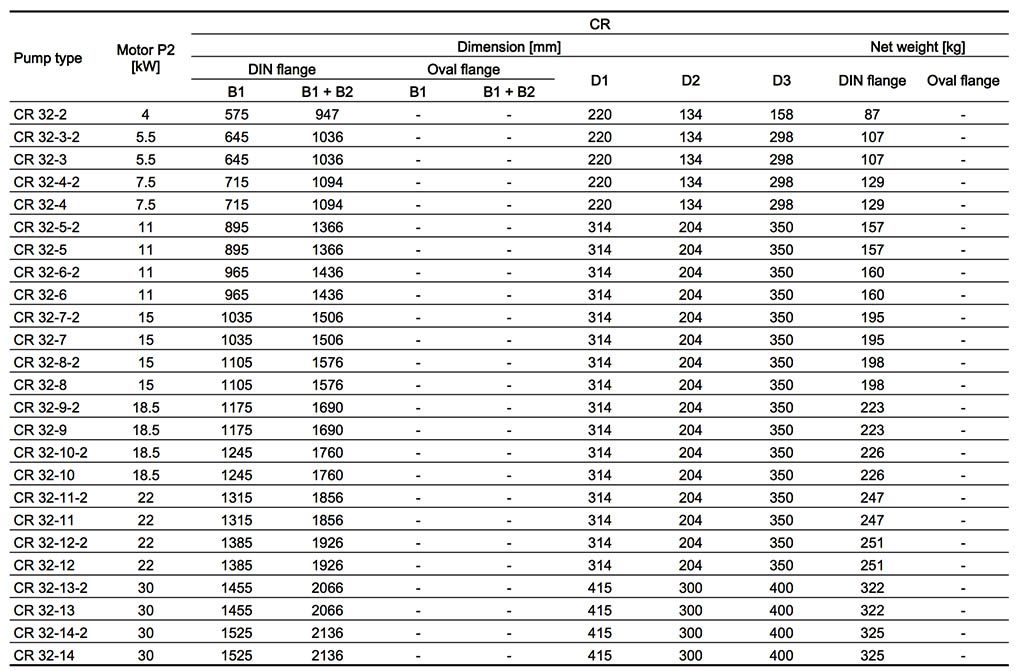

SINES - Grundfos CR dimensions and weights

SINES - surface pumps - Grundfos CR

Performance range - GRUNDFOS CR Surface pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CR 32 range, vertical multistage centrifugal pumps, three-phase 380-415 V / 50 Hz, AISI 304 stainless steel hydraulics, cast iron pump head and base, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93392442CR 32-1-11.53.3Flanges DN65
93392443CR 32-12.24.5Flanges DN65
93392642CR 32-2-236Flanges DN65
93392644CR 32-247.5Flanges DN65
93392646CR 32-35.511Flanges DN65
93392645CR 32-3-25.511Flanges DN65
93392648CR 32-47.514.4Flanges DN65
93392647CR 32-4-27.514.4Flanges DN65
93392660CR 32-51120.8Flanges DN65
93392649CR 32-5-21120.8Flanges DN65
93392662CR 32-61120.8Flanges DN65
93392661CR 32-6-21120.8Flanges DN65
93392665CR 32-71528.5Flanges DN65
93392664CR 32-7-21528.5Flanges DN65
93392668CR 32-81528.5Flanges DN65
93392666CR 32-8-21528.5Flanges DN65
93392681CR 32-918.537Flanges DN65
93392669CR 32-9-218.537Flanges DN65
93392683CR 32-1018.537Flanges DN65
93392682CR 32-10-218.537Flanges DN65
93436115CR 32-112238Flanges DN65
93436112CR 32-11-22238Flanges DN65
93436118CR 32-122238Flanges DN65
93436116CR 32-12-22238Flanges DN65
93435062CR 32-133051Flanges DN65
93435053CR 32-13-23051Flanges DN65
93435064CR 32-143051Flanges DN65
93435063CR 32-14-23051Flanges DN65
