SINES - SMA - Sunny Tripower 15000-25000TL solar inverter


SMA Sunny Tripower
15000TL / 20000TL / 25000TL


  • Category: Solar inverters
  • Brand: SMA

The versatile specialist for large-scale commercial plants

The Sunny Tripower is the ideal inverter for large-scale commercial and industrial plants. As a transformerless inverter with two MPP trackers and a wide input voltage range, it delivers very high yields and broad PV-module compatibility.

STP 15000TL

15 330 Wp

 STP 20000TL

20 440 Wp

 STP 25000TL

25 550 Wp
DCSPD KIT3-10

DC surge arrester

 DM-485CB-10

RS485 interface

 MFR01-10

Multifunction relay
DC input up to 1000 V · up to 98.5% efficiency · 2 MPP trackers
Also available: SMA Energy Meter and Data Manager M
B2B export pricing: worldwide shipping, full SMA range

SMA Sunny Tripower 15000TL–25000TL: three-phase inverter for large commercial plants

The Sunny Tripower is the ideal inverter for large-scale commercial and industrial plants. As a transformerless inverter with two MPP trackers, it converts the direct current of the PV array into grid-compliant three-phase current and feeds it into the utility grid. Its multistring capability and wide input voltage range deliver very high yields and broad module compatibility.

Suitable for both indoor and outdoor installation, it accepts a DC input voltage of up to 1000 V and reaches a maximum efficiency of 98.5%. Integrated grid-management functions, including Integrated Plant Control, allow reactive power to be regulated at the point of common coupling, so separate controllers are no longer needed, lowering overall system costs.

Highlights

  • Maximum efficiency of 98.5%.
  • Multistring design and DC input up to 1000 V.
  • Integrated grid management with Integrated Plant Control.
  • Yield increase with SMA ShadeFix.
  • Optional DC surge arrester (SPD type II).
  • Suitable for indoor and outdoor installation.

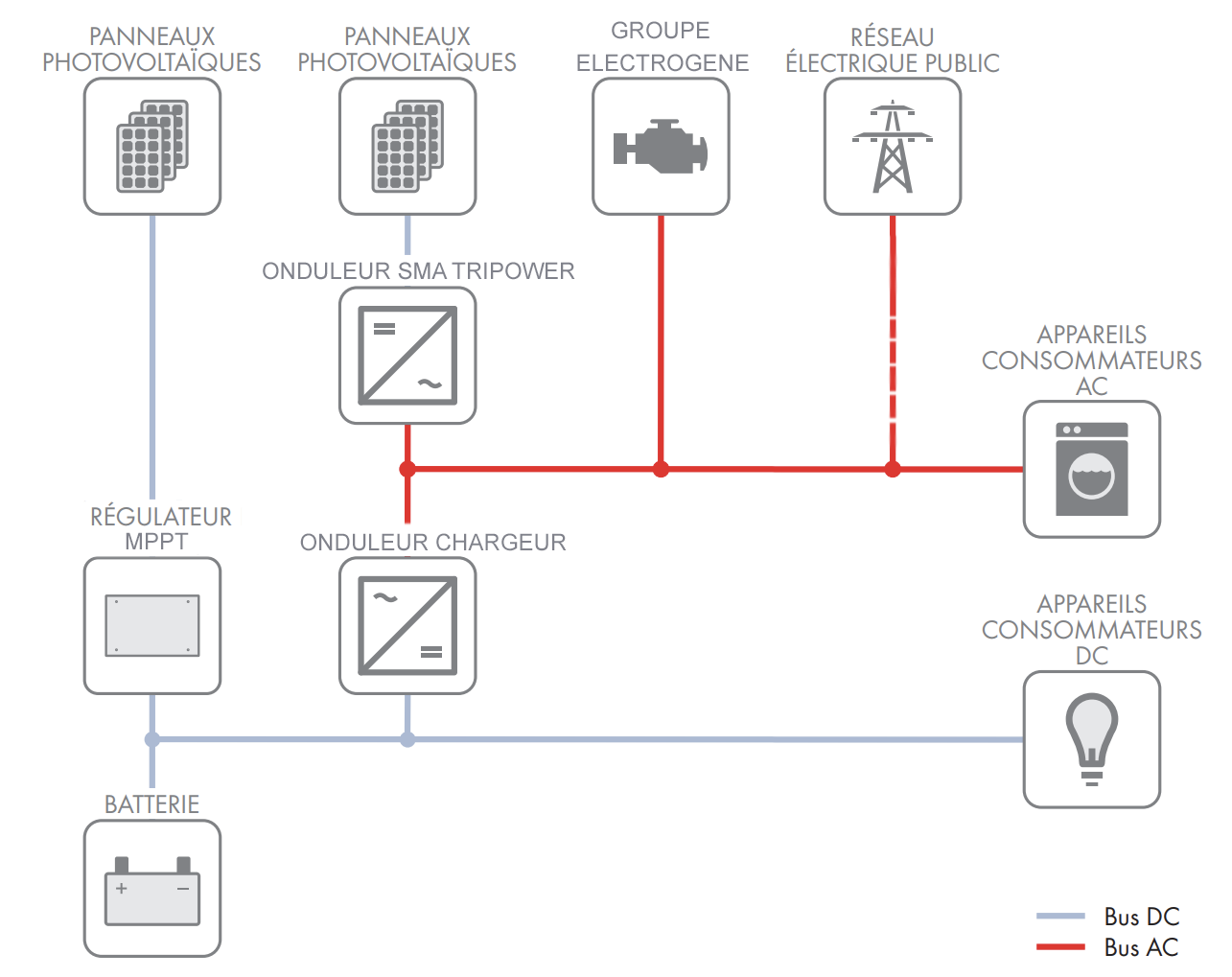

SINES - SMA - Mixed AC/DC battery coupling with SMA Sunny Tripower

Mixed AC/DC battery coupling with SMA Sunny Tripower

SINES - SMA - Off-grid PV plant with SMA Sunny Tripower 25000TL and SMA Sunny Island

Off-grid PV plant with SMA Sunny Tripower 25000TL and SMA Sunny Island

References & article codes

Order numberDescriptionNet weightOrigin
STP 15000TL-30Sunny Tripower 15000TL, three-phase grid-tie solar inverter, 2 MPPT, DC up to 1000 V61 kgGermany
STP 20000TL-30Sunny Tripower 20000TL, three-phase grid-tie solar inverter, 2 MPPT, DC up to 1000 V61 kgGermany
STP 25000TL-30Sunny Tripower 25000TL, three-phase grid-tie solar inverter, 2 MPPT, DC up to 1000 V61 kgGermany
