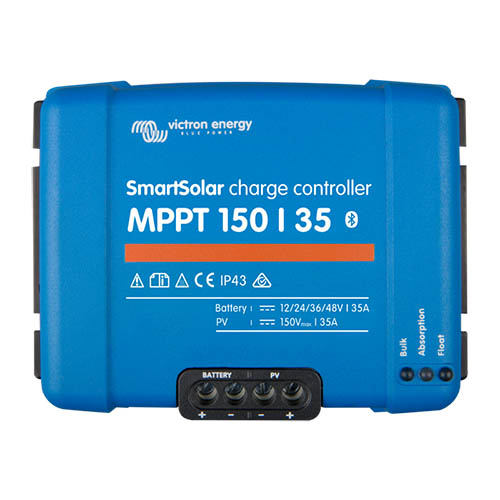

Bluetooth built into the SmartSolar models
The SmartSolar MPPT chargers can be controlled and configured over Bluetooth from the VictronConnect app. This makes it possible to set up the device, manage it and read out data at a glance, such as battery voltage and current, PV voltage and current, and historical data. With the BlueSolar version, an optional Bluetooth dongle is required.
Maximum solar array power depending on the system voltage
| | PV power for a 12 V battery voltage | PV power for a 24 V battery voltage | PV power for a 48 V battery voltage |
|---|
| MPPT 150/35 (35 A) | 500 Wp | 1000 Wp | 2000 Wp |
| MPPT 150/45 (45 A) | 650 Wp | 1300 Wp | 2600 Wp |
Automatic battery voltage recognition
The controllers automatically adjust to a 12, 24 or 48 V system.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeding 98 %. Full output current up to 40 °C.
Flexible charge algorithm
Fully programmable charge algorithm, and eight preprogrammed algorithms selectable with a rotary switch.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in a cloudy sky, when light intensity is changing continuously, an ultra-fast MPPT controller improves energy harvest by up to 30 % compared with PWM charge controllers (pulse-width modulation) and by up to 10 % compared with slower MPPT controllers.
Advanced Maximum Power Point detection in case of partial shading
In case of partial shading, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock onto a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm always maximises energy harvest by locking onto the optimum MPP.
VE.Direct port
For a wired data connection to a Color Control panel, a Venus GX, a Cerbo GX, a PC or other devices.
Internal temperature sensor
It compensates the absorption and float charge voltages for temperature (temperature between 6 and 40 °C).
Remote monitoring and control
When combined with a GX device (for example a Cerbo GX), you can monitor and control your MPPT charge controller and your system either locally (LAN) or remotely over the internet from anywhere in the world, through the free VRM app and the free VRM website. You can access it from a phone, tablet, laptop or PC running various operating systems. The level of control over your system is unlimited, whether to adjust settings on your Multi or to start your back-up generator automatically, and much more.
