The GoodWe Lynx Home range is a family of modular lithium iron phosphate (LFP) storage batteries, available in three series: Lynx Home F and Lynx Home F Plus+ in high voltage (HV), and Lynx Home U in low voltage (LV). Designed for photovoltaic self-consumption, grid backup and residential or small commercial storage, these batteries pair with GoodWe hybrid inverters to form a one-stop-shop inverter + battery solution. SINES Export, GoodWe distributor and wholesaler, supplies the complete system and validates its sizing, for worldwide export.
Why choose a Lynx Home battery?
The Lynx Home range is based on cobalt-free lithium iron phosphate (LFP / LiFePO4) cells, recognised for their thermal stability, safety and long service life. The modular architecture with auto-detected stackable modules (Plug & Play) simplifies installation, expansion and maintenance.
- Cobalt-free LFP cells: high safety and thermal stability.
- Self-recognising stackable modules and Plug & Play wiring.
- Remote diagnostics and updates, automatic restart after undervoltage.
- Protection rating IP55 (F / F Plus+ series) to IP65 (U series) for outdoor installation.
- Wide capacity range, from residential (5.4 kWh) to high-capacity projects (up to 131 kWh in parallel).
Technical specifications of the Lynx Home series

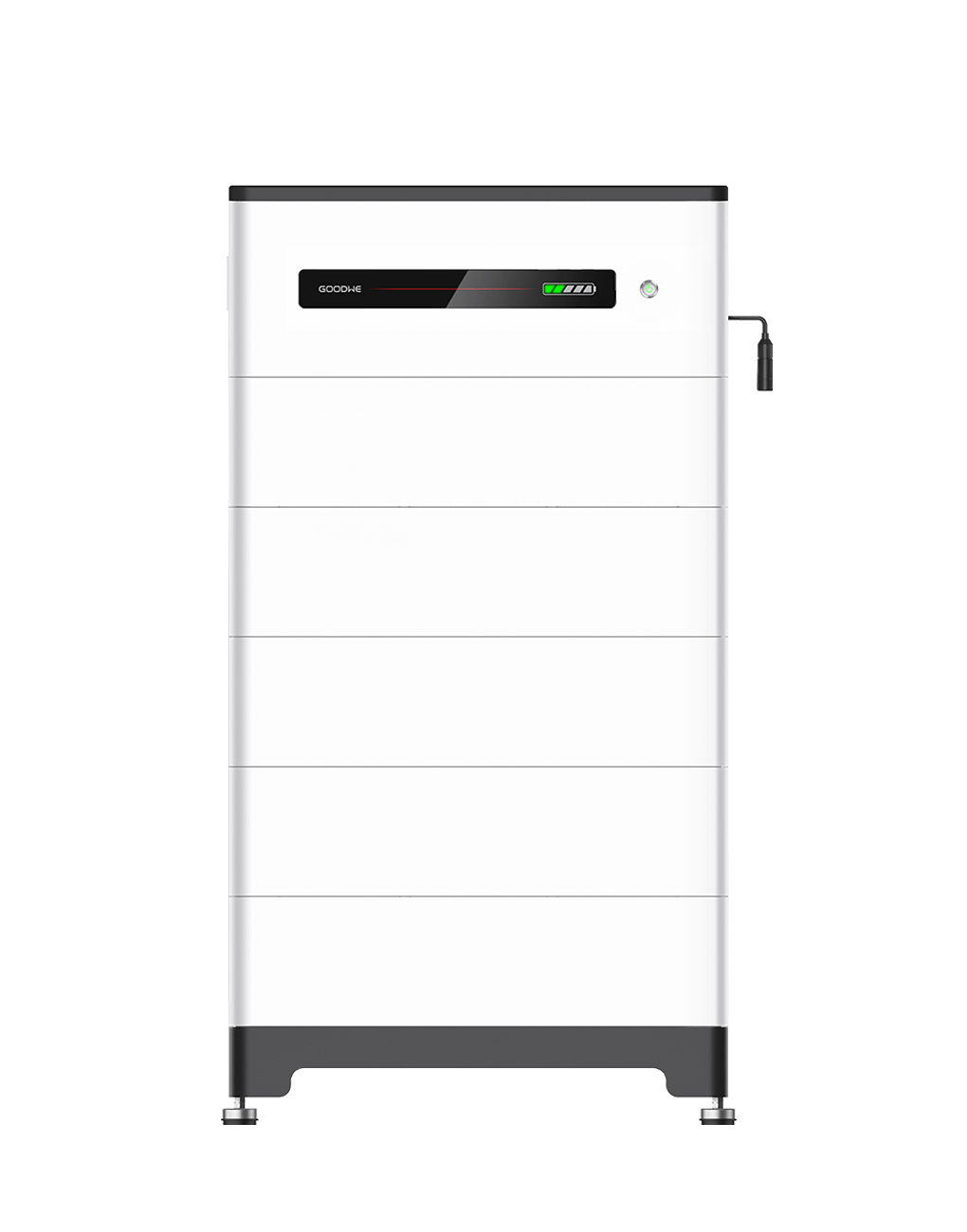

The F and F Plus+ series are high-voltage batteries sharing the same LX F3.3-H module of 3.27 kWh (102.4 V); the F Plus+ series is distinguished by parallel connection of up to 8 towers and additional certifications. The U series is a low-voltage battery with self-contained modules (built-in BMS, no separate control unit).
| Characteristic |
Lynx Home F (HV) |
Lynx Home F Plus+ (HV) |
Lynx Home U (LV) |
| Cell chemistry |
LFP (LiFePO4) |
LFP (LiFePO4) |
LFP (LiFePO4) |
| Module |
LX F3.3-H — 3.27 kWh |
LX F3.3-H — 3.27 kWh |
LX U5.4-20 — 5.4 kWh |
| Usable energy per tower |
6.55 to 16.38 kWh |
6.55 to 16.38 kWh |
5.4 to 32.4 kWh |
| Number of modules |
2 to 5 |
2 to 5 |
1 to 6 |
| Nominal voltage |
204.8 to 512.0 V |
204.8 to 512.0 V |
51.2 V |
| Rated charge / discharge current |
25 A |
25 A |
50 to 100 A |
| Parallel connection |
— |
up to 8 towers (131 kWh) |
up to 6 modules |
| Protection rating |
IP55 |
IP55 |
IP65 |
| Communication |
CAN |
CAN |
CAN, RS485 |
| Compatible inverters |
BH / EH / BT / ET |
BH / EH / BT / ET |
ES / EM / SBP |
Temperature ranges: charging 0 to +50 °C; discharging -20 to +50 °C (F / F Plus+) and -10 to +50 °C (U). Maximum operating altitude: 2,000 m. Relative humidity: 0 to 95 %.
Capacities & configurations
The high-voltage F and F Plus+ series are configured by stacking 3.27 kWh modules (from 2 to 5 modules per tower); the low-voltage U series extends from 1 to 6 modules of 5.4 kWh. The table below summarises the usable energy according to the number of modules.
| Configuration |
Modules |
Usable energy |
Weight |
| F / F Plus+ — LX F6.6-H |
2 |
6.55 kWh |
115 kg |
| F / F Plus+ — LX F9.8-H |
3 |
9.83 kWh |
158 kg |
| F / F Plus+ — LX F13.1-H |
4 |
13.10 kWh |
201 kg |
| F / F Plus+ — LX F16.4-H |
5 |
16.38 kWh |
244 kg |
| U — LX U5.4-20 |
1 |
5.4 kWh |
57 kg |
| U — 6 × LX U5.4-20 |
6 |
32.4 kWh |
342 kg |
For high-capacity projects, the F Plus+ series allows parallel connection of 8 towers, i.e. up to 131 kWh. Dimensions (W × H × D): 600 × 625 to 1090 × 380 mm for the F series; 505 × 570 × 175 mm per module for the U series.
Safety & certifications
The cobalt-free LFP chemistry offers excellent thermal stability and a long service life. Lynx Home batteries comply with the international standards for safety, electromagnetic compatibility and lithium battery transport.
- Safety (F): IEC 62619, IEC 62040, CEC.
- Safety (F Plus+): IEC 62619, IEC 62040, VDE 2510-50, CEC, CE.
- Safety (U): IEC 62619, IEC 63056, IEC 62040, CEC.
- EMC: CE, RCM — Transport: UN 38.3.
Discover our full GoodWe offer (hybrid inverters and storage) as well as our complete catalogue of lithium batteries for self-consumption and stationary storage. SINES Export supports you in sizing the complete inverter + battery system, both for new builds and retrofits.
