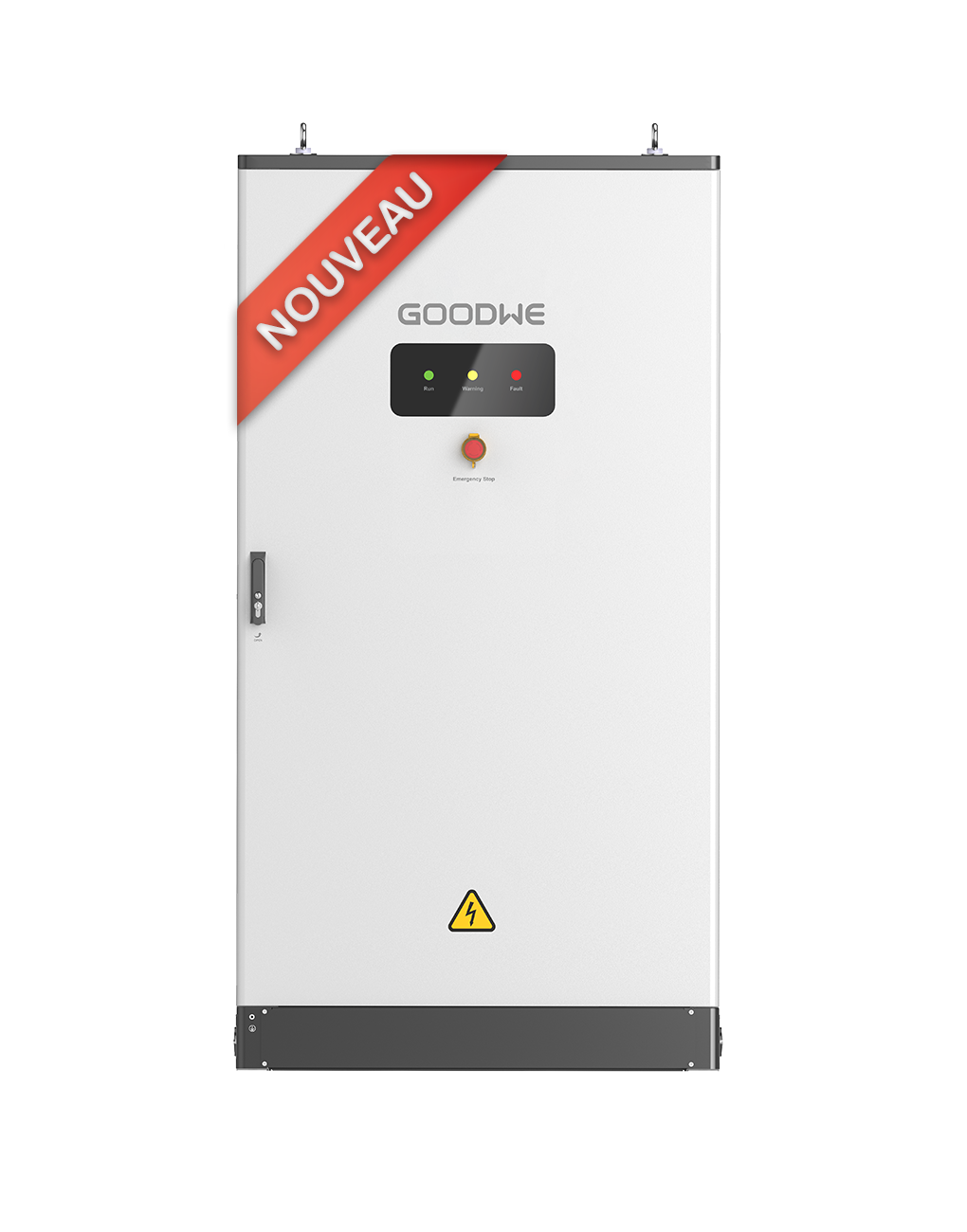

The GoodWe BAT-C Series is a high-voltage lithium storage system in an all-in-one cabinet, designed for commercial and industrial (C&I) outdoor applications. Available in 61.4 kWh, 102.4 kWh and 112.6 kWh, the BAT-C cabinet is based on high-stability lithium iron phosphate (LFP, LiFePO4) cells and pairs with GoodWe ET hybrid inverters and the static transfer switch (STS) unit to form a complete, ready-to-install solution. It meets the needs of energy backup, peak shaving and consumption optimisation for industrial parks, farms and commercial complexes. SINES Export, GoodWe distributor and wholesaler, supplies the complete system and validates its sizing.
Why GoodWe C&I storage?
The BAT-C Series addresses medium and large-scale storage projects with a modular high-voltage architecture and 100 % outdoor operation. Each cabinet integrates its own thermal management by air conditioning, its IP55 protection rating and an aerosol fire suppression system at pack and cabinet level.
- Modularity: 6 to 11 packs of 10.24 kWh (model GW10.2-PACK-ACI-G10) depending on capacity, for 60 to 110 kWh usable.
- Expandability: up to 4 units in parallel, i.e. approximately 450 kWh installed.
- Performance: continuous charge up to 0.9C and discharge up to 1.1C for fast energy response.
- Durability: 6,000 cycles (25 ± 2 °C, 0.5C, 90 % DOD, 70 % EOL) and round-trip efficiency of 96 %.
- Outdoor operation: operating range from -20 to +55 °C, altitude up to 4,000 m, anti-corrosion class C4 (C5-M as an option).
- Supervision: remote monitoring and updates, cloud battery diagnostics and health prediction, per-pack humidity control with automatic dehumidification.
Technical specifications
| Characteristic |
GW61.4-BAT |
GW102.4-BAT |
GW112.6-BAT |
| Cell chemistry |
LFP (LiFePO4) |
| Nominal energy |
61.4 kWh |
102.4 kWh |
112.6 kWh |
| Usable energy |
60 kWh |
100 kWh |
110 kWh |
| Nominal voltage |
307.2 V |
512.0 V |
563.2 V |
| Voltage range |
275.52 ~ 346.56 V |
459.2 ~ 577.6 V |
505.12 ~ 635.36 V |
| Number of packs |
6 |
10 |
11 |
| Max charge / discharge current |
180 / 220 A |
| Max charge / discharge rate |
0.9C / 1.1C |
| Max charge / discharge power |
55.2 / 67.5 kW |
92.1 / 112.6 kW |
101.3 / 123.9 kW |
| Service life |
6,000 cycles (90 % DOD, 70 % EOL) |
| Round-trip efficiency |
96 % (100 % DOD, 0.2C, 25 ± 2 °C) |
| Cooling |
Air conditioner |
| Operating temperature |
-20 ~ +55 °C |
| Protection rating |
IP55 |
| Dimensions (W × H × D) |
1055 × 2000 × 1055 mm |
| Weight |
< 950 kg |
< 1310 kg |
< 1400 kg |
| Parallel expansion |
up to 4 units, approx. 450 kWh |
Data from the GoodWe BAT-C Series datasheet (models GW61.4-BAT-AC-G10, GW102.4-BAT-AC-G10 and GW112.6-BAT-AC-G10). Specifications subject to change; final sizing to be validated in project study.
Safety & certifications
The inherently more stable LFP chemistry is complemented by an aerosol fire suppression system at pack and cabinet level, per-pack humidity control with automatic dehumidification and cloud battery diagnostics with health prediction. The high-voltage cabinet is certified to the main international standards:
- Safety: IEC62619, IEC63056, IEC60730, IEC62477, VDE2510, ISO13849, IEC62040, EU 2023/1542, UN38.3.
- EMC: IEC / EN61000-6-1 / 2 / 3 / 4.
- Protection rating: IP55, anti-corrosion class C4 (C5-M as an option).
The BAT-C Series completes the GoodWe storage offer distributed by SINES Export and is part of our lithium storage (BESS) solutions for commercial and industrial use. It pairs with the GoodWe ET 100 kW hybrid inverter and the static transfer switch.
