GRUNDFOS CRN 32

Categorie : Surface pumps

Max. TDH: 280m - Max. flow rate: 40m3/h - vertical multistage in-line

The CRN 32 is the all-stainless-steel EN 1.4401 (AISI 316) version of the CR 32 - for aggressive liquids, process water and water treatment. IE3 three-phase motor from 1.5 to 30 kW. 28 stage variants. DN 65 flange connection.

CRN 32-1-1 1.5 kW	CRN 32-1 2.2 kW	CRN 32-2-2 3 kW
CRN 32-2 4 kW	CRN 32-3-2 5.5 kW	CRN 32-3 5.5 kW
CRN 32-4-2 7.5 kW	CRN 32-4 7.5 kW	CRN 32-5-2 11 kW
CRN 32-5 11 kW	CRN 32-6-2 11 kW	CRN 32-6 11 kW
CRN 32-7-2 15 kW	CRN 32-7 15 kW	CRN 32-8-2 15 kW
CRN 32-8 15 kW	CRN 32-9-2 18.5 kW	CRN 32-9 18.5 kW
CRN 32-10-2 18.5 kW	CRN 32-10 18.5 kW	CRN 32-11-2 22 kW
CRN 32-11 22 kW	CRN 32-12-2 22 kW	CRN 32-12 22 kW
CRN 32-13-2 30 kW	CRN 32-13 30 kW	CRN 32-14-2 30 kW
CRN 32-14 30 kW
Solar pumping systems for reliable Water Supply in Africa

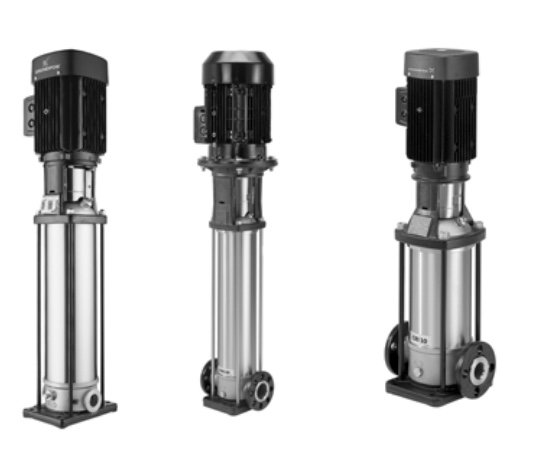

The Grundfos CRN is the all-stainless-steel version of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level, for a compact footprint. The CRN 32 covers a flow rate up to 40 m³/h (nominal 32 m³/h) and a TDH up to 280 m, with a maximum efficiency of 78%.

All-stainless-steel construction: all parts in contact with the liquid are made of EN 1.4401 (AISI 316) stainless steel - the choice for aggressive and industrial liquids (acids, alkalis, reverse osmosis, demineralisation, separators). Balanced cartridge mechanical seal, maintenance-free. Liquid temperature -30 to +120 °C, maximum operating pressure 28 bar.

High-efficiency IE3 three-phase motor, from 1.5 to 30 kW (Grundfos MG up to 22 kW, Siemens above). CRNE versions with integrated MGE frequency converter are available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis). DN 65 flange connection. 28 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is a wholesaler and exporter specialising in Grundfos pumps. Our teams support installers, resellers and distributors worldwide on a B2B basis.

SINES - Grundfos CR, CRI, CRN designation key

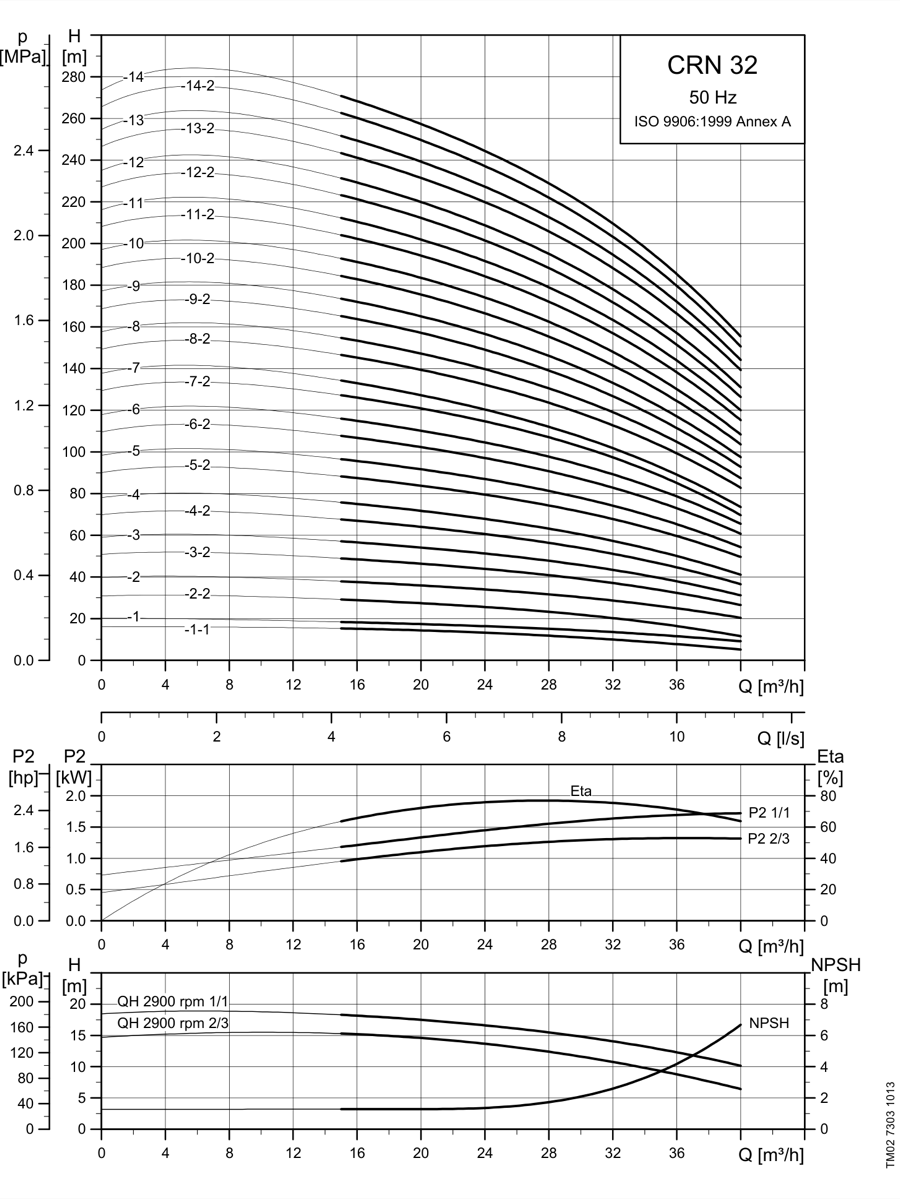

SINES - Grundfos CRN 32 - performance curves 50 Hz

SINES - surface pumps - Grundfos CR, CRI, CRN range

Performance range - GRUNDFOS CR, CRI, CRN Surface pumps - Source: http://www.grundfos.com/

References & article codes

Grundfos CRN 32 range - vertical multistage three-phase pumps, 380-415 V / 50 Hz, all-stainless-steel AISI 316, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code	Designation	P2 [kW]	In [A]	Connection
93392557	CRN 32-1-1	1.5	3.3	Flanges DN65
93392559	CRN 32-1	2.2	4.5	Flanges DN65
93392866	CRN 32-2-2	3	6	Flanges DN65
93392867	CRN 32-2	4	7.5	Flanges DN65
93392869	CRN 32-3	5.5	11	Flanges DN65
93392868	CRN 32-3-2	5.5	11	Flanges DN65
93392871	CRN 32-4	7.5	14.4	Flanges DN65
93392870	CRN 32-4-2	7.5	14.4	Flanges DN65
93392873	CRN 32-5	11	20.8	Flanges DN65
93392872	CRN 32-5-2	11	20.8	Flanges DN65
93392875	CRN 32-6	11	20.8	Flanges DN65
93392874	CRN 32-6-2	11	20.8	Flanges DN65
93392877	CRN 32-7	15	28.5	Flanges DN65
93392876	CRN 32-7-2	15	28.5	Flanges DN65
93392879	CRN 32-8	15	28.5	Flanges DN65
93392878	CRN 32-8-2	15	28.5	Flanges DN65
93392882	CRN 32-9	18.5	37	Flanges DN65
93392881	CRN 32-9-2	18.5	37	Flanges DN65
93392885	CRN 32-10	18.5	37	Flanges DN65
93392883	CRN 32-10-2	18.5	37	Flanges DN65
93436179	CRN 32-11	22	38	Flanges DN65
93436178	CRN 32-11-2	22	38	Flanges DN65
93436181	CRN 32-12	22	38	Flanges DN65
93436180	CRN 32-12-2	22	38	Flanges DN65
93435212	CRN 32-13	30	51	Flanges DN65
93435211	CRN 32-13-2	30	51	Flanges DN65
93435215	CRN 32-14	30	51	Flanges DN65
93435213	CRN 32-14-2	30	51	Flanges DN65
