SINES - Grundfos CRN 255 - vertical multistage surface pump


GRUNDFOS CRN 255


  • Categorie : Surface pumps

Max. TDH: 285m - Max. flow rate: 300m3/h

Grundfos CRN 255 is the all-stainless-steel EN 1.4401 (AISI 316) version of the CR 255 — for aggressive liquids, process water and water treatment. Three-phase IE4 motor from 30 to 200 kW. 11 stage variants. DN 200 flange connection (or PJE/Victaulic grooved coupling).


CRN 255-1-1

30 kW

 CRN 255-1

45 kW

 CRN 255-2-2

55 kW
CRN 255-2

75 kW

 CRN 255-3-2

90 kW

 CRN 255-3

110 kW
CRN 255-4-2

132 kW

 CRN 255-4

160 kW

 CRN 255-5-3

160 kW
CRN 255-5

200 kW

 CRN 255-6-2

200 kW


Solar pumping systems for reliable Water Supply in Africa

Grundfos CRN is the all-stainless-steel version of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level, for a compact footprint. The CRN 255 covers a flow rate up to 300 m3/h (255 m3/h nominal) and a TDH up to 285 m, with a maximum efficiency of 84%.

All-stainless-steel construction: all parts in contact with the liquid are made of EN 1.4401 (AISI 316) stainless steel — the choice for aggressive and industrial liquids (acids, alkalis, reverse osmosis, demineralisation, separators). Balanced cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 °C, operating pressure up to 40 bar depending on the model.

High-efficiency three-phase IE4 motor, from 30 to 200 kW (Grundfos MG up to 22 kW, Innomotics — formerly Siemens — above). Variable-speed control is possible with an external Grundfos CUE frequency converter, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis). DN 200 flange connection (or PJE/Victaulic grooved coupling). 11 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialised in Grundfos pumps worldwide. Our teams support installers, resellers and distributors on B2B and export markets (Africa, Maghreb, Middle East).

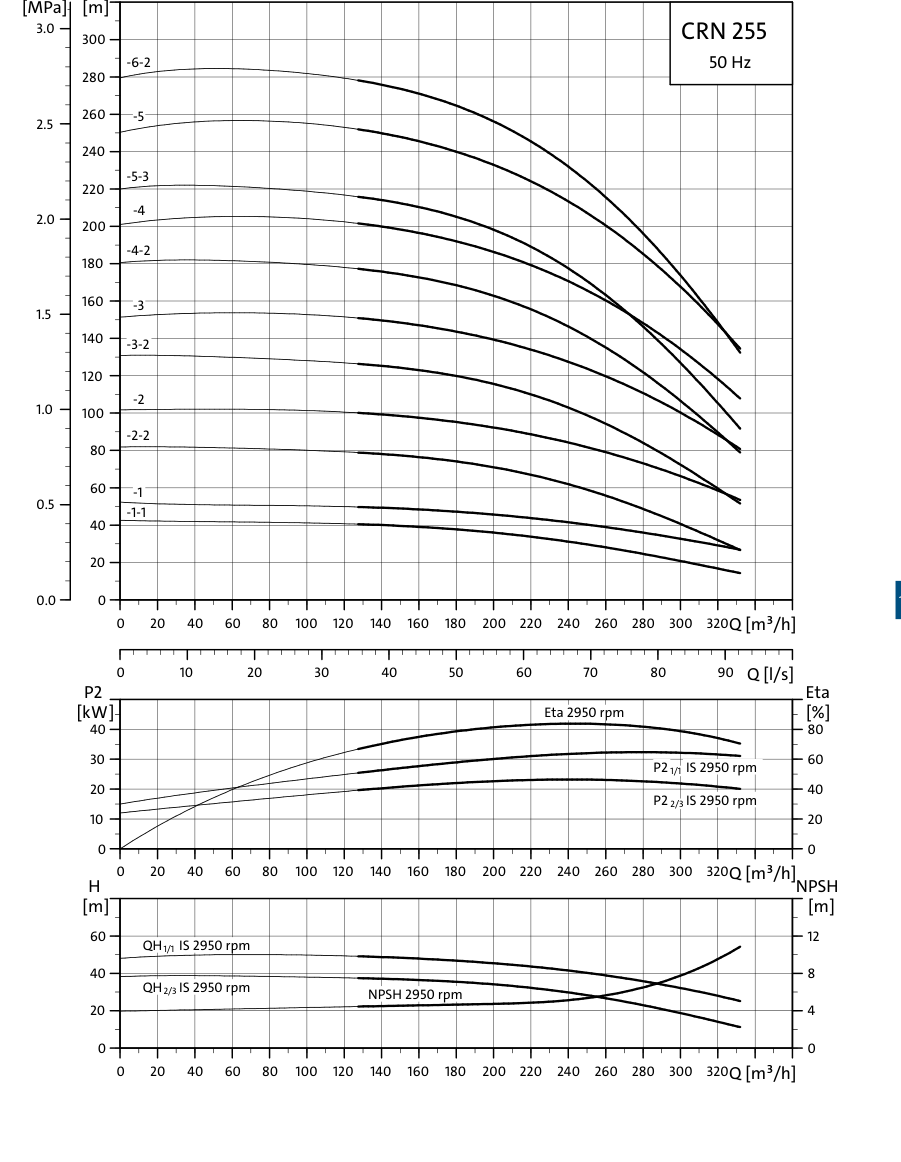

SINES - Grundfos CRN 255 - performance curves 50 Hz

CRN 255 performance curves — 50 Hz, 2950 rpm, ISO 9906:2012 Grade 3B. Maximum TDH: 285 m — maximum flow rate: 300 m3/h.



Grundfos Product Center →

SINES - Grundfos CR, CRI, CRN - range performance overview (50 Hz)

Performance range - GRUNDFOS CR, CRI, CRN vertical multistage pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CRN 255 range — three-phase vertical multistage pumps 380-415 V, 50 Hz, all stainless steel AISI 316, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93435450CRN 255-1-13056.1Flanges DN200
93435386CRN 255-1-13056.1PJE (Victaulic)
93435451CRN 255-14584.7Flanges DN200
93435388CRN 255-14584.7PJE (Victaulic)
93435452CRN 255-2-255103.4Flanges DN200
93435389CRN 255-2-255103.4PJE (Victaulic)
92905898CRN 255-275132Flanges DN200
92906090CRN 255-275132PJE (Victaulic)
92905899CRN 255-3-290159Flanges DN200
92906091CRN 255-3-290159PJE (Victaulic)
92905900CRN 255-3110193Flanges DN200
92906092CRN 255-3110193PJE (Victaulic)
92905901CRN 255-4-2132231Flanges DN200
92906093CRN 255-4-2132231PJE (Victaulic)
92905902CRN 255-4160278Flanges DN200
92906094CRN 255-4160278PJE (Victaulic)
92905903CRN 255-5-3160278Flanges DN200
92906095CRN 255-5-3160278PJE (Victaulic)
92905904CRN 255-5200347Flanges DN200
92906096CRN 255-5200347PJE (Victaulic)
92905906CRN 255-6-2200347Flanges DN200
92906097CRN 255-6-2200347PJE (Victaulic)
