GRUNDFOS CRN 185

Categorie : Surface pumps

Max. TDH: 360m - Max. flow rate: 220m3/h

Grundfos CRN 185 is the all-stainless-steel EN 1.4401 (AISI 316) version of the CR 185 — for aggressive liquids, process water and water treatment. Three-phase IE4 motor from 18.5 to 200 kW. 16 stage variants. DN 200 flange connection (or PJE/Victaulic grooved coupling).

CRN 185-1-1 18.5 kW	CRN 185-1 22 kW	CRN 185-2-2 37 kW
CRN 185-2 45 kW	CRN 185-3-3 55 kW	CRN 185-3 75 kW
CRN 185-4-3 75 kW	CRN 185-4 90 kW	CRN 185-5 110 kW
CRN 185-5-3 110 kW	CRN 185-6 132 kW	CRN 185-6-3 132 kW
CRN 185-7 160 kW	CRN 185-7-3 160 kW	CRN 185-8 200 kW
CRN 185-8-3 200 kW
Solar pumping systems for reliable Water Supply in Africa

Grundfos CRN is the all-stainless-steel version of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level, for a compact footprint. The CRN 185 covers a flow rate up to 220 m3/h (185 m3/h nominal) and a TDH up to 360 m, with a maximum efficiency of 84%.

All-stainless-steel construction: all parts in contact with the liquid are made of EN 1.4401 (AISI 316) stainless steel — the choice for aggressive and industrial liquids (acids, alkalis, reverse osmosis, demineralisation, separators). Balanced cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 °C, operating pressure up to 40 bar depending on the model.

High-efficiency three-phase IE4 motor, from 18.5 to 200 kW (Grundfos MG up to 22 kW, Innomotics — formerly Siemens — above). Variable-speed control is possible with an external Grundfos CUE frequency converter, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis). DN 200 flange connection (or PJE/Victaulic grooved coupling). 16 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialised in Grundfos pumps worldwide. Our teams support installers, resellers and distributors on B2B and export markets (Africa, Maghreb, Middle East).

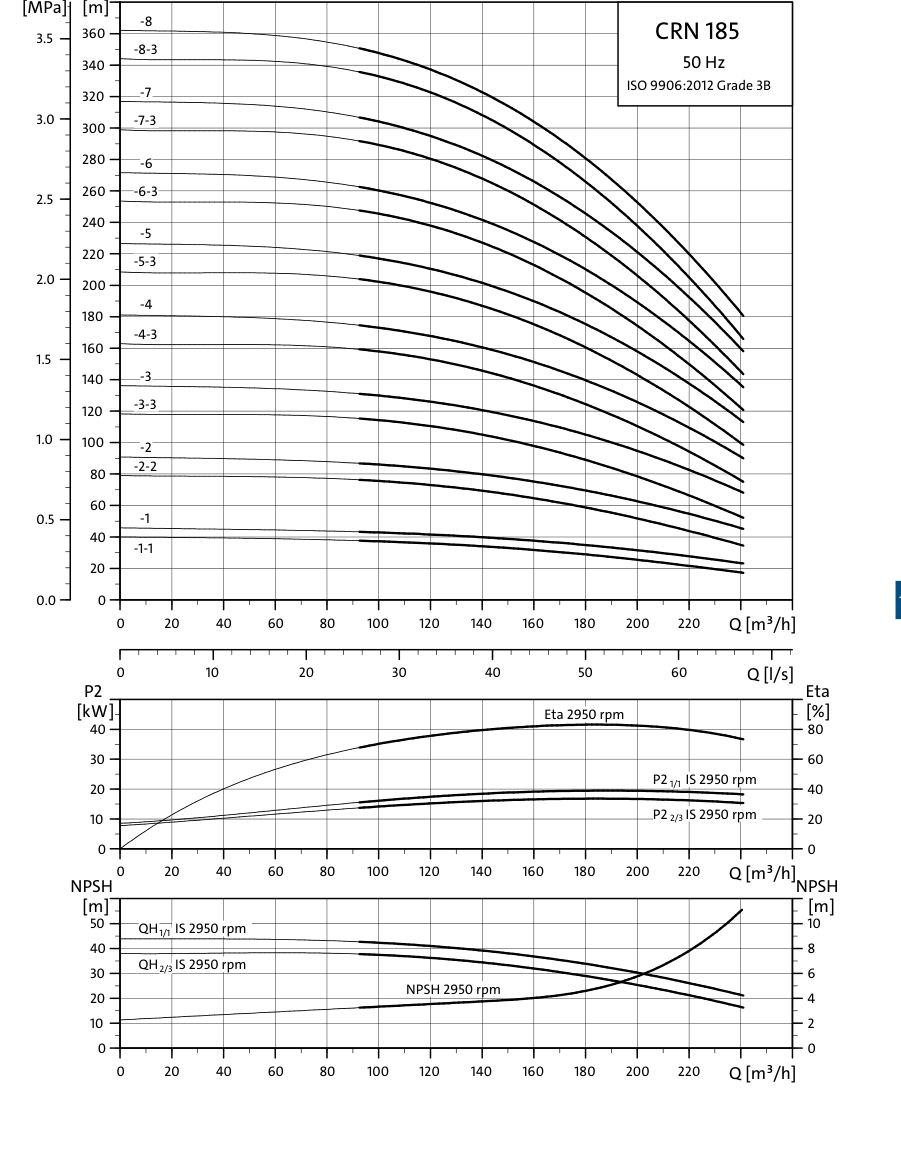

SINES - Grundfos CRN 185 - performance curves 50 Hz

CRN 185 performance curves — 50 Hz, 2950 rpm, ISO 9906:2012 Grade 3B. Maximum TDH: 360 m — maximum flow rate: 220 m3/h.

Grundfos Product Center →

SINES - Grundfos CR, CRI, CRN - range performance overview (50 Hz)

Performance range - GRUNDFOS CR, CRI, CRN vertical multistage pumps - Source: http://www.grundfos.com/

References & article codes

Grundfos CRN 185 range — three-phase vertical multistage pumps 380-415 V, 50 Hz, all stainless steel AISI 316, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code	Designation	P2 [kW]	In [A]	Connection
93390794	CRN 185-1-1	18.5	39.5	Flanges DN200
93391230	CRN 185-1-1	18.5	39.5	PJE (Victaulic)
93436103	CRN 185-1	22	41.8	Flanges DN200
93436076	CRN 185-1	22	41.8	PJE (Victaulic)
93435432	CRN 185-2-2	37	69.3	Flanges DN200
93435380	CRN 185-2-2	37	69.3	PJE (Victaulic)
93435434	CRN 185-2	45	84.7	Flanges DN200
93435381	CRN 185-2	45	84.7	PJE (Victaulic)
93435436	CRN 185-3-3	55	103.4	Flanges DN200
93435382	CRN 185-3-3	55	103.4	PJE (Victaulic)
92905876	CRN 185-3	75	132	Flanges DN200
92906056	CRN 185-3	75	132	PJE (Victaulic)
92905877	CRN 185-4-3	75	132	Flanges DN200
92906057	CRN 185-4-3	75	132	PJE (Victaulic)
92905878	CRN 185-4	90	159	Flanges DN200
92906058	CRN 185-4	90	159	PJE (Victaulic)
92905880	CRN 185-5	110	193	Flanges DN200
92906061	CRN 185-5	110	193	PJE (Victaulic)
92905879	CRN 185-5-3	110	193	Flanges DN200
92906059	CRN 185-5-3	110	193	PJE (Victaulic)
92905883	CRN 185-6	132	231	Flanges DN200
92906063	CRN 185-6	132	231	PJE (Victaulic)
92905882	CRN 185-6-3	132	231	Flanges DN200
92906062	CRN 185-6-3	132	231	PJE (Victaulic)
92905885	CRN 185-7	160	278	Flanges DN200
92906066	CRN 185-7	160	278	PJE (Victaulic)
92905884	CRN 185-7-3	160	278	Flanges DN200
92906064	CRN 185-7-3	160	278	PJE (Victaulic)
92905887	CRN 185-8	200	347	Flanges DN200
92906068	CRN 185-8	200	347	PJE (Victaulic)
92905886	CRN 185-8-3	200	347	Flanges DN200
92906067	CRN 185-8-3	200	347	PJE (Victaulic)
