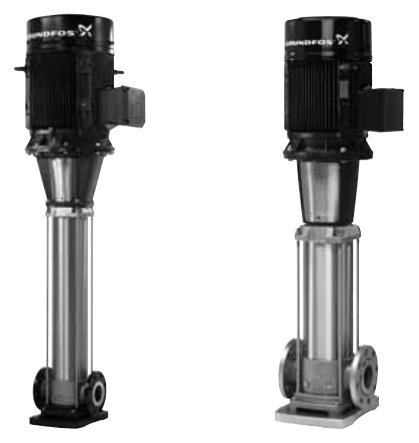

SINES - Grundfos CRN 155 - vertical multistage surface pump


GRUNDFOS CRN 155


  • Categorie : Surface pumps

Max. TDH: 400m - Max. flow rate: 190m3/h

Grundfos CRN 155 is the all-stainless-steel EN 1.4401 (AISI 316) version of the CR 155 — for aggressive liquids, process water and water treatment. Three-phase IE4 motor from 11 to 160 kW. 16 stage variants. DN 150 flange connection (or PJE/Victaulic grooved coupling).


CRN 155-1-1

11 kW

 CRN 155-1

15 kW

 CRN 155-2-2

22 kW
CRN 155-2

30 kW

 CRN 155-3-2

37 kW

 CRN 155-3

45 kW
CRN 155-4-1

55 kW

 CRN 155-5

75 kW

 CRN 155-5-2

75 kW
CRN 155-6

90 kW

 CRN 155-7

110 kW

 CRN 155-8-2

110 kW
CRN 155-8

132 kW

 CRN 155-9

132 kW

 CRN 155-10

160 kW
CRN 155-11-1

160 kW


Solar pumping systems for reliable Water Supply in Africa

Grundfos CRN is the all-stainless-steel version of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level, for a compact footprint. The CRN 155 covers a flow rate up to 190 m3/h (155 m3/h nominal) and a TDH up to 400 m, with a maximum efficiency of 83%.

All-stainless-steel construction: all parts in contact with the liquid are made of EN 1.4401 (AISI 316) stainless steel — the choice for aggressive and industrial liquids (acids, alkalis, reverse osmosis, demineralisation, separators). Balanced cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 °C, operating pressure up to 40 bar depending on the model.

High-efficiency three-phase IE4 motor, from 11 to 160 kW (Grundfos MG up to 22 kW, Innomotics — formerly Siemens — above). CRNE versions with integrated MGE frequency converter available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis). DN 150 flange connection (or PJE/Victaulic grooved coupling). 16 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialised in Grundfos pumps worldwide. Our teams support installers, resellers and distributors on B2B and export markets (Africa, Maghreb, Middle East).

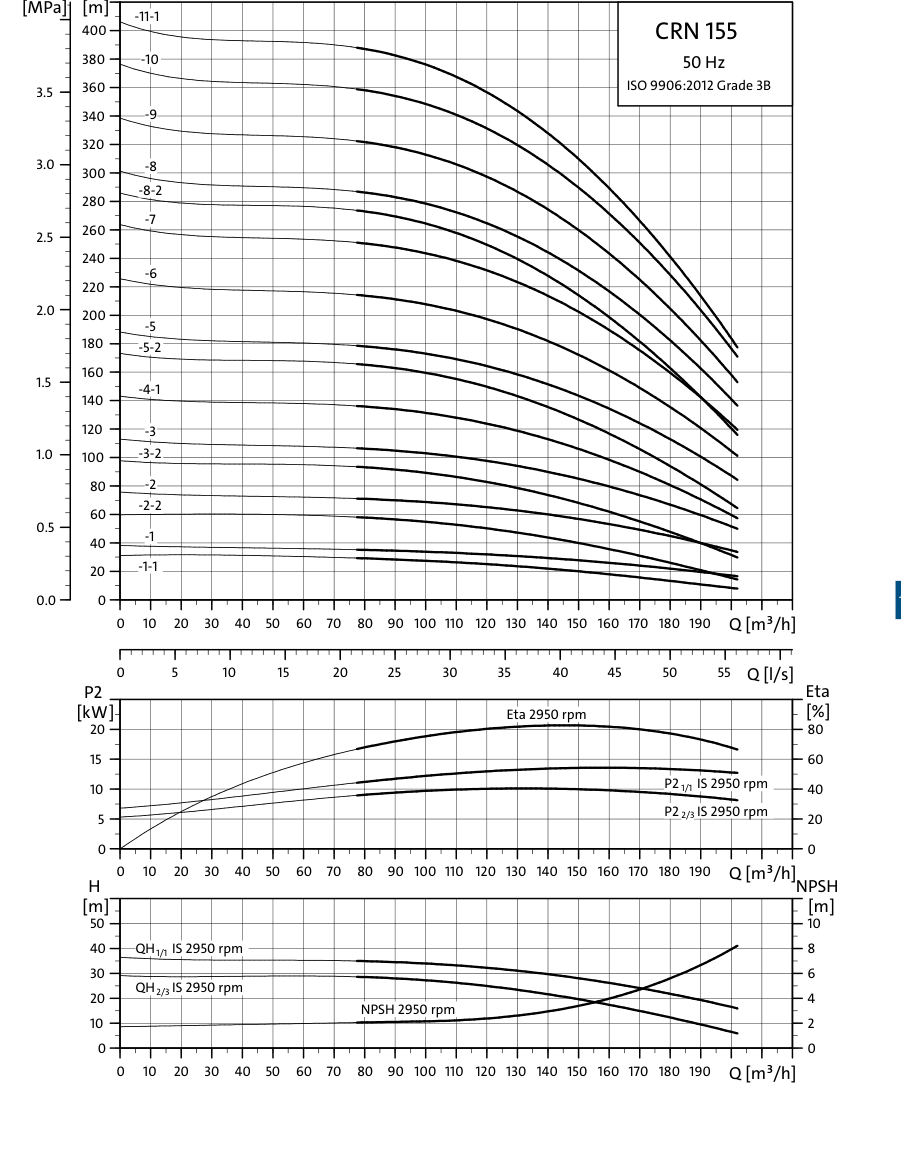

SINES - Grundfos CRN 155 - performance curves 50 Hz

CRN 155 performance curves — 50 Hz, 2950 rpm, ISO 9906:2012 Grade 3B. Maximum TDH: 400 m — maximum flow rate: 190 m3/h.



Grundfos Product Center →

SINES - Grundfos CR, CRI, CRN - range performance overview (50 Hz)

Performance range - GRUNDFOS CR, CRI, CRN vertical multistage pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CRN 155 range — three-phase vertical multistage pumps 380-415 V, 50 Hz, all stainless steel AISI 316, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93390788CRN 155-1-11122.2Flanges DN150
93391203CRN 155-1-11122.2PJE (Victaulic)
93390791CRN 155-11530.5Flanges DN150
93391207CRN 155-11530.5PJE (Victaulic)
93436101CRN 155-2-22241.8Flanges DN150
93436075CRN 155-2-22241.8PJE (Victaulic)
93435428CRN 155-23056.1Flanges DN150
93435376CRN 155-23056.1PJE (Victaulic)
93435429CRN 155-3-23769.3Flanges DN150
93435377CRN 155-3-23769.3PJE (Victaulic)
93435430CRN 155-34584.7Flanges DN150
93435378CRN 155-34584.7PJE (Victaulic)
93435431CRN 155-4-155103.4Flanges DN150
93435379CRN 155-4-155103.4PJE (Victaulic)
92905858CRN 155-575132Flanges DN150
92906047CRN 155-575132PJE (Victaulic)
92905857CRN 155-5-275132Flanges DN150
92906045CRN 155-5-275132PJE (Victaulic)
92905859CRN 155-690159Flanges DN150
92906048CRN 155-690159PJE (Victaulic)
92905870CRN 155-7110193Flanges DN150
92906049CRN 155-7110193PJE (Victaulic)
92905871CRN 155-8-2110193Flanges DN150
92906050CRN 155-8-2110193PJE (Victaulic)
92905872CRN 155-8132231Flanges DN150
92906051CRN 155-8132231PJE (Victaulic)
92905873CRN 155-9132231Flanges DN150
92906052CRN 155-9132231PJE (Victaulic)
92905874CRN 155-10160278Flanges DN150
92906054CRN 155-10160278PJE (Victaulic)
92905875CRN 155-11-1160278Flanges DN150
92906055CRN 155-11-1160278PJE (Victaulic)
