SINES - Grundfos CRN 125 - vertical multistage stainless steel surface pump


GRUNDFOS CRN 125


  • Categorie : Surface pumps

Max. TDH: 400m - Max. flow rate: 150m3/h - vertical multistage in-line

The CRN 125 is the all-stainless-steel EN 1.4401 (AISI 316) version of the CR 125 — designed for aggressive liquids, process water and water treatment. Three-phase IE4 motor from 11 to 132 kW. 17 stage variants. Flange connection DN 150 (or PJE/Victaulic grooved coupling).


CRN 125-1

11 kW

 CRN 125-2-2

15 kW

 CRN 125-2-1

18.5 kW
CRN 125-2

22 kW

 CRN 125-3-1

30 kW

 CRN 125-3

37 kW
CRN 125-4-2

37 kW

 CRN 125-4

45 kW

 CRN 125-5

55 kW
CRN 125-6

75 kW

 CRN 125-7

75 kW

 CRN 125-8

90 kW
CRN 125-9-2

90 kW

 CRN 125-9

110 kW

 CRN 125-10

110 kW
CRN 125-11

132 kW

 CRN 125-12

132 kW


Official Grundfos distributor — B2B export worldwide

The Grundfos CRN is the all-stainless-steel version of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level for a compact footprint. The CRN 125 covers flow rates up to 150 m3/h (nominal 125 m3/h) and head up to 400 m, with a maximum efficiency of 82%.

All-stainless-steel construction: all parts in contact with the liquid are made of EN 1.4401 (AISI 316) stainless steel — the right choice for aggressive and industrial liquids (acids, alkalis, reverse osmosis, demineralisation, separators). Balanced cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 °C, operating pressure up to 25 bar depending on the model.

High-efficiency three-phase IE4 motor, from 11 to 132 kW (Grundfos MG up to 22 kW, Innomotics — formerly Siemens — above). CRNE versions with integrated MGE frequency converter available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis). Flange connection DN 150 (or PJE/Victaulic grooved coupling). 17 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is a wholesaler and exporter specialised in Grundfos pumps for B2B customers worldwide. Our teams support installers, resellers and distributors for export to Africa, the Middle East and beyond.


SINES - Grundfos CRN - how to read the type designation

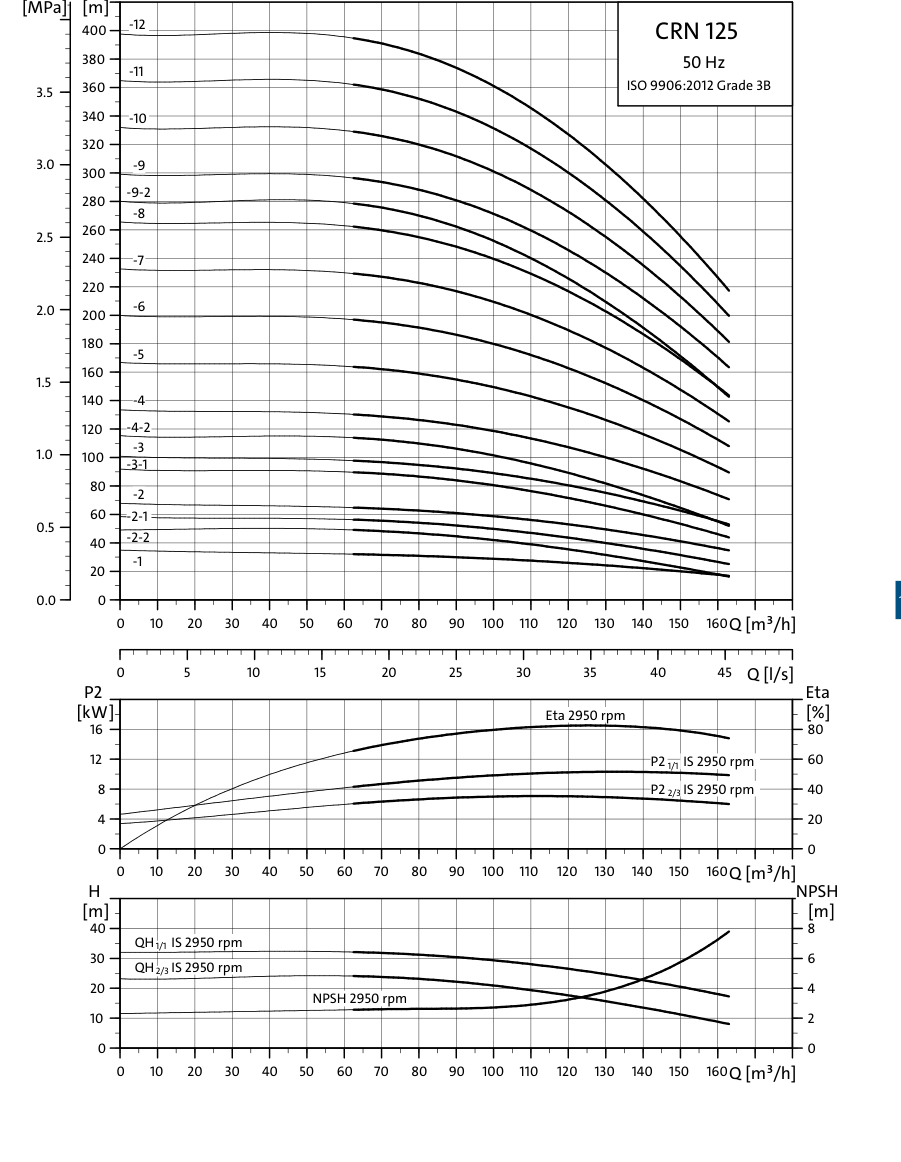

SINES - Grundfos CRN 125 - performance curves 50 Hz

Performance curves of the CRN 125 — 50 Hz, 2950 rpm, ISO 9906:2012 Grade 3B (source: Grundfos professional price list 2026). Maximum TDH: 400 m — maximum flow rate: 150 m3/h.



SINES - Grundfos CR, CRI, CRN - range performance ranges (50 Hz)

Performance ranges of the Grundfos CR, CRI, CRN vertical multistage pump range - 50 Hz - Source: https://www.grundfos.com/




References & article codes

Grundfos CRN 125 range — three-phase vertical multistage pumps 380-415 V, 50 Hz, all-stainless-steel AISI 316, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93390766CRN 125-11122.2Flanges DN150
93391190CRN 125-11122.2PJE (Victaulic)
93390780CRN 125-2-21530.5Flanges DN150
93391194CRN 125-2-21530.5PJE (Victaulic)
93390784CRN 125-2-118.539.5Flanges DN150
93391199CRN 125-2-118.539.5PJE (Victaulic)
93436100CRN 125-22241.8Flanges DN150
93436073CRN 125-22241.8PJE (Victaulic)
93435422CRN 125-3-13056.1Flanges DN150
93435371CRN 125-3-13056.1PJE (Victaulic)
93435424CRN 125-33769.3Flanges DN150
93435372CRN 125-33769.3PJE (Victaulic)
93435425CRN 125-4-23769.3Flanges DN150
93435373CRN 125-4-23769.3PJE (Victaulic)
93435426CRN 125-44584.7Flanges DN150
93435374CRN 125-44584.7PJE (Victaulic)
93435427CRN 125-555103.4Flanges DN150
93435375CRN 125-555103.4PJE (Victaulic)
92905838CRN 125-675132Flanges DN150
92906037CRN 125-675132PJE (Victaulic)
92905839CRN 125-775132Flanges DN150
92906038CRN 125-775132PJE (Victaulic)
92905850CRN 125-890159Flanges DN150
92906039CRN 125-890159PJE (Victaulic)
92905851CRN 125-9-290159Flanges DN150
92906040CRN 125-9-290159PJE (Victaulic)
92905852CRN 125-9110193Flanges DN150
92906041CRN 125-9110193PJE (Victaulic)
92905853CRN 125-10110193Flanges DN150
92906042CRN 125-10110193PJE (Victaulic)
92905855CRN 125-11132231Flanges DN150
92906043CRN 125-11132231PJE (Victaulic)
92905856CRN 125-12132231Flanges DN150
92906044CRN 125-12132231PJE (Victaulic)

For detailed datasheets, dimensions and a customised pump selection, consult the Grundfos Product Center.
