SINES - Grundfos CRI, CRN 3 - vertical multistage pump


GRUNDFOS CRI, CRN 3


  • Categorie : Surface pumps

Max. TDH: 240m - Max. flow rate: 4.5m3/h

Grundfos CRI 3 and CRN 3 are the all-stainless-steel versions of the CR 3 vertical multistage in-line centrifugal pump: EN 1.4301 (AISI 304) for the CRI, EN 1.4401 (AISI 316) for the CRN - ideal for aggressive liquids and industrial applications. Three-phase IE3 motor from 0.37 to 3 kW. 23 stage variants. Oval-flange Rp 1 or DN 25/32 flange connection.


CRI/CRN 3-2

0.37 kW

 CRI/CRN 3-3

0.37 kW

 CRI/CRN 3-4

0.37 kW
CRI/CRN 3-5

0.37 kW

 CRI/CRN 3-6

0.55 kW

 CRI/CRN 3-7

0.55 kW
CRI/CRN 3-8

0.75 kW

 CRI/CRN 3-9

0.75 kW

 CRI/CRN 3-10

0.75 kW
CRI/CRN 3-11

1.1 kW

 CRI/CRN 3-12

1.1 kW

 CRI/CRN 3-13

1.1 kW
CRI/CRN 3-15

1.1 kW

 CRI/CRN 3-17

1.5 kW

 CRI/CRN 3-19

1.5 kW
CRI/CRN 3-21

2.2 kW

 CRI/CRN 3-23

2.2 kW

 CRI/CRN 3-25

2.2 kW
CRI/CRN 3-27

2.2 kW

 CRI/CRN 3-29

2.2 kW

 CRI/CRN 3-31

3 kW
CRI/CRN 3-33

3 kW

 CRI/CRN 3-36

3 kW


Solar pumping systems for reliable Water Supply in Africa

Grundfos CRI and CRN are the all-stainless-steel versions of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports at the same level, for a compact footprint. The CRI, CRN 3 delivers a flow rate up to 4.5 m3/h (nominal 3 m3/h) and a TDH up to 240 m.

All-stainless-steel construction: the CRI 3 is made of EN 1.4301 (AISI 304) stainless steel, the CRN 3 of EN 1.4401 (AISI 316) for aggressive liquids (acids, alkalis, reverse osmosis, demineralisation). Balanced HQQE cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 deg C, max operating pressure 24 bar.

High-efficiency IE3 three-phase Grundfos MG motor, from 0.37 to 3 kW. CRIE / CRNE versions with integrated MGE variable frequency drive available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing installations, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis with the CRN). Oval-flange Rp 1 or DN 25/32 flange connection. 23 stage variants available to match the operating point precisely.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialising in Grundfos pumps for B2B customers worldwide. Our teams support installers, resellers and distributors across international markets.


SINES - Grundfos CR - reference designation

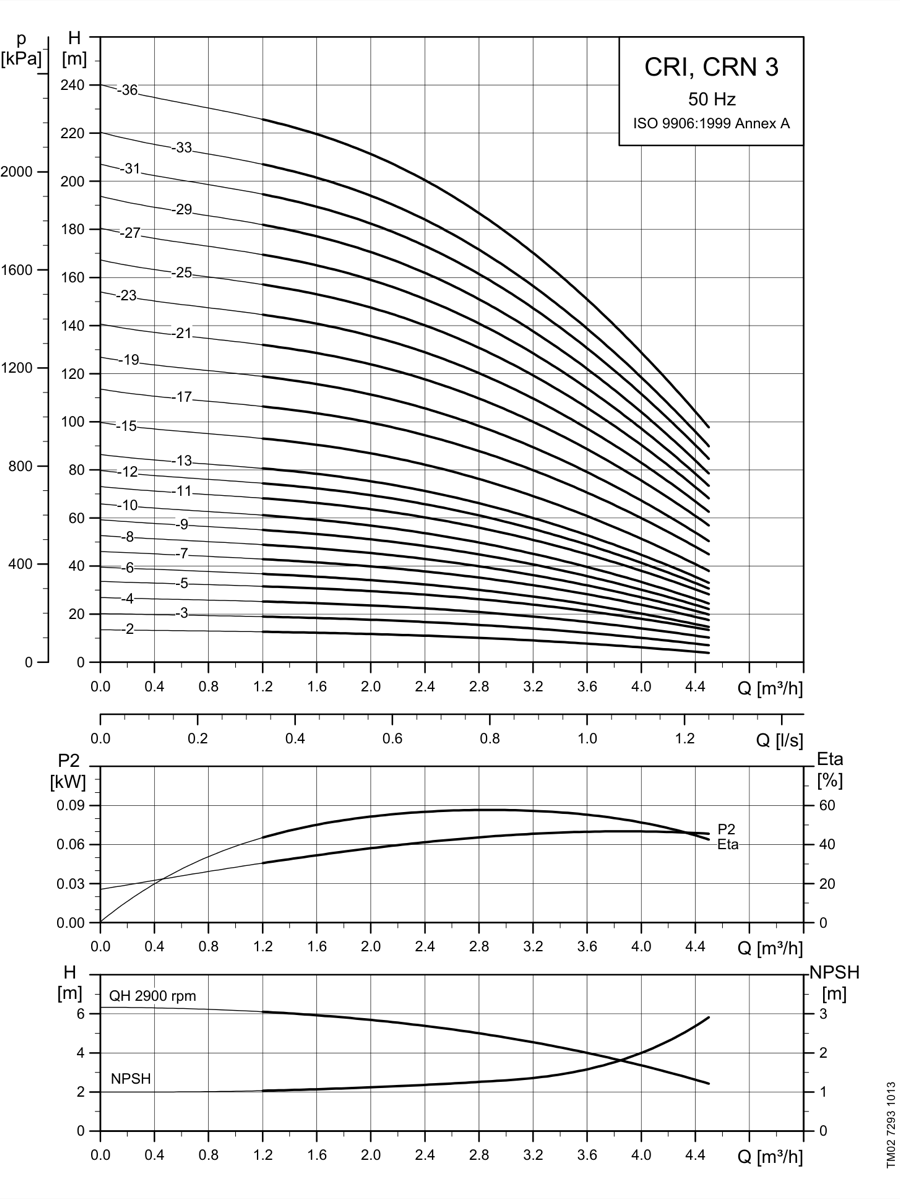

SINES - Grundfos CRI, CRN 3 - performance curves 50 Hz

Performance curves of the CRI, CRN 3 - 50 Hz, 2900 rpm, ISO 9906:1999 annex A (source: Grundfos technical booklet). Maximum TDH: 240 m - maximum flow rate: 4.5 m3/h.



SINES - surface pumps - Grundfos CR, CRI, CRN range

Performance range - GRUNDFOS CR Surface pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CRI 3 (AISI 304 stainless steel) and CRN 3 (AISI 316 stainless steel) ranges — vertical multistage three-phase pumps 380-415 V, 50 Hz, HQQE mechanical seal. Single-phase 230 V, Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93394065CRI 3-20.371Flanges DN25/DN32
93393511CRI 3-20.371PJE (Victaulic)
93394067CRI 3-30.371Flanges DN25/DN32
93393514CRI 3-30.371PJE (Victaulic)
93394090CRI 3-40.371Flanges DN25/DN32
93393517CRI 3-40.371PJE (Victaulic)
93394092CRI 3-50.371Flanges DN25/DN32
93393521CRI 3-50.371PJE (Victaulic)
93394095CRI 3-60.551.3Flanges DN25/DN32
93393523CRI 3-60.551.3PJE (Victaulic)
93394098CRI 3-70.551.3Flanges DN25/DN32
93393525CRI 3-70.551.3PJE (Victaulic)
93394110CRI 3-80.751.7Flanges DN25/DN32
93393528CRI 3-80.751.7PJE (Victaulic)
93394113CRI 3-90.751.7Flanges DN25/DN32
93393531CRI 3-90.751.7PJE (Victaulic)
93394116CRI 3-100.751.7Flanges DN25/DN32
93393533CRI 3-100.751.7PJE (Victaulic)
93394119CRI 3-111.12.4Flanges DN25/DN32
93393535CRI 3-111.12.4PJE (Victaulic)
93394122CRI 3-121.12.4Flanges DN25/DN32
93393537CRI 3-121.12.4PJE (Victaulic)
93394124CRI 3-131.12.4Flanges DN25/DN32
93393540CRI 3-131.12.4PJE (Victaulic)
93394127CRI 3-151.12.4Flanges DN25/DN32
93393542CRI 3-151.12.4PJE (Victaulic)
93394141CRI 3-171.53.3Flanges DN25/DN32
93393545CRI 3-171.53.3PJE (Victaulic)
93394146CRI 3-191.53.3Flanges DN25/DN32
93393548CRI 3-191.53.3PJE (Victaulic)
93394148CRI 3-212.24.5Flanges DN25/DN32
93393550CRI 3-212.24.5PJE (Victaulic)
93394151CRI 3-232.24.5Flanges DN25/DN32
93393552CRI 3-232.24.5PJE (Victaulic)
93394154CRI 3-252.24.5Flanges DN25/DN32
93393554CRI 3-252.24.5PJE (Victaulic)
93394156CRI 3-272.24.5Flanges DN25/DN32
93393558CRI 3-272.24.5PJE (Victaulic)
93394158CRI 3-292.24.5Flanges DN25/DN32
93393560CRI 3-292.24.5PJE (Victaulic)
93396232CRI 3-3136Flanges DN25/DN32
93396072CRI 3-3136PJE (Victaulic)
93396233CRI 3-3336Flanges DN25/DN32
93396073CRI 3-3336PJE (Victaulic)
93396234CRI 3-3636Flanges DN25/DN32
93396074CRI 3-3636PJE (Victaulic)
93395205CRN 3-20.371Flanges DN25/DN32
93394795CRN 3-20.371PJE (Victaulic)
93395206CRN 3-30.371Flanges DN25/DN32
93394796CRN 3-30.371PJE (Victaulic)
93395207CRN 3-40.371Flanges DN25/DN32
93394797CRN 3-40.371PJE (Victaulic)
93395208CRN 3-50.371Flanges DN25/DN32
93394798CRN 3-50.371PJE (Victaulic)
93395230CRN 3-60.551.3Flanges DN25/DN32
93394799CRN 3-60.551.3PJE (Victaulic)
93395231CRN 3-70.551.3Flanges DN25/DN32
93394800CRN 3-70.551.3PJE (Victaulic)
93395232CRN 3-80.751.7Flanges DN25/DN32
93394801CRN 3-80.751.7PJE (Victaulic)
93395233CRN 3-90.751.7Flanges DN25/DN32
93394802CRN 3-90.751.7PJE (Victaulic)
93395234CRN 3-100.751.7Flanges DN25/DN32
93394804CRN 3-100.751.7PJE (Victaulic)
93395235CRN 3-111.12.4Flanges DN25/DN32
93394805CRN 3-111.12.4PJE (Victaulic)
93395236CRN 3-121.12.4Flanges DN25/DN32
93394806CRN 3-121.12.4PJE (Victaulic)
93395237CRN 3-131.12.4Flanges DN25/DN32
93394807CRN 3-131.12.4PJE (Victaulic)
93395238CRN 3-151.12.4Flanges DN25/DN32
93394808CRN 3-151.12.4PJE (Victaulic)
93395239CRN 3-171.53.3Flanges DN25/DN32
93394809CRN 3-171.53.3PJE (Victaulic)
93395240CRN 3-191.53.3Flanges DN25/DN32
93394810CRN 3-191.53.3PJE (Victaulic)
93395241CRN 3-212.24.5Flanges DN25/DN32
93394811CRN 3-212.24.5PJE (Victaulic)
93395242CRN 3-232.24.5Flanges DN25/DN32
93394812CRN 3-232.24.5PJE (Victaulic)
93395243CRN 3-252.24.5Flanges DN25/DN32
93394813CRN 3-252.24.5PJE (Victaulic)
93395244CRN 3-272.24.5Flanges DN25/DN32
93394814CRN 3-272.24.5PJE (Victaulic)
93395245CRN 3-292.24.5Flanges DN25/DN32
93394815CRN 3-292.24.5PJE (Victaulic)
93396759CRN 3-3136Flanges DN25/DN32
93396558CRN 3-3136PJE (Victaulic)
93396761CRN 3-3336Flanges DN25/DN32
93396559CRN 3-3336PJE (Victaulic)
93396762CRN 3-3636Flanges DN25/DN32
93396560CRN 3-3636PJE (Victaulic)
