SINES - Grundfos CRI, CRN 10 vertical centrifugal pump


GRUNDFOS CRI, CRN 10


  • Categorie : Surface pumps

Max. TDH: 230m - Max. flow rate: 13m3/h - vertical multistage in-line

The CRI 10 and CRN 10 are the all-stainless-steel versions of the CR 10: EN 1.4301 (AISI 304) for the CRI, EN 1.4401 (AISI 316) for the CRN - ideal for aggressive liquids and industrial applications. IE3 three-phase motor from 0.37 to 7.5 kW. 16 stage variants. Oval flange Rp 1¼ or DN 40 flange connection.


CRI/CRN 10-1

0.37 kW

 CRI/CRN 10-2

0.75 kW

 CRI/CRN 10-3

1.1 kW
CRI/CRN 10-4

1.5 kW

 CRI/CRN 10-5

2.2 kW

 CRI/CRN 10-6

2.2 kW
CRI/CRN 10-7

3 kW

 CRI/CRN 10-8

3 kW

 CRI/CRN 10-9

3 kW
CRI/CRN 10-10

4 kW

 CRI/CRN 10-12

4 kW

 CRI/CRN 10-14

5.5 kW
CRI/CRN 10-16

5.5 kW

 CRI/CRN 10-18

7.5 kW

 CRI/CRN 10-20

7.5 kW
CRI/CRN 10-22

7.5 kW


Solar pumping systems for reliable Water Supply in Africa

Grundfos CRI and CRN are the all-stainless-steel versions of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level, for a compact footprint. The CRI, CRN 10 covers a flow rate up to 13 m³/h (nominal 10 m³/h) and a TDH up to 230 m, with a maximum efficiency of 70%.

All-stainless-steel construction: the CRI 10 is made of EN 1.4301 (AISI 304) stainless steel, the CRN 10 of EN 1.4401 (AISI 316) for aggressive liquids (acids, alkalis, reverse osmosis, demineralisation). Balanced HQQE cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 °C, maximum operating pressure 22 bar.

High-efficiency IE3 three-phase Grundfos MG motor, from 0.37 to 7.5 kW. CRIE / CRNE versions with integrated MGE frequency converter are available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis with the CRN). Oval flange Rp 1¼ or DN 40 flange connection. 16 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is a wholesaler and exporter specialising in Grundfos pumps. Our teams support installers, resellers and distributors worldwide on a B2B basis.


SINES - Grundfos CR, CRI, CRN designation key

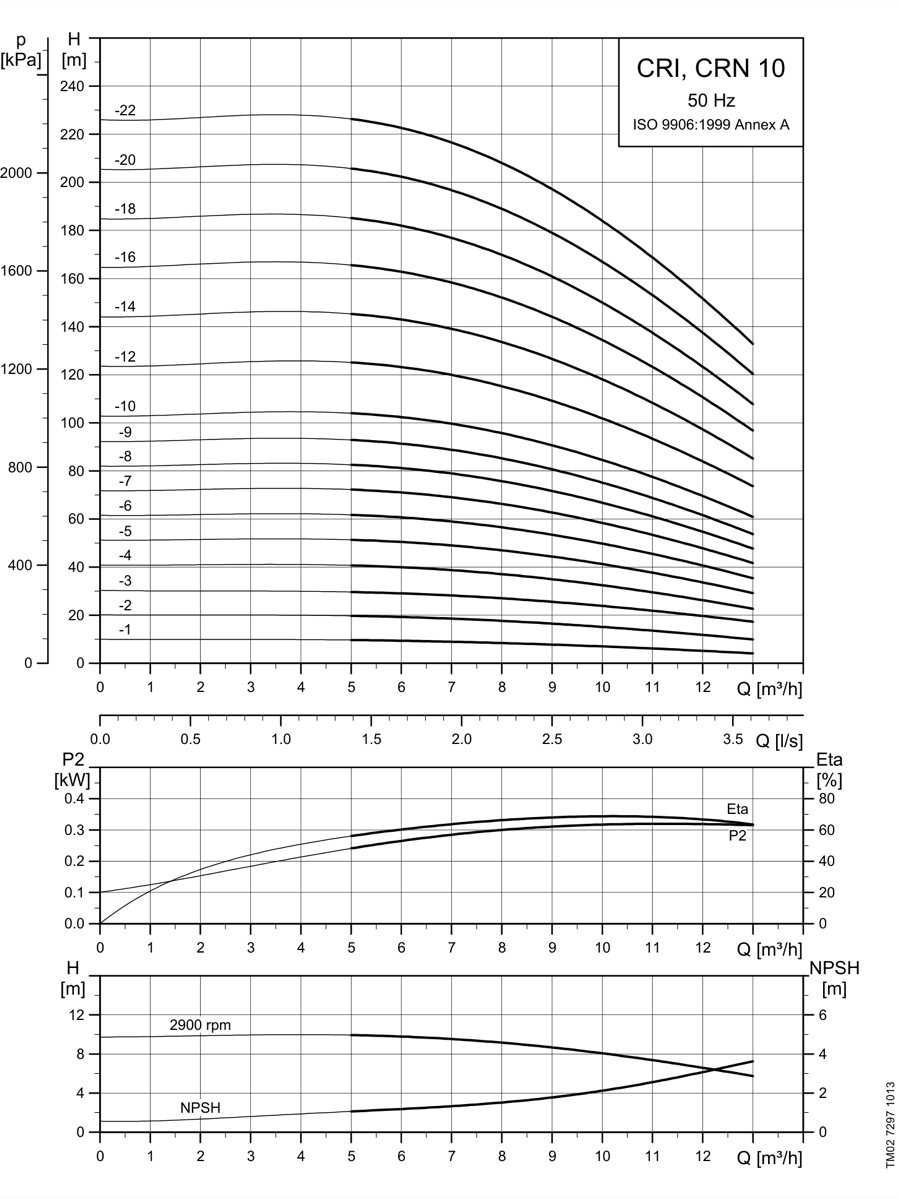

SINES - Grundfos CRI, CRN 10 - performance curves 50 Hz

SINES - Grundfos CRI, CRN 10 - performance curves 50 Hz



SINES - surface pumps - Grundfos CR, CRI, CRN range

Performance range - GRUNDFOS CR, CRI, CRN Surface pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CRI 10 (AISI 304 stainless steel) and CRN 10 (AISI 316 stainless steel) ranges - vertical multistage three-phase pumps, 380-415 V / 50 Hz, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93388963CRI 10-10.371Flanges DN40
93388895CRI 10-10.371PJE (Victaulic)
93388964CRI 10-20.751.7Flanges DN40
93388896CRI 10-20.751.7PJE (Victaulic)
93388965CRI 10-31.12.4Flanges DN40
93388897CRI 10-31.12.4PJE (Victaulic)
93388967CRI 10-41.53.3Flanges DN40
93388898CRI 10-41.53.3PJE (Victaulic)
93388968CRI 10-52.24.5Flanges DN40
93388899CRI 10-52.24.5PJE (Victaulic)
93388969CRI 10-62.24.5Flanges DN40
93388900CRI 10-62.24.5PJE (Victaulic)
93389546CRI 10-736Flanges DN40
93389464CRI 10-736PJE (Victaulic)
93389547CRI 10-836Flanges DN40
93389465CRI 10-836PJE (Victaulic)
93389548CRI 10-936Flanges DN40
93389466CRI 10-936PJE (Victaulic)
93389549CRI 10-1047.5Flanges DN40
93389467CRI 10-1047.5PJE (Victaulic)
93389550CRI 10-1247.5Flanges DN40
93389468CRI 10-1247.5PJE (Victaulic)
93389551CRI 10-145.511Flanges DN40
93389469CRI 10-145.511PJE (Victaulic)
93389552CRI 10-165.511Flanges DN40
93389480CRI 10-165.511PJE (Victaulic)
93389553CRI 10-187.514.4Flanges DN40
93389481CRI 10-187.514.4PJE (Victaulic)
93389554CRI 10-207.514.4Flanges DN40
93389482CRI 10-207.514.4PJE (Victaulic)
93389555CRI 10-227.514.4Flanges DN40
93389483CRI 10-227.514.4PJE (Victaulic)
93389168CRN 10-10.371Flanges DN40
93389103CRN 10-10.371PJE (Victaulic)
93389169CRN 10-20.751.7Flanges DN40
93389104CRN 10-20.751.7PJE (Victaulic)
93389170CRN 10-31.12.4Flanges DN40
93389105CRN 10-31.12.4PJE (Victaulic)
93389171CRN 10-41.53.3Flanges DN40
93389106CRN 10-41.53.3PJE (Victaulic)
93389172CRN 10-52.24.5Flanges DN40
93389107CRN 10-52.24.5PJE (Victaulic)
93389173CRN 10-62.24.5Flanges DN40
93389108CRN 10-62.24.5PJE (Victaulic)
93389764CRN 10-736Flanges DN40
93389691CRN 10-736PJE (Victaulic)
93389765CRN 10-836Flanges DN40
93389692CRN 10-836PJE (Victaulic)
93389766CRN 10-936Flanges DN40
93389693CRN 10-936PJE (Victaulic)
93389767CRN 10-1047.5Flanges DN40
93389694CRN 10-1047.5PJE (Victaulic)
93389768CRN 10-1247.5Flanges DN40
93389695CRN 10-1247.5PJE (Victaulic)
93389769CRN 10-145.511Flanges DN40
93389696CRN 10-145.511PJE (Victaulic)
93389770CRN 10-165.511Flanges DN40
93389697CRN 10-165.511PJE (Victaulic)
93389771CRN 10-187.514.4Flanges DN40
93389698CRN 10-187.514.4PJE (Victaulic)
93389772CRN 10-207.514.4Flanges DN40
93389699CRN 10-207.514.4PJE (Victaulic)
93389773CRN 10-227.514.4Flanges DN40
93389700CRN 10-227.514.4PJE (Victaulic)
