SINES - Grundfos CRI, CRN 1 - vertical multistage pump


GRUNDFOS CRI, CRN 1


  • Categorie : Surface pumps

Max. TDH: 225m - Max. flow rate: 2.4m3/h

Grundfos CRI 1 and CRN 1 are the all-stainless-steel versions of the CR 1 vertical multistage in-line centrifugal pump: EN 1.4301 (AISI 304) for the CRI, EN 1.4401 (AISI 316) for the CRN - ideal for aggressive liquids and industrial applications. Three-phase IE3 motor from 0.37 to 2.2 kW. 22 stage variants. Oval-flange Rp 1 or DN 25/32 flange connection.


CRI/CRN 1-2

0.37 kW

 CRI/CRN 1-3

0.37 kW

 CRI/CRN 1-4

0.37 kW
CRI/CRN 1-5

0.37 kW

 CRI/CRN 1-6

0.37 kW

 CRI/CRN 1-7

0.37 kW
CRI/CRN 1-8

0.55 kW

 CRI/CRN 1-9

0.55 kW

 CRI/CRN 1-10

0.55 kW
CRI/CRN 1-11

0.55 kW

 CRI/CRN 1-12

0.75 kW

 CRI/CRN 1-13

0.75 kW
CRI/CRN 1-15

0.75 kW

 CRI/CRN 1-17

1.1 kW

 CRI/CRN 1-19

1.1 kW
CRI/CRN 1-21

1.1 kW

 CRI/CRN 1-23

1.1 kW

 CRI/CRN 1-25

1.5 kW
CRI/CRN 1-27

1.5 kW

 CRI/CRN 1-30

1.5 kW

 CRI/CRN 1-33

2.2 kW
CRI/CRN 1-36

2.2 kW


Solar pumping systems for reliable Water Supply in Africa

Grundfos CRI and CRN are the all-stainless-steel versions of the CR vertical multistage in-line centrifugal pumps: suction and discharge ports at the same level, for a compact footprint. The CRI, CRN 1 delivers a flow rate up to 2.4 m3/h (nominal 1 m3/h) and a TDH up to 225 m, with a maximum efficiency of 48%.

All-stainless-steel construction: the CRI 1 is made of EN 1.4301 (AISI 304) stainless steel, the CRN 1 of EN 1.4401 (AISI 316) for aggressive liquids (acids, alkalis, reverse osmosis, demineralisation). Balanced HQQE cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 deg C, max operating pressure 22 bar.

High-efficiency IE3 three-phase Grundfos MG motor, from 0.37 to 2.2 kW. CRIE / CRNE versions with integrated MGE variable frequency drive available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing installations, boiler feed, cooling and air conditioning, irrigation, water treatment (ultra-filtration, reverse osmosis with the CRN). Oval-flange Rp 1 or DN 25/32 flange connection. 22 stage variants available (see table above) to match the operating point precisely.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialising in Grundfos pumps for B2B customers worldwide. Our teams support installers, resellers and distributors across international markets.


SINES - Grundfos CR - reference designation

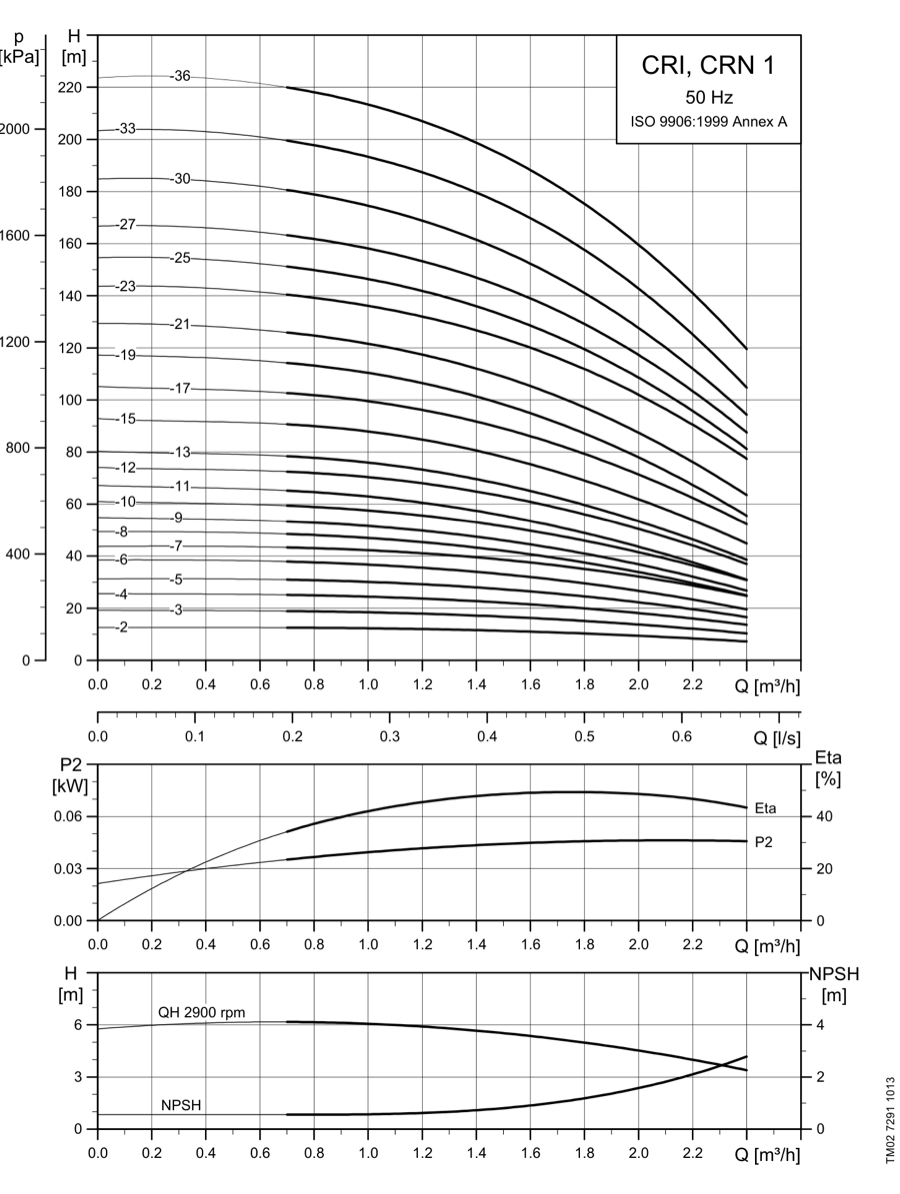

SINES - Grundfos CRI, CRN 1 - performance curves 50 Hz

Performance curves of the CRI, CRN 1 - 50 Hz, 2900 rpm, ISO 9906:1999 annex A (source: Grundfos technical booklet). Maximum TDH: 225 m - maximum flow rate: 2.4 m3/h.



SINES - surface pumps - Grundfos CR, CRI, CRN range

Performance range - GRUNDFOS CR Surface pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CRI 1 (AISI 304 stainless steel) and CRN 1 (AISI 316 stainless steel) ranges — vertical multistage three-phase pumps 380-415 V, 50 Hz, HQQE mechanical seal. Single-phase 230 V, Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93393987CRI 1-20.371Flanges DN25/DN32
93393455CRI 1-20.371PJE (Victaulic)
93394000CRI 1-30.371Flanges DN25/DN32
93393457CRI 1-30.371PJE (Victaulic)
93394004CRI 1-40.371Flanges DN25/DN32
93393460CRI 1-40.371PJE (Victaulic)
93394006CRI 1-50.371Flanges DN25/DN32
93393463CRI 1-50.371PJE (Victaulic)
93394009CRI 1-60.371Flanges DN25/DN32
93393465CRI 1-60.371PJE (Victaulic)
93394021CRI 1-70.371Flanges DN25/DN32
93393468CRI 1-70.371PJE (Victaulic)
93394023CRI 1-80.551.3Flanges DN25/DN32
93393470CRI 1-80.551.3PJE (Victaulic)
93394026CRI 1-90.551.3Flanges DN25/DN32
93393472CRI 1-90.551.3PJE (Victaulic)
93394030CRI 1-100.551.3Flanges DN25/DN32
93393474CRI 1-100.551.3PJE (Victaulic)
93394032CRI 1-110.551.3Flanges DN25/DN32
93393477CRI 1-110.551.3PJE (Victaulic)
93394035CRI 1-120.751.7Flanges DN25/DN32
93393480CRI 1-120.751.7PJE (Victaulic)
93394037CRI 1-130.751.7Flanges DN25/DN32
93393482CRI 1-130.751.7PJE (Victaulic)
93394039CRI 1-150.751.7Flanges DN25/DN32
93393485CRI 1-150.751.7PJE (Victaulic)
93397523CRI 1-171.12.4Flanges DN25/DN32
93397513CRI 1-171.12.4PJE (Victaulic)
93397525CRI 1-191.12.4Flanges DN25/DN32
93397515CRI 1-191.12.4PJE (Victaulic)
93397526CRI 1-211.12.4Flanges DN25/DN32
93397516CRI 1-211.12.4PJE (Victaulic)
93397527CRI 1-231.12.4Flanges DN25/DN32
93397517CRI 1-231.12.4PJE (Victaulic)
93394051CRI 1-251.53.3Flanges DN25/DN32
93393487CRI 1-251.53.3PJE (Victaulic)
93396937CRI 1-271.53.3Flanges DN25/DN32
93393489CRI 1-271.53.3PJE (Victaulic)
93394056CRI 1-301.53.3Flanges DN25/DN32
93393504CRI 1-301.53.3PJE (Victaulic)
93394059CRI 1-332.24.5Flanges DN25/DN32
93393506CRI 1-332.24.5PJE (Victaulic)
93394062CRI 1-362.24.5Flanges DN25/DN32
93393508CRI 1-362.24.5PJE (Victaulic)
93395162CRN 1-20.371Flanges DN25/DN32
93394765CRN 1-20.371PJE (Victaulic)
93395164CRN 1-30.371Flanges DN25/DN32
93394766CRN 1-30.371PJE (Victaulic)
93395166CRN 1-40.371Flanges DN25/DN32
93394767CRN 1-40.371PJE (Victaulic)
93395167CRN 1-50.371Flanges DN25/DN32
93394768CRN 1-50.371PJE (Victaulic)
93395168CRN 1-60.371Flanges DN25/DN32
93394769CRN 1-60.371PJE (Victaulic)
93395169CRN 1-70.371Flanges DN25/DN32
93394781CRN 1-70.371PJE (Victaulic)
93395180CRN 1-80.551.3Flanges DN25/DN32
93394782CRN 1-80.551.3PJE (Victaulic)
93395182CRN 1-90.551.3Flanges DN25/DN32
93394783CRN 1-90.551.3PJE (Victaulic)
93395183CRN 1-100.551.3Flanges DN25/DN32
93394784CRN 1-100.551.3PJE (Victaulic)
93395184CRN 1-110.551.3Flanges DN25/DN32
93394785CRN 1-110.551.3PJE (Victaulic)
93395185CRN 1-120.751.7Flanges DN25/DN32
93394787CRN 1-120.751.7PJE (Victaulic)
93395187CRN 1-130.751.7Flanges DN25/DN32
93394788CRN 1-130.751.7PJE (Victaulic)
93395188CRN 1-150.751.7Flanges DN25/DN32
93394789CRN 1-150.751.7PJE (Victaulic)
93397554CRN 1-171.12.4Flanges DN25/DN32
93397545CRN 1-171.12.4PJE (Victaulic)
93397555CRN 1-191.12.4Flanges DN25/DN32
93397546CRN 1-191.12.4PJE (Victaulic)
93397556CRN 1-211.12.4Flanges DN25/DN32
93397547CRN 1-211.12.4PJE (Victaulic)
93397557CRN 1-231.12.4Flanges DN25/DN32
93397549CRN 1-231.12.4PJE (Victaulic)
93395189CRN 1-251.53.3Flanges DN25/DN32
93394790CRN 1-251.53.3PJE (Victaulic)
93395200CRN 1-271.53.3Flanges DN25/DN32
93394791CRN 1-271.53.3PJE (Victaulic)
93395201CRN 1-301.53.3Flanges DN25/DN32
93394792CRN 1-301.53.3PJE (Victaulic)
93395202CRN 1-332.24.5Flanges DN25/DN32
93394793CRN 1-332.24.5PJE (Victaulic)
93395204CRN 1-362.24.5Flanges DN25/DN32
93394794CRN 1-362.24.5PJE (Victaulic)
