GRUNDFOS CR 95

Categorie : Surface pumps

Max. TDH: 240 m - Max. flow rate: 120 m3/h

The CR 95 is a Grundfos vertical multistage centrifugal pump with an in-line design. Cast-iron pump head and base, AISI 304 stainless steel hydraulics, maintenance-free cartridge mechanical seal. Three-phase IE4 motor from 5.5 to 55 kW. 11 stage variants to cover every duty point. DN 100 flange connection.

CR 95-1-1 5.5 kW	CR 95-1 7.5 kW	CR 95-2-2 11 kW
CR 95-2 15 kW	CR 95-3-2 18.5 kW	CR 95-3 22 kW
CR 95-4 30 kW	CR 95-5 37 kW	CR 95-6 45 kW
CR 95-7 55 kW	CR 95-8-2 55 kW
Official Grundfos distributor, wholesaler and exporter worldwide

The Grundfos CR range consists of vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level for a compact footprint. The CR 95 covers a flow rate up to 120 m³/h (nominal 95 m³/h) and a TDH up to 240 m, with a maximum efficiency of 81%.

Construction: cast-iron pump body and base, hydraulics (impellers, chambers, sleeve) in EN 1.4301 (AISI 304) stainless steel. Balanced, maintenance-free HQQE cartridge mechanical seal. Liquid temperature -20 to +120 °C, operating pressure up to 40 bar depending on the model.

High-efficiency three-phase IE4 motor, 5.5 to 55 kW (Grundfos MG up to 22 kW, Innomotics — formerly Siemens — above). CRE versions with integrated MGE frequency converter available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation. DN 100 flange connection. 11 stage variants available (see table above) for precise matching to the duty point.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialised in Grundfos pumps for B2B customers worldwide. Our teams support installers, resellers and distributors on export markets (Africa, Middle East and beyond).

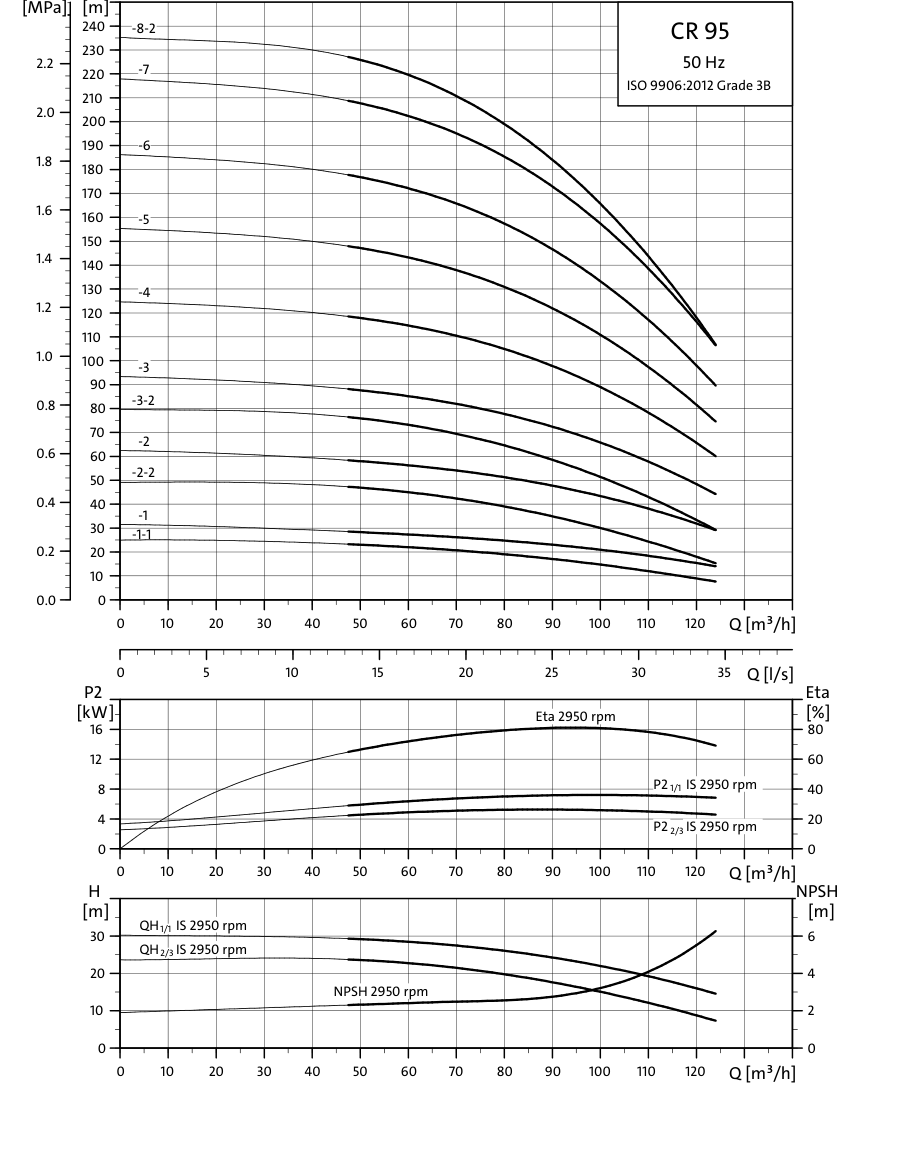

SINES Export - Grundfos CR 95 - performance curves 50 Hz

Performance curves for the CR 95 — 50 Hz, 2950 rpm, ISO 9906:2012 Grade 3B (source: Grundfos professional price list 2026). Maximum TDH: 240 m — maximum flow rate: 120 m³/h.

SINES Export - Grundfos CR, CRI, CRN - range performance envelope (50 Hz)

Performance range - GRUNDFOS CR, CRI, CRN vertical multistage pumps - Source: http://www.grundfos.com/

References & article codes

Grundfos CR 95 range — three-phase vertical multistage pumps 380-415 V, 50 Hz, AISI 304 stainless steel hydraulics, cast-iron head and base, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code	Designation	P2 [kW]	In [A]	Connection
93388615	CR 95-1-1	5.5	12.2	DN100 flanges
93388616	CR 95-1	7.5	16	DN100 flanges
93390522	CR 95-2-2	11	22.2	DN100 flanges
93390542	CR 95-2	15	30.5	DN100 flanges
93390548	CR 95-3-2	18.5	39.5	DN100 flanges
93436060	CR 95-3	22	41.8	DN100 flanges
93435277	CR 95-4	30	56.1	DN100 flanges
93435280	CR 95-5	37	69.3	DN100 flanges
93435282	CR 95-6	45	84.7	DN100 flanges
93435285	CR 95-7	55	103.4	DN100 flanges
93435287	CR 95-8-2	55	103.4	DN100 flanges
