SINES Export - Grundfos CR 64 vertical multistage pump


GRUNDFOS CR 64


  • Categorie : Surface pumps

Max. TDH: 230 m - Max. flow rate: 85 m3/h

The CR 64 is a Grundfos vertical multistage centrifugal pump with an in-line design. Cast-iron pump head and base, AISI 304 stainless steel hydraulics, maintenance-free cartridge mechanical seal. Three-phase IE3 motor from 4 to 45 kW. 22 stage variants to cover every duty point. DN 100 flange connection.


CR 64-1-1

4 kW

 CR 64-1

5.5 kW

 CR 64-2-2

7.5 kW
CR 64-2-1

11 kW

 CR 64-2

11 kW

 CR 64-3-2

15 kW
CR 64-3-1

15 kW

 CR 64-3

18.5 kW

 CR 64-4-2

18.5 kW
CR 64-4-1

22 kW

 CR 64-4

22 kW

 CR 64-5-2

30 kW
CR 64-5-1

30 kW

 CR 64-5

30 kW

 CR 64-6-2

30 kW
CR 64-6-1

37 kW

 CR 64-6

37 kW

 CR 64-7-2

37 kW
CR 64-7-1

37 kW

 CR 64-7

45 kW

 CR 64-8-2

45 kW
CR 64-8-1

45 kW


Official Grundfos distributor, wholesaler and exporter worldwide

The Grundfos CR range consists of vertical multistage in-line centrifugal pumps: suction and discharge ports are on the same level for a compact footprint. The CR 64 covers a flow rate up to 85 m³/h (nominal 64 m³/h) and a TDH up to 230 m, with a maximum efficiency of 80%.

Construction: cast-iron pump body and base, hydraulics (impellers, chambers, sleeve) in EN 1.4301 (AISI 304) stainless steel. Balanced, maintenance-free HQQE cartridge mechanical seal. Liquid temperature -30 to +120 °C (up to +180 °C on request), maximum operating pressure 22 bar.

High-efficiency three-phase IE3 motor, 4 to 45 kW (Grundfos MG up to 22 kW, Siemens above). CRE versions with integrated MGE frequency converter available on request, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation. DN 100 flange connection. 22 stage variants available (see table above) for precise matching to the duty point.

Official Grundfos distributor, SINES Export is the wholesaler and exporter specialised in Grundfos pumps for B2B customers worldwide. Our teams support installers, resellers and distributors on export markets (Africa, Middle East and beyond).

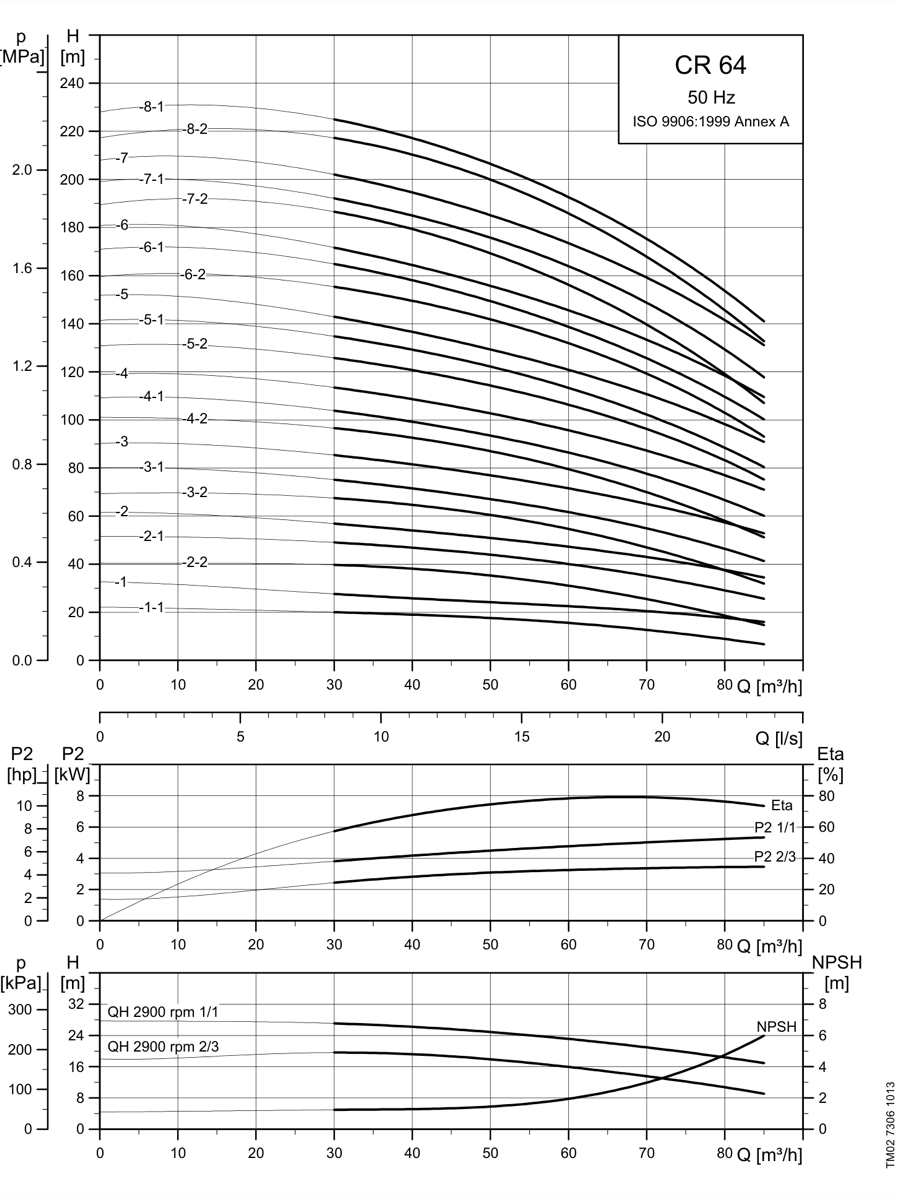

SINES Export - Grundfos CR 64 - performance curves 50 Hz

Performance curves for the CR 64 — 50 Hz, 2900 rpm, ISO 9906:1999 annex A (source: Grundfos technical literature). Maximum TDH: 230 m — maximum flow rate: 85 m³/h.



SINES Export - Grundfos CR, CRI, CRN - range performance envelope (50 Hz)

Performance range - GRUNDFOS CR, CRI, CRN vertical multistage pumps - Source: http://www.grundfos.com/



References & article codes

Grundfos CR 64 range — three-phase vertical multistage pumps 380-415 V, 50 Hz, AISI 304 stainless steel hydraulics, cast-iron head and base, HQQE mechanical seal. Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93392777CR 64-1-147.5DN100 flanges
93392778CR 64-15.511DN100 flanges
93392779CR 64-2-27.514.4DN100 flanges
93392781CR 64-21120.8DN100 flanges
93392780CR 64-2-11120.8DN100 flanges
93392783CR 64-3-11528.5DN100 flanges
93392782CR 64-3-21528.5DN100 flanges
93392784CR 64-318.537DN100 flanges
93392785CR 64-4-218.537DN100 flanges
93436123CR 64-42238DN100 flanges
93436122CR 64-4-12238DN100 flanges
93435094CR 64-53051DN100 flanges
93435093CR 64-5-13051DN100 flanges
93435092CR 64-5-23051DN100 flanges
93435095CR 64-6-23051DN100 flanges
93435098CR 64-63763DN100 flanges
93435096CR 64-6-13763DN100 flanges
93435111CR 64-7-13763DN100 flanges
93435110CR 64-7-23763DN100 flanges
93435112CR 64-74577DN100 flanges
93435116CR 64-8-14577DN100 flanges
93435114CR 64-8-24577DN100 flanges
