GRUNDFOS CR 3


  • Categorie : Surface pumps

Max. lift: 240m - Max. flow rate: 4.5m3/h

Grundfos CR 3 pumps are vertical multistage centrifugal pumps with an in-line design, allowing installation in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimensions. Cast iron pump head and base, AISI 304 stainless steel hydraulics, maintenance-free cartridge mechanical seal. Three-phase IE3 motor from 0.37 to 3 kW. 23 stage variants to cover every duty point.


CR 3-2

0.37 kW

 CR 3-3

0.37 kW

 CR 3-4

0.37 kW
CR 3-5

0.37 kW

 CR 3-6

0.55 kW

 CR 3-7

0.55 kW
CR 3-8

0.75 kW

 CR 3-9

0.75 kW

 CR 3-10

0.75 kW
CR 3-11

1.1 kW

 CR 3-12

1.1 kW

 CR 3-13

1.1 kW
CR 3-15

1.1 kW

 CR 3-17

1.5 kW

 CR 3-19

1.5 kW
CR 3-21

2.2 kW

 CR 3-23

2.2 kW

 CR 3-25

2.2 kW
CR 3-27

2.2 kW

 CR 3-29

2.2 kW

 CR 3-31

3 kW
CR 3-33

3 kW

 CR 3-36

3 kW


Solar pumping systems for reliable Water Supply in Africa

The new generation of Grundfos CR pumps features a full range of sizes and limitless scope for combinations to suit your specific needs.

The basic CR pump range is available in four different materials: cast iron, two grades of stainless steel and titanium. Thirteen flow sizes are capable of producing up to 180 m3/h at 50 bar, with a variety of shaft seals, rubber materials and supply voltages.

A CR pump consists of two main components: the motor and the pump unit. The motor is a Grundfos motor designed to EN standards. The pump unit consists of optimised hydraulics, various types of connections, a sleeve, a pump head and various other parts.

Grundfos CR pumps are vertical multistage centrifugal pumps. : A centrifugal pump has a stationary part and a rotating part. the rotating part is called the impeller. the impeller has a number of vanes which force the water to rotate and creates flow. The stationary part is called the pump housing, or pump bowl. the bowl also has a number of vanes called guide vanes. their function is to stop the water’s rotation and to convert the energy in the rotation to pressure.

The CR is renowned for its reliability. And rightly so. The CR design has all the durability that customers expect from a high-quality multistage pump – and then some. CR have unique features to ensure unsurpassed reliability: dry-running protection, a unique cartridge seal, and a fulltitanium variant.

CR, CRI and CRN pumps are fitted with a totally enclosed, fan-cooled, 2-pole Grundfos standard motor with principal dimensions to EN standards.


SINES - Grundfos CR - reference designation

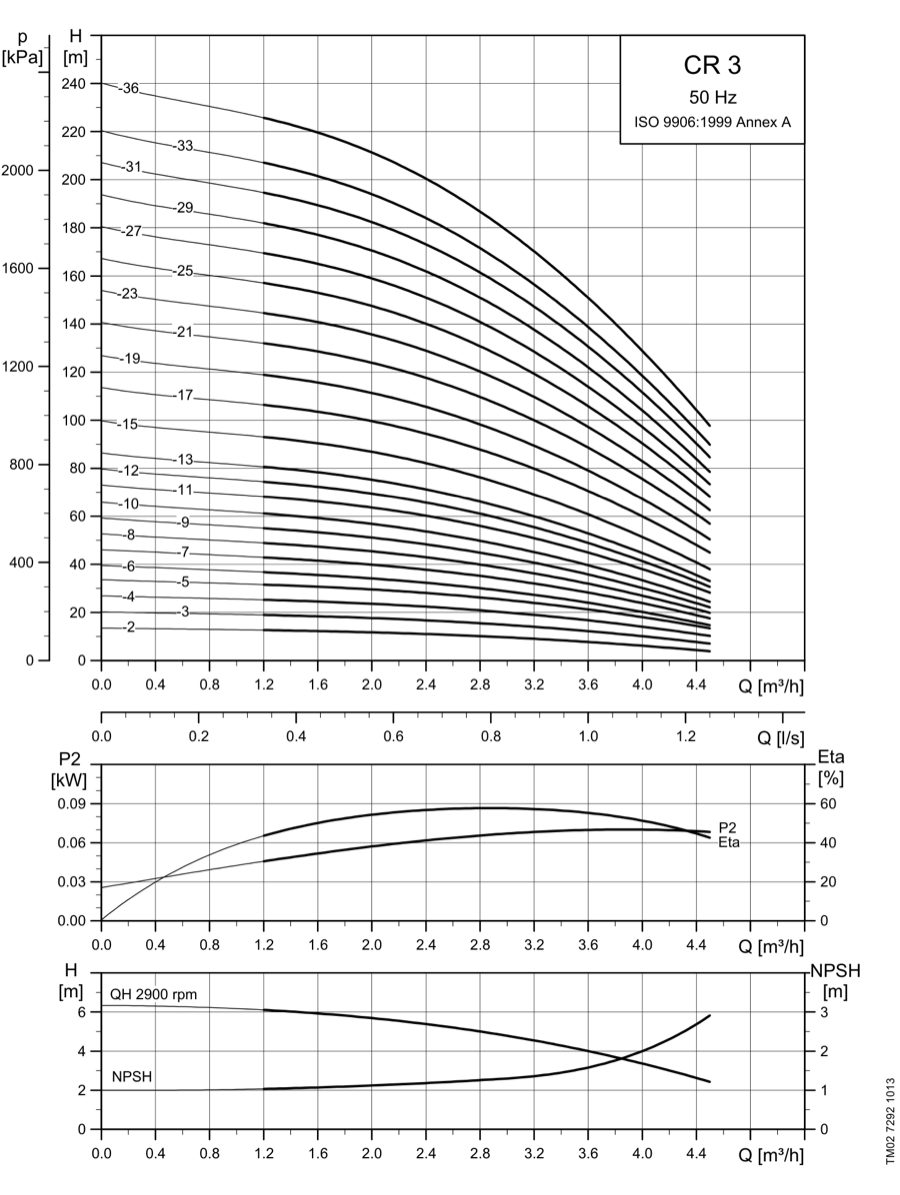

SINES - Grundfos CR 3 - performance curve

SINES - surface pumps - Grundfos CR

Performance range - GRUNDFOS CR Surface pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CR 3 range — vertical multistage centrifugal pumps, three-phase 380-415 V / 50 Hz, AISI 304 stainless steel hydraulics, cast iron pump head and base, HQQE mechanical seal. Single-phase 230 V versions, Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93390998CR 3-20.371Oval flanges Rp 1
93391440CR 3-20.371Flanges DN25/DN32
93391010CR 3-30.371Oval flanges Rp 1
93391444CR 3-30.371Flanges DN25/DN32
93391012CR 3-40.371Oval flanges Rp 1
93391448CR 3-40.371Flanges DN25/DN32
93391014CR 3-50.371Oval flanges Rp 1
93391452CR 3-50.371Flanges DN25/DN32
93391017CR 3-60.551.3Oval flanges Rp 1
93391456CR 3-60.551.3Flanges DN25/DN32
93391030CR 3-70.551.3Oval flanges Rp 1
93391460CR 3-70.551.3Flanges DN25/DN32
93391032CR 3-80.751.7Oval flanges Rp 1
93391464CR 3-80.751.7Flanges DN25/DN32
93391035CR 3-90.751.7Oval flanges Rp 1
93391468CR 3-90.751.7Flanges DN25/DN32
93391038CR 3-100.751.7Oval flanges Rp 1
93391472CR 3-100.751.7Flanges DN25/DN32
93391041CR 3-111.12.4Oval flanges Rp 1
93391477CR 3-111.12.4Flanges DN25/DN32
93391044CR 3-121.12.4Oval flanges Rp 1
93391480CR 3-121.12.4Flanges DN25/DN32
93391045CR 3-131.12.4Oval flanges Rp 1
93391483CR 3-131.12.4Flanges DN25/DN32
93391048CR 3-151.12.4Oval flanges Rp 1
93391486CR 3-151.12.4Flanges DN25/DN32
93391061CR 3-171.53.3Oval flanges Rp 1
93391489CR 3-171.53.3Flanges DN25/DN32
93391064CR 3-191.53.3Oval flanges Rp 1
93391502CR 3-191.53.3Flanges DN25/DN32
93391065CR 3-212.24.5Oval flanges Rp 1
93391504CR 3-212.24.5Flanges DN25/DN32
93391068CR 3-232.24.5Oval flanges Rp 1
93391507CR 3-232.24.5Flanges DN25/DN32
93391511CR 3-252.24.5Flanges DN25/DN32
93391514CR 3-272.24.5Flanges DN25/DN32
93391516CR 3-292.24.5Flanges DN25/DN32
93395712CR 3-3136Flanges DN25/DN32
93395713CR 3-3336Flanges DN25/DN32
93395714CR 3-3636Flanges DN25/DN32
