SINES - Grundfos CR 255 - vertical multistage centrifugal pump


GRUNDFOS CR 255


  • Categorie : Surface pumps

Max. TDH: 285m - Max. flow rate: 300m3/h

Grundfos CR 255 pumps are vertical multistage centrifugal pumps with an in-line design. Cast iron pump head and base, AISI 304 stainless steel hydraulics, maintenance-free cartridge mechanical seal. Three-phase IE4 motor from 30 to 200 kW. 11 stage variants to cover every duty point. DN 200 flange connection.


CR 255-1-1

30 kW

 CR 255-1

45 kW

 CR 255-2-2

55 kW
CR 255-2

75 kW

 CR 255-3-2

90 kW

 CR 255-3

110 kW
CR 255-4-2

132 kW

 CR 255-4

160 kW

 CR 255-5-3

160 kW
CR 255-5

200 kW

 CR 255-6-2

200 kW


Official Grundfos distributor - wholesale & export worldwide

The Grundfos CR range consists of vertical multistage centrifugal in-line pumps: suction and discharge ports at the same level for a compact footprint. The CR 255 covers a flow rate up to 300 m³/h (nominal 255 m³/h) and a TDH up to 285 m, with a maximum efficiency of 84%.

Construction: cast iron pump body and base, hydraulics (impellers, chambers, sleeve) in stainless steel EN 1.4301 (AISI 304). Balanced HQQE cartridge mechanical seal, maintenance-free. Liquid temperature -20 to +120 °C, operating pressure up to 40 bar depending on the model.

High-efficiency IE4 three-phase motor, from 30 to 200 kW (Grundfos MG up to 22 kW, Innomotics — formerly Siemens — above). Variable-speed control possible with an external Grundfos CUE frequency converter, for constant pressure and energy savings.

Applications: water boosting and distribution, industrial process water, washing plants, boiler feed, cooling and air conditioning, irrigation. DN 200 flange connection. 11 stage variants available (see table above) to match the duty point precisely.

Official Grundfos distributor, SINES Export is a wholesaler and exporter specialising in Grundfos pumps. Our teams support installers, resellers and distributors worldwide on a B2B basis.

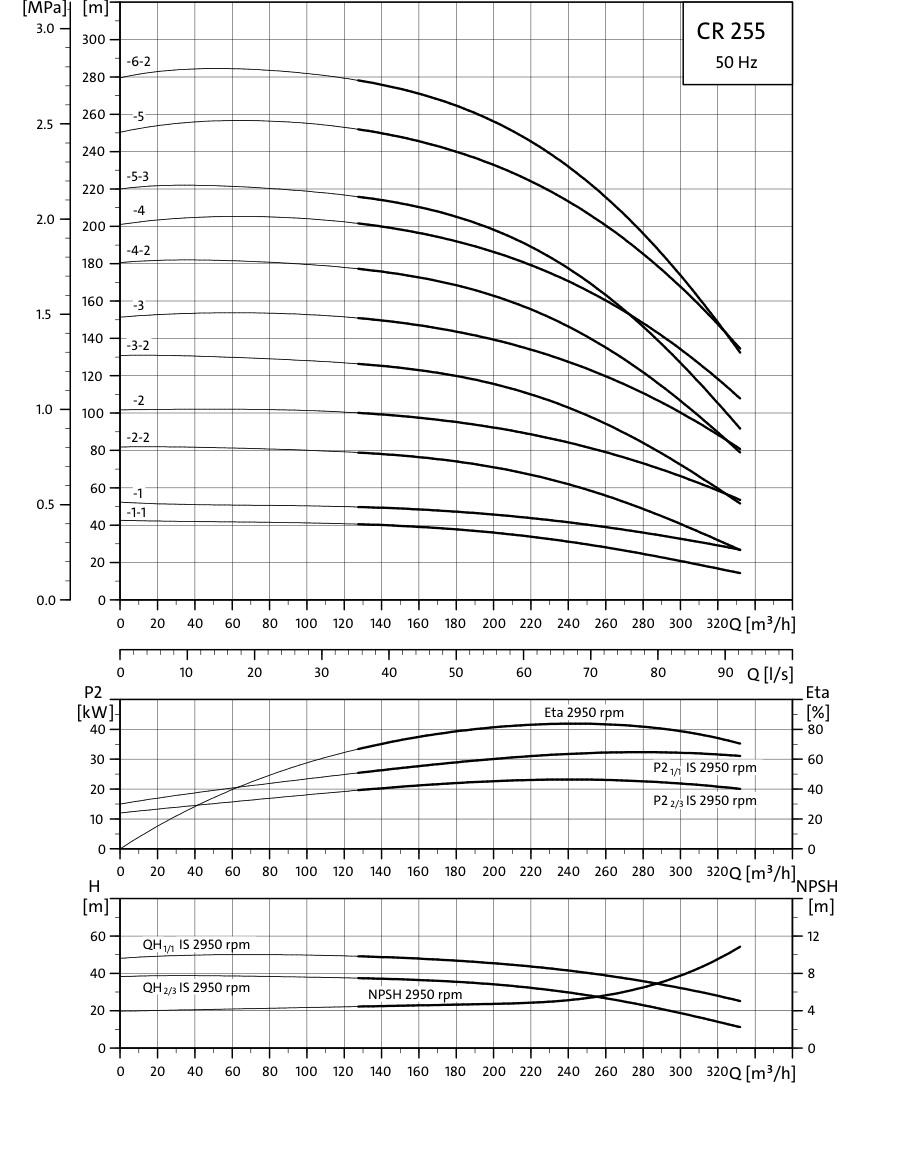

SINES - Grundfos CR 255 - performance curves 50 Hz

Performance curves of the CR 255 — 50 Hz, 2950 rpm, ISO 9906:2012 Grade 3B. Maximum TDH: 285 m — maximum flow rate: 300 m³/h.



SINES - surface pumps - Grundfos CR, CRI, CRN range

Performance range - GRUNDFOS CR, CRI, CRN vertical multistage pumps - Source: https://www.grundfos.com/




References & article codes

Grundfos CR 255 range — three-phase vertical multistage centrifugal pumps 380-415 V / 50 Hz, AISI 304 stainless steel hydraulics, cast iron head and base, HQQE mechanical seal. Viton (HQQV) seal and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93435323CR 255-1-13056.1Flanges DN200
93435324CR 255-14584.7Flanges DN200
93435325CR 255-2-255103.4Flanges DN200
92905930CR 255-275132Flanges DN200
92905931CR 255-3-290159Flanges DN200
92905932CR 255-3110193Flanges DN200
92905933CR 255-4-2132231Flanges DN200
92905934CR 255-4160278Flanges DN200
92905935CR 255-5-3160278Flanges DN200
92905936CR 255-5200347Flanges DN200
92905937CR 255-6-2200347Flanges DN200
