GRUNDFOS CR 1S


  • Categorie : Surface pumps

Max. lift: 205m - Max. flow rate: 1.1m3/h

Grundfos CR 1s pumps are vertical multistage centrifugal pumps with an in-line design, allowing installation in a horizontal one-pipe system where the suction and discharge ports are in the same horizontal plane and have the same pipe dimensions. Cast iron pump head and base, AISI 304 stainless steel hydraulics, maintenance-free cartridge mechanical seal. Three-phase IE3 motor from 0.37 to 1.1 kW. 22 stage variants to cover every duty point.


CR 1s-2

0.37 kW

 CR 1s-3

0.37 kW

 CR 1s-4

0.37 kW
CR 1s-5

0.37 kW

 CR 1s-6

0.37 kW

 CR 1s-7

0.37 kW
CR 1s-8

0.37 kW

 CR 1s-9

0.37 kW

 CR 1s-10

0.37 kW
CR 1s-11

0.37 kW

 CR 1s-12

0.37 kW

 CR 1s-13

0.37 kW
CR 1s-15

0.55 kW

 CR 1s-17

0.55 kW

 CR 1s-19

0.55 kW
CR 1s-21

0.75 kW

 CR 1s-23

0.75 kW

 CR 1s-25

0.75 kW
CR 1s-27

1.1 kW

 CR 1s-30

1.1 kW

 CR 1s-33

1.1 kW
CR 1s-36

1.1 kW


Solar pumping systems for reliable Water Supply in Africa

The new generation of Grundfos CR pumps features a full range of sizes and limitless scope for combinations to suit your specific needs.

The basic CR pump range is available in four different materials: cast iron, two grades of stainless steel and titanium. Thirteen flow sizes are capable of producing up to 180 m3/h at 50 bar, with a variety of shaft seals, rubber materials and supply voltages.

A CR pump consists of two main components: the motor and the pump unit. The motor is a Grundfos motor designed to EN standards. The pump unit consists of optimised hydraulics, various types of connections, a sleeve, a pump head and various other parts.

Grundfos CR pumps are vertical multistage centrifugal pumps. : A centrifugal pump has a stationary part and a rotating part. the rotating part is called the impeller. the impeller has a number of vanes which force the water to rotate and creates flow. The stationary part is called the pump housing, or pump bowl. the bowl also has a number of vanes called guide vanes. their function is to stop the water’s rotation and to convert the energy in the rotation to pressure.

The CR is renowned for its reliability. And rightly so. The CR design has all the durability that customers expect from a high-quality multistage pump – and then some. CR have unique features to ensure unsurpassed reliability: dry-running protection, a unique cartridge seal, and a fulltitanium variant.

CR, CRI and CRN pumps are fitted with a totally enclosed, fan-cooled, 2-pole Grundfos standard motor with principal dimensions to EN standards.


SINES - Grundfos CR - reference designation

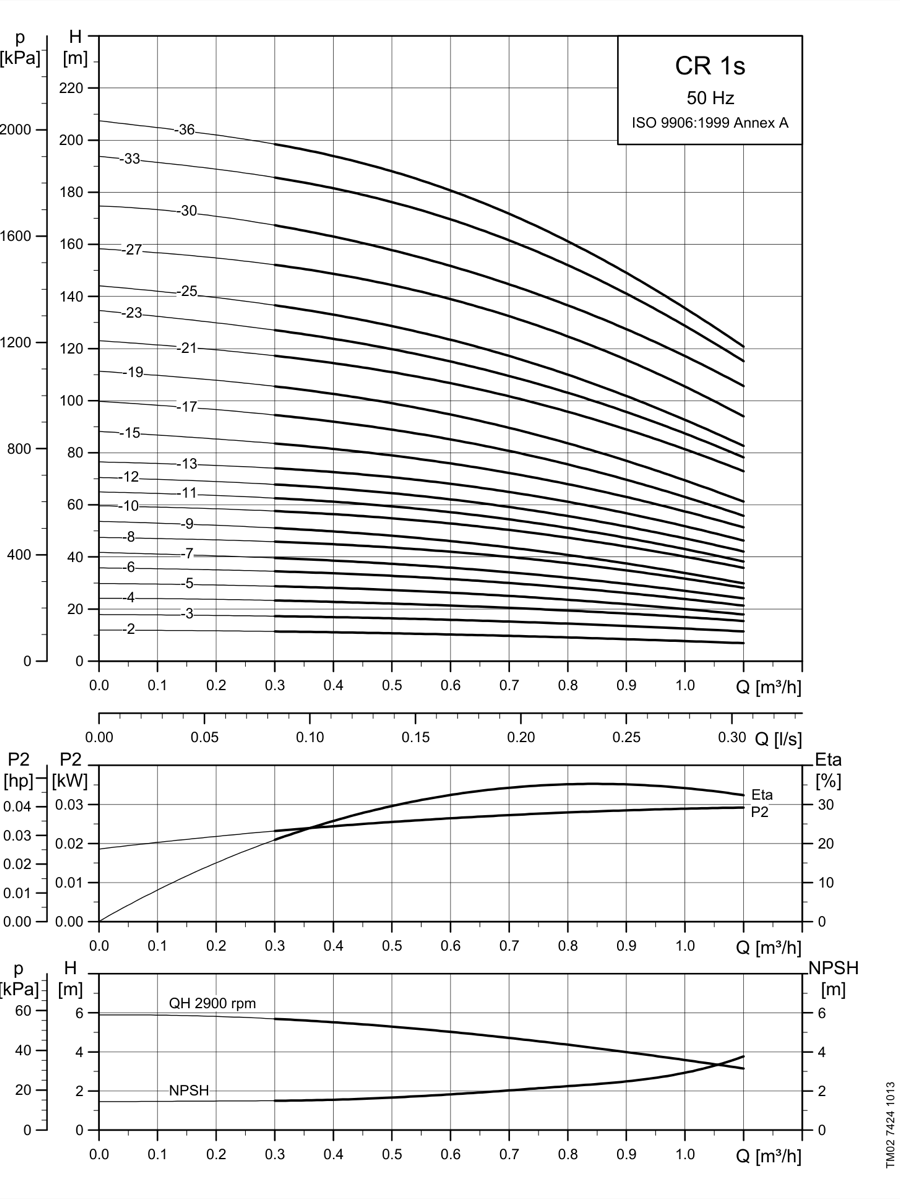

SINES - Grundfos CR 1s - performance curve

SINES - surface pumps - Grundfos CR

Performance range - GRUNDFOS CR Surface pumps - Source: http://www.grundfos.com/




References & article codes

Grundfos CR 1s range — vertical multistage centrifugal pumps, three-phase 380-415 V / 50 Hz, AISI 304 stainless steel hydraulics, cast iron pump head and base, HQQE mechanical seal. Single-phase 230 V versions, Viton seal (HQQV) and other variants on request. Price and availability on request.

Article code Designation P2 [kW] In [A] Connection
93388657CR 1s-20.371Oval flanges Rp 1
93391340CR 1s-20.371Flanges DN25/DN32
93390533CR 1s-30.371Oval flanges Rp 1
93391342CR 1s-30.371Flanges DN25/DN32
93390535CR 1s-40.371Oval flanges Rp 1
93391344CR 1s-40.371Flanges DN25/DN32
93390768CR 1s-50.371Oval flanges Rp 1
93391347CR 1s-50.371Flanges DN25/DN32
93390795CR 1s-60.371Oval flanges Rp 1
93391351CR 1s-60.371Flanges DN25/DN32
93390810CR 1s-70.371Oval flanges Rp 1
93391353CR 1s-70.371Flanges DN25/DN32
93390819CR 1s-80.371Oval flanges Rp 1
93391355CR 1s-80.371Flanges DN25/DN32
93390846CR 1s-90.371Oval flanges Rp 1
93391357CR 1s-90.371Flanges DN25/DN32
93390860CR 1s-100.371Oval flanges Rp 1
93391359CR 1s-100.371Flanges DN25/DN32
93390864CR 1s-110.371Oval flanges Rp 1
93391362CR 1s-110.371Flanges DN25/DN32
93390869CR 1s-120.371Oval flanges Rp 1
93391365CR 1s-120.371Flanges DN25/DN32
93390874CR 1s-130.371Oval flanges Rp 1
93391367CR 1s-130.371Flanges DN25/DN32
93390878CR 1s-150.551.3Oval flanges Rp 1
93391369CR 1s-150.551.3Flanges DN25/DN32
93390892CR 1s-170.551.3Oval flanges Rp 1
93391371CR 1s-170.551.3Flanges DN25/DN32
93390896CR 1s-190.551.3Oval flanges Rp 1
93391376CR 1s-190.551.3Flanges DN25/DN32
93388639CR 1s-210.751.7Oval flanges Rp 1
93396922CR 1s-210.751.7Flanges DN25/DN32
93390912CR 1s-230.751.7Oval flanges Rp 1
93396923CR 1s-230.751.7Flanges DN25/DN32
93390915CR 1s-250.751.7Oval flanges Rp 1
93396925CR 1s-250.751.7Flanges DN25/DN32
93397396CR 1s-271.12.4Oval flanges Rp 1
93396926CR 1s-271.12.4Flanges DN25/DN32
93396927CR 1s-301.12.4Flanges DN25/DN32
93396928CR 1s-331.12.4Flanges DN25/DN32
93396929CR 1s-361.12.4Flanges DN25/DN32
