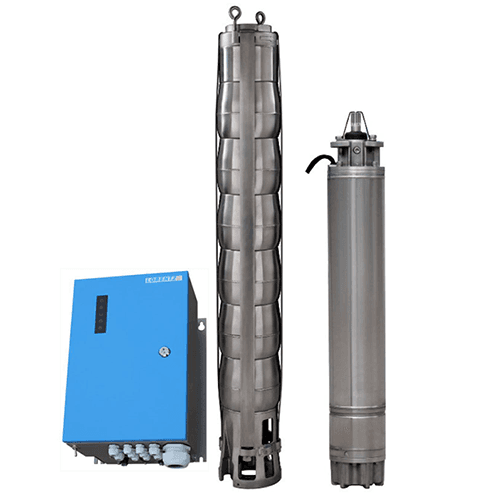

SINES - Lorentz - submersible solar pump


Solar Submersible pumps LORENTZ PSk2-X


  • Category: Submersible Solar Pumps

PSk2 is an advanced solar water pumping system designed specifically to use the power of the sun to move water

PSk2 is being used to transform unused land into productive farms.

PSK2-7
C-SJ8-30

Max. TDH: 160 m
Max. flow rate: 13 m³/h

 PSK2-7
C-SJ12-15

Max. TDH: 100 m
Max. flow rate: 23 m³/h

 PSK2-7
C-SJ17-9

Max. TDH: 80 m
Max. flow rate: 25 m³/h
PSK2-7
C-SJ30-6

Max. TDH: 50 m
Max. flow rate: 42 m³/h

 PSK2-7
C-SJ42-3

Max. TDH: 30 m
Max. flow rate: 76 m³/h

 PSK2-7
C-SJ95-1

Max. TDH: 14 m
Max. flow rate: 136 m³/h
PSK2-9
C-SJ8-44

Max. TDH: 180 m
Max. flow rate: 12 m³/h

 PSK2-9
C-SJ17-11

Max. TDH: 90 m
Max. flow rate: 25 m³/h

 PSK2-9
C-SJ30-7

Max. TDH: 50 m
Max. flow rate: 39 m³/h
PSK2-9
C-SJ17-18

Max. TDH: 140 m
Max. flow rate: 22 m³/h

 PSK2-15
C-SJ30-12

Max. TDH: 100 m
Max. flow rate: 39 m³/h

 PSK2-15
C-SJ42-6

Max. TDH: 50 m
Max. flow rate: 65 m³/h
PSK2-15
C-SJ75-3

Max. TDH: 35 m
Max. flow rate: 126 m³/h

 PSK2-15
C-SJ95-2

Max. TDH: 25 m
Max. flow rate: 114 m³/h

 PSK2-15
C-SJ150-1

Max. TDH: 16 m
Max. flow rate: 235 m³/h
PSK2-21
C-SJ8-50

Max. TDH: 280 m
Max. flow rate: 12 m³/h

 PSK2-21
C-SJ17-26

Max. TDH: 220 m
Max. flow rate: 22 m³/h

 PSK2-21
C-SJ30-16

Max. TDH: 120 m
Max. flow rate: 43 m³/h
PSK2-21
C-SJ42-10

Max. TDH: 90 m
Max. flow rate: 62 m³/h

 PSK2-21
C-SJ75-4

Max. TDH: 55 m
Max. flow rate: 112 m³/h

 PSK2-21
C-SJ120-2-1

Max. TDH: 30 m
Max. flow rate: 218 m³/h
PSK2-25
C-SJ30-22

Max. TDH: 200 m
Max. flow rate: 38 m³/h

 PSK2-25
C-SJ42-12

Max. TDH: 90 m
Max. flow rate: 66 m³/h

 PSK2-25
C-SJ95-4

Max. TDH: 60 m
Max. flow rate: 112 m³/h
PSK2-25
C-SJ150-2-2

Max. TDH: 35 m
Max. flow rate: 228 m³/h


Also available: Solar pumps systems Lorentz PSK2-40 et PSK2-100 for large installations

PSk2 controllers are available from 7 to 100 kw. The controller includes the functions of a highly efficient digital inverter, a variable speed drive, all the inputs you will ever need, data logging plus intelligent control over the whole system to give you the most water possible.

PSk2 6” to 10” submersible multistage pumps perform equally well in irrigation projects and for wide area drinking water applications where they reliably meet the most demanding requirements. All LORENTZ pumps are pre configured in our PumpScanner App with a simple 3 click setup

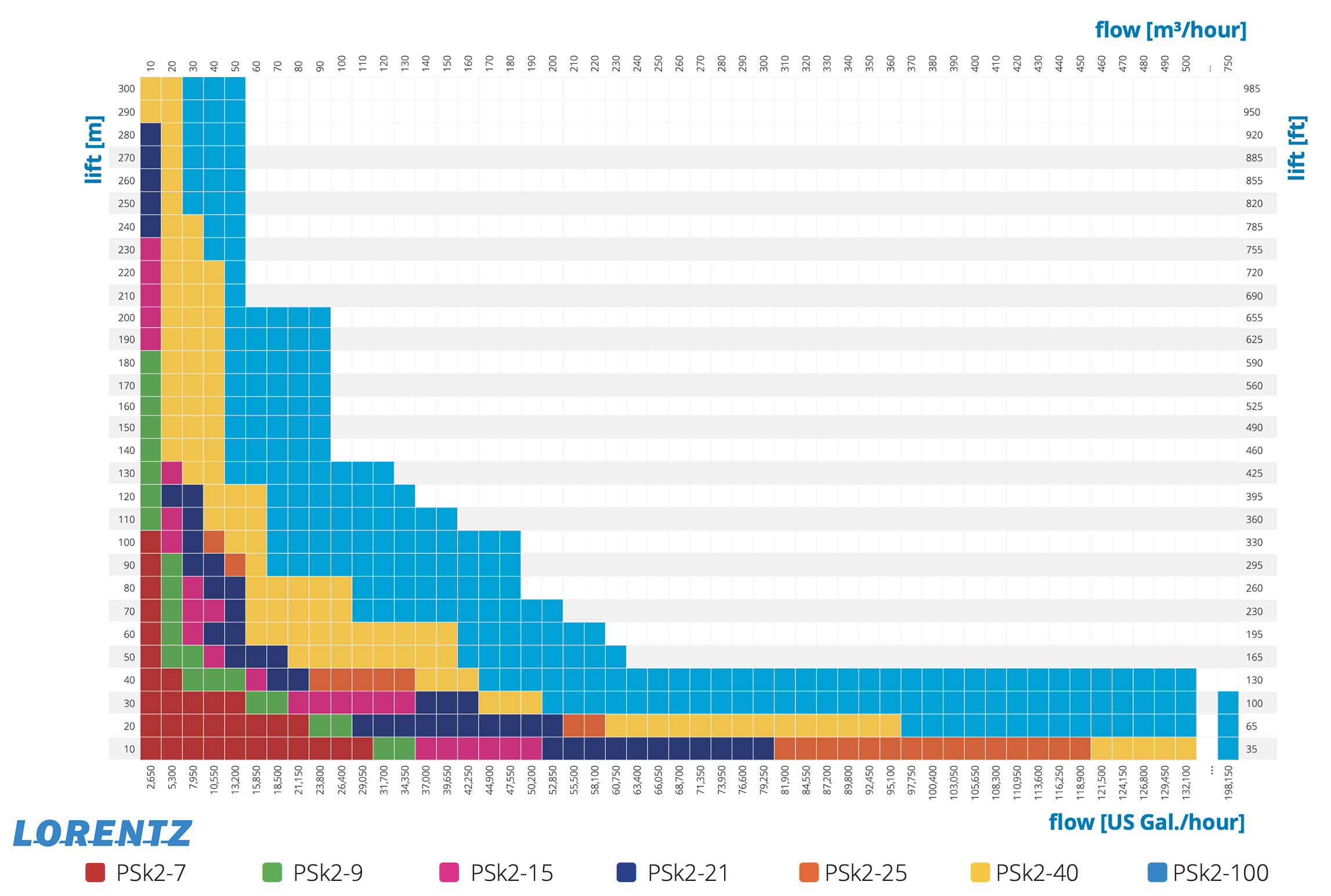

SINES - Lorentz - PSK2 pumps performance curves


PSk2 has eight sensor inputs that allow analogue and digital sensors to be connected. This combination of sensors with the powerful inbuilt software applications allows for full pump control and water specific applications.

The system also has an inbuilt Sun Sensor which measures the available irradiation and then makes decisions of what to do based on the available power. The Sun Sensor also avoids unnecessary stop start cycles which increase pump wear.

PK2k systems provide water into irrigation systems all around the world. Drip, sprinkler, pivot or flood irrigation methods are all fully supported using this system. Very high flows and high pressures can be achieved allowing almost any existing irrigation system can be converted to solar power without replacement.


SINES - Lorentz - submersible solar pump

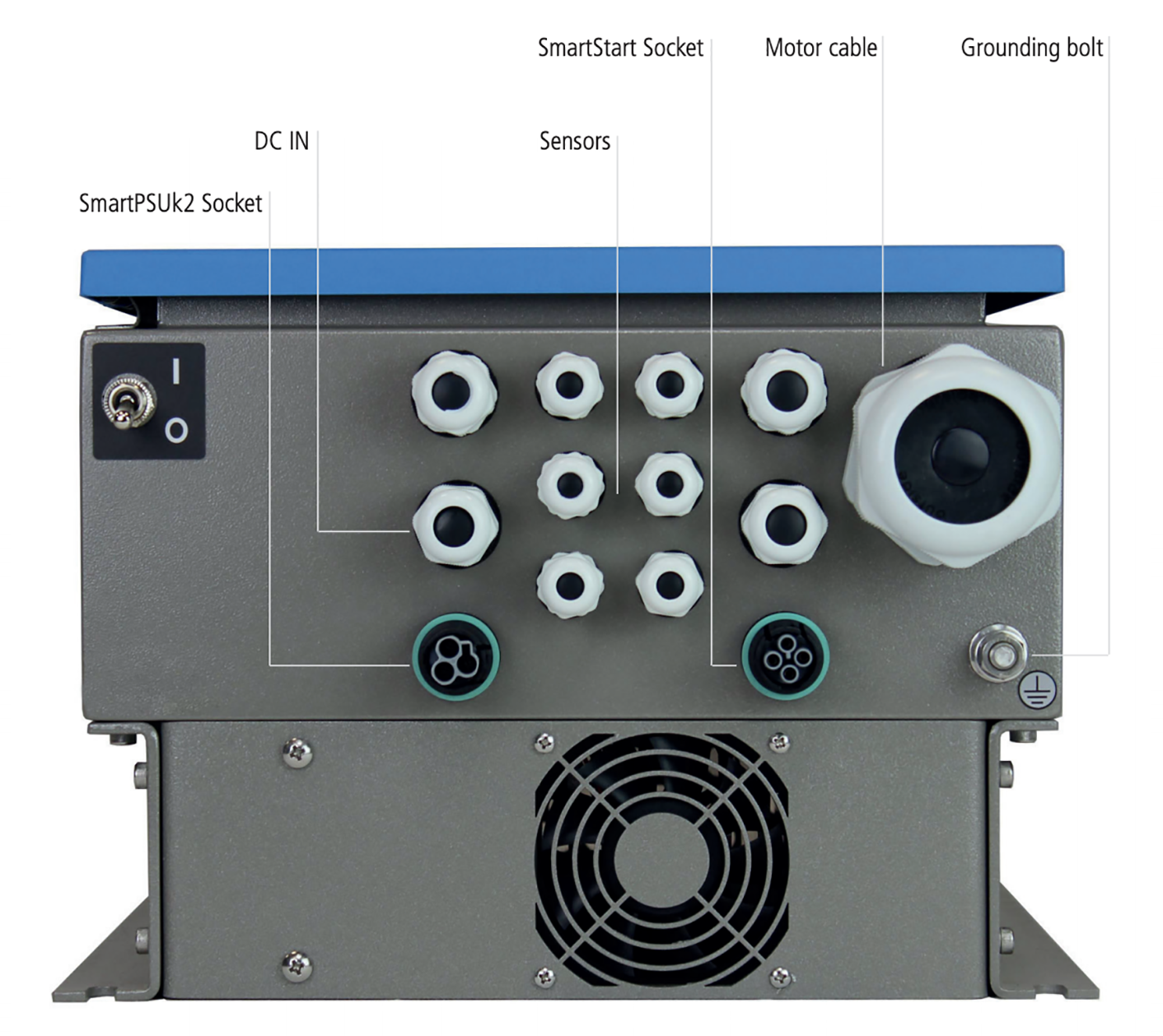

Cable entries and external sockets - source: https://www.lorentz.de/

SINES - Lorentz - submersible solar pump

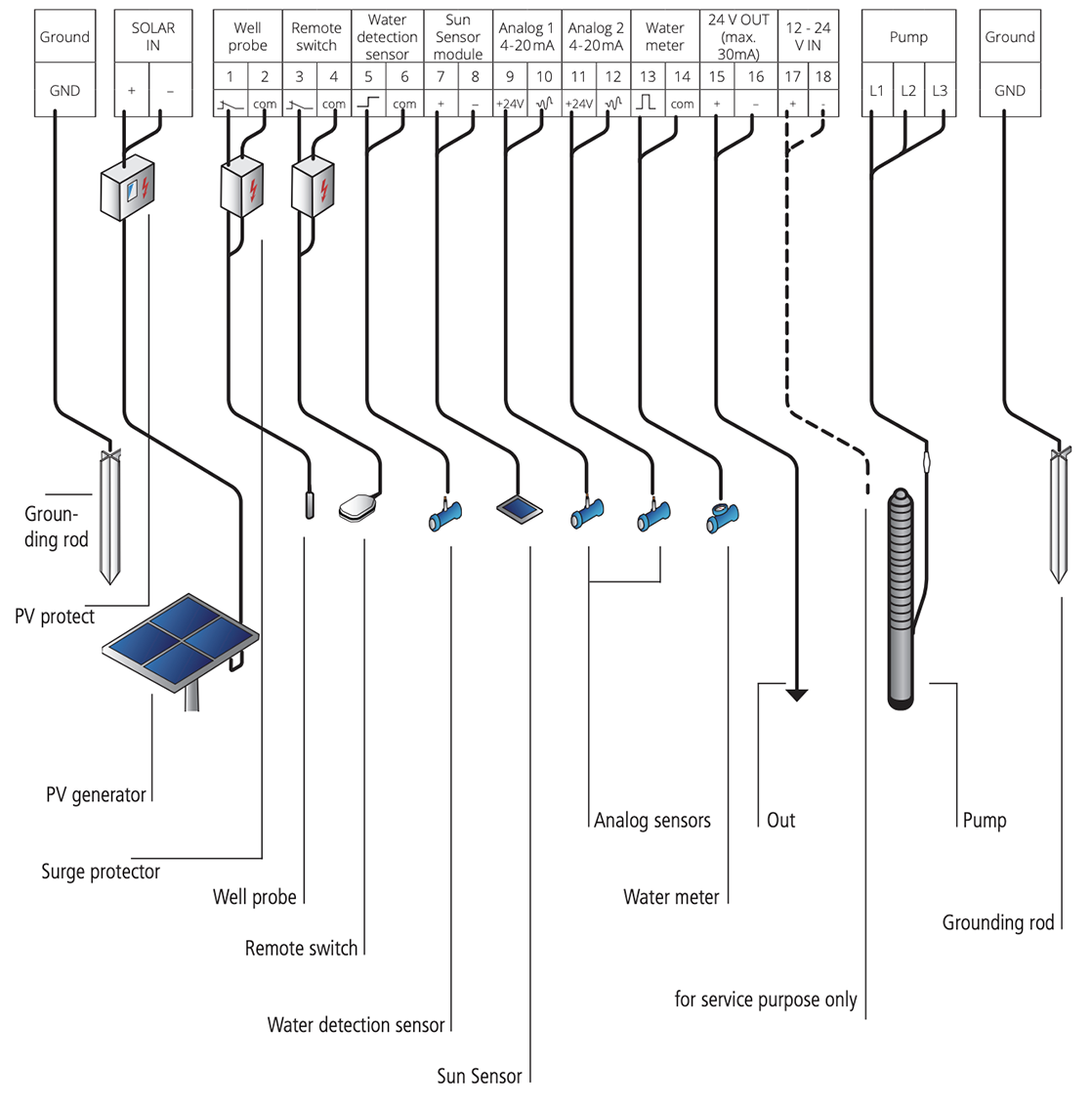

Terminal wiring example - source: https://www.lorentz.de/
