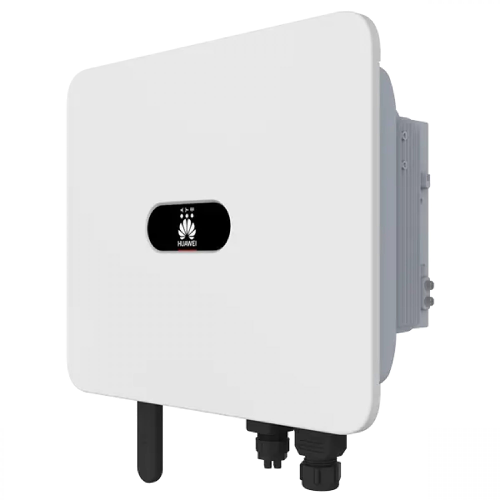

SINES - Huawei SUN2000 MB0 hybrid inverter


Huawei SUN2000
12-25K-MB0


  • Category: Photovoltaic hybrid inverter

Three-phase hybrid inverter "Smart Energy Controller" from 12 to 25 kW, storage-ready (2 battery inputs compatible with LUNA2000), with backup power supply function and AFCI anti-arc protection.


SUN2000-MB0 range — three-phase hybrid inverter, battery-ready
SUN2000-12K-MB0

12 kW

 SUN2000-15K-MB0

15 kW

 SUN2000-17K-MB0

17 kW
SUN2000-20K-MB0

20 kW

 SUN2000-25K-MB0

25 kW

 Battery

LUNA2000
2 MPPT · 4 PV inputs · backup function · IP66 · AFCI
B2B pricing — distributor, wholesaler and worldwide export

The Huawei SUN2000-(12K-25K)-MB0, or "Smart Energy Controller", is a three-phase hybrid photovoltaic inverter, storage-ready. It converts the direct current from the panels into alternating current and can be paired with Huawei LUNA2000 batteries for self-consumption and backup power supply. Available in 12, 15, 17, 20 and 25 kW, it has 2 MPPT trackers (4 PV inputs) and 2 battery terminals.


Main features:


  • Active safety: intelligent AFCI anti-arc protection, residual current monitoring (RCMU), type II DC and AC surge arresters.
  • Battery-ready: 2 battery terminals, compatible with LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-S1 (up to 4 batteries per inverter).
  • Backup: automatic backup power supply in the event of a grid outage — an asset for unstable grids (Africa export).
  • High efficiency: up to 98.4 %; production gain possible up to 30 % with optimisers.
  • Robust: IP66, range -25°C to +60°C, intelligent air cooling, 21 kg.
  • Communication: RS485, built-in WLAN, optional WLAN-FE or 4G dongle, FusionSolar supervision.


Technical specifications:


  • Models: SUN2000-12K / 15K / 17K / 20K / 25K-MB0
  • Rated AC power: 12 / 15 / 17 / 20 / 25 kW
  • Max. apparent power: 13.2 / 16.5 / 18.7 / 22 / 27.5 kVA
  • Max. PV input voltage: 1100 V — MPPT range 200 to 1000 V
  • Number of MPPT / PV inputs: 2 / 4
  • Battery: 2 terminals, range 600–980 V, max. charge 21 kW (1 string) / 25 kW (2 strings), discharge 13.2 to 25 kW depending on model
  • Output: 220/380, 230/400, 240/415 V — 3W/N+PE — 50/60 Hz — THD < 3 %
  • Backup (off-grid): 8300 VA rated, 9130 VA max.
  • Dimensions / weight: 546 × 460 × 228 mm — 21 kg
  • Protection rating: IP66 — paralleling of up to 3 inverters

As a Huawei distributor, SINES offers the SUN2000-MB0 and LUNA2000 batteries to installers and project developers, worldwide on export. Contact our team or request a quote on our products page.

The SUN2000-MB0 integrates into the Huawei FusionSolar ecosystem: pairing with LUNA2000 batteries, energy management, remote supervision and commissioning via the FusionSolar application. Compatible with the Smart Dongle, SmartLogger, SmartAssistant and SmartGuard grid modes, and compliant with the main grid codes (VDE-AR-N-4105/4110, EN50549, G99, NRS 097-2-1, IEC 61727, etc.).

For sizing, supply and export logistics, contact our team or request a quote on our products page.
