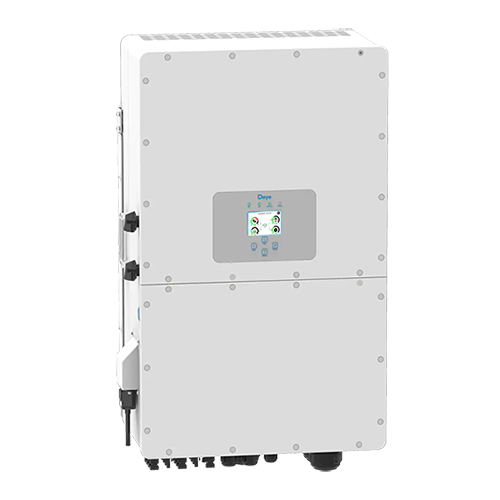

DEYE Hybrid Inverter SUN HP3
The DEYE SUN HP3 is a high-power three-phase hybrid inverter range covering rated power from 6 kW up to 50 kW and designed for use with high-voltage (HV) batteries. With a DC/AC ratio of 1.3, the platform reduces the initial investment while delivering high power density, making it a cost-effective choice for self-consumption, backup power and hybrid energy systems.
This versatile inverter supports asymmetric three-phase output and integrates multiple communication ports — two CAN ports and one RS485 port for the BMS, an RS232 port for remote control and a DRM port — for a highly adaptable system. A remote shutdown function, accessible through an intelligent monitoring platform, ensures an immediate response in the event of a fault while simplifying remote parameter management and firmware updates.
The SUN HP3 series allows up to 10 units in parallel for on-grid or off-grid operation and supports multiple batteries connected in parallel. Combined with high-voltage storage and six programmable charge and discharge periods, it maximises energy efficiency and supports the use of diesel generator power.
Whether upgrading an existing solar installation or maximising the energy output of each phase, the DEYE SUN HP3 hybrid inverters offer a durable, high-performance solution. Compatible with Pylontech Force H1/H2 and BYD HV batteries.
Models & references
| Reference | Phase | MPPT | Rated power |
|---|---|---|---|
| SUN-6K-SG01HP3-EU-AM2 | 3~ | 2 MPPT | 6000W |
| SUN-8K-SG01HP3-EU-AM2 | 3~ | 2 MPPT | 8000W |
| SUN-10K-SG01HP3-EU-AM2 | 3~ | 2 MPPT | 10000W |
| SUN-12K-SG01HP3-EU-AM2 | 3~ | 2 MPPT | 12000W |
| SUN-15K-SG01HP3-EU-AM2 | 3~ | 2 MPPT | 15000W |
| SUN-20K-SG01HP3-EU-AM2 | 3~ | 2 MPPT | 20000W |
| SUN-30K-SG01HP3-EU-BM3 | 3~ | 2 MPPT | 25000W |
| SUN-30K-SG01HP3-EU-BM3 | 3~ | 3 MPPT | 30000W |
| SUN-40K-SG01HP3-EU-BM4 | 3~ | 4 MPPT | 40000W |
| SUN-50K-SG01HP3-EU-BM4 | 3~ | 4 MPPT | 50000W |
